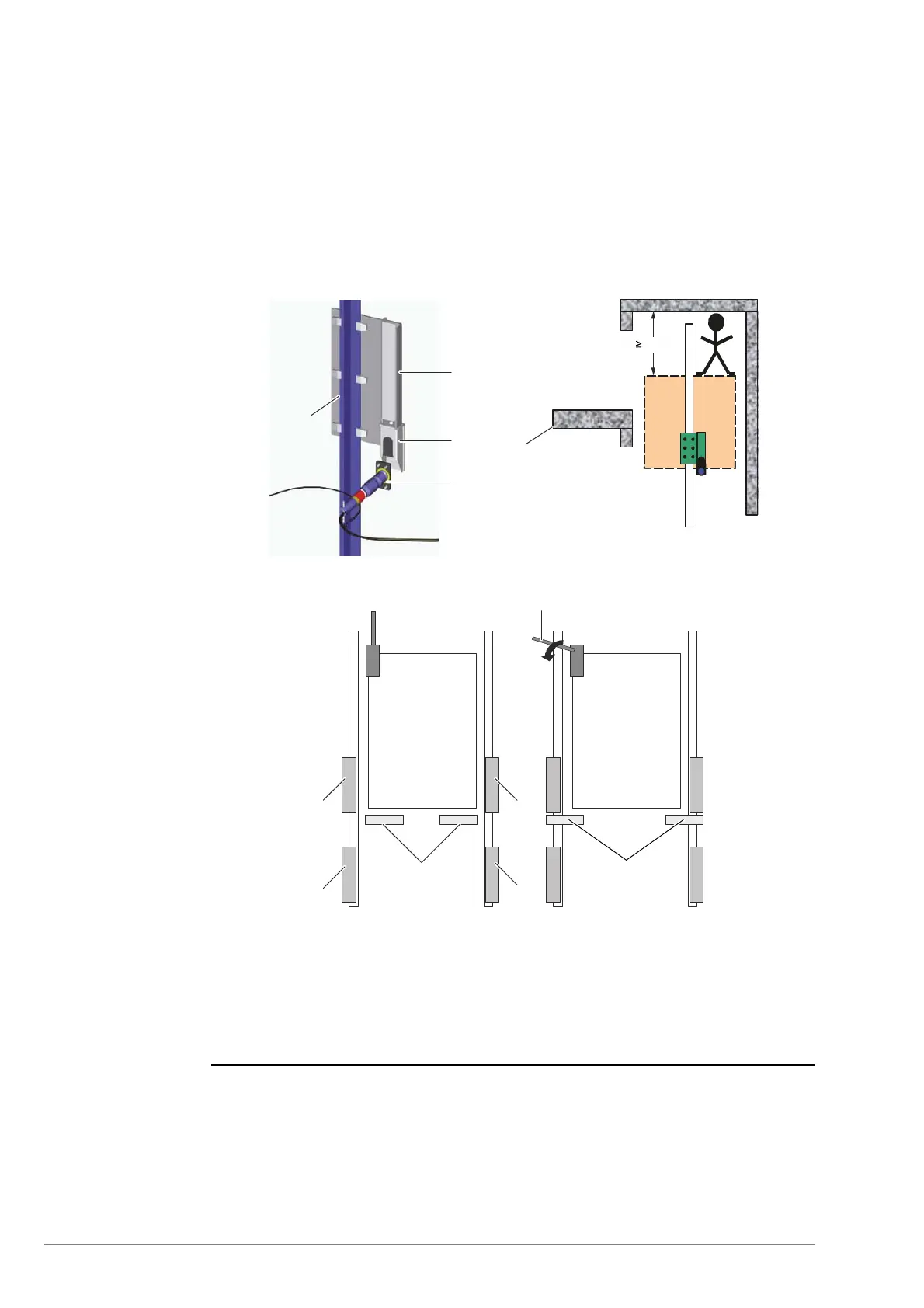

– The mechanical system with TSD21 has two metal bolts (1) located under the car on
the left and right sides.
– 2 stoppers (2) fixed to the car rails in a defined position (3) in the headroom and/or
two stoppers fixed on the car rails in a defined position in the pit.
– Each stopper includes a buffer (4) to soften the pin impact.
– A TSD21 lever (5) located on the car
– Roof is used to move the pin out of the car footprint (6).
[39340; 23.08.2017]
A Normal mode
1 Metal bolt
2 Stopper
3 Option in case of low pit or low
pit and head only
B Inspection mode
4Buffer
5 TSD21 lever
6 Bolts expanded (generating
safety space in end positions)
1
A
B
2
3
2
2
3
3
3
4
5
6
1
