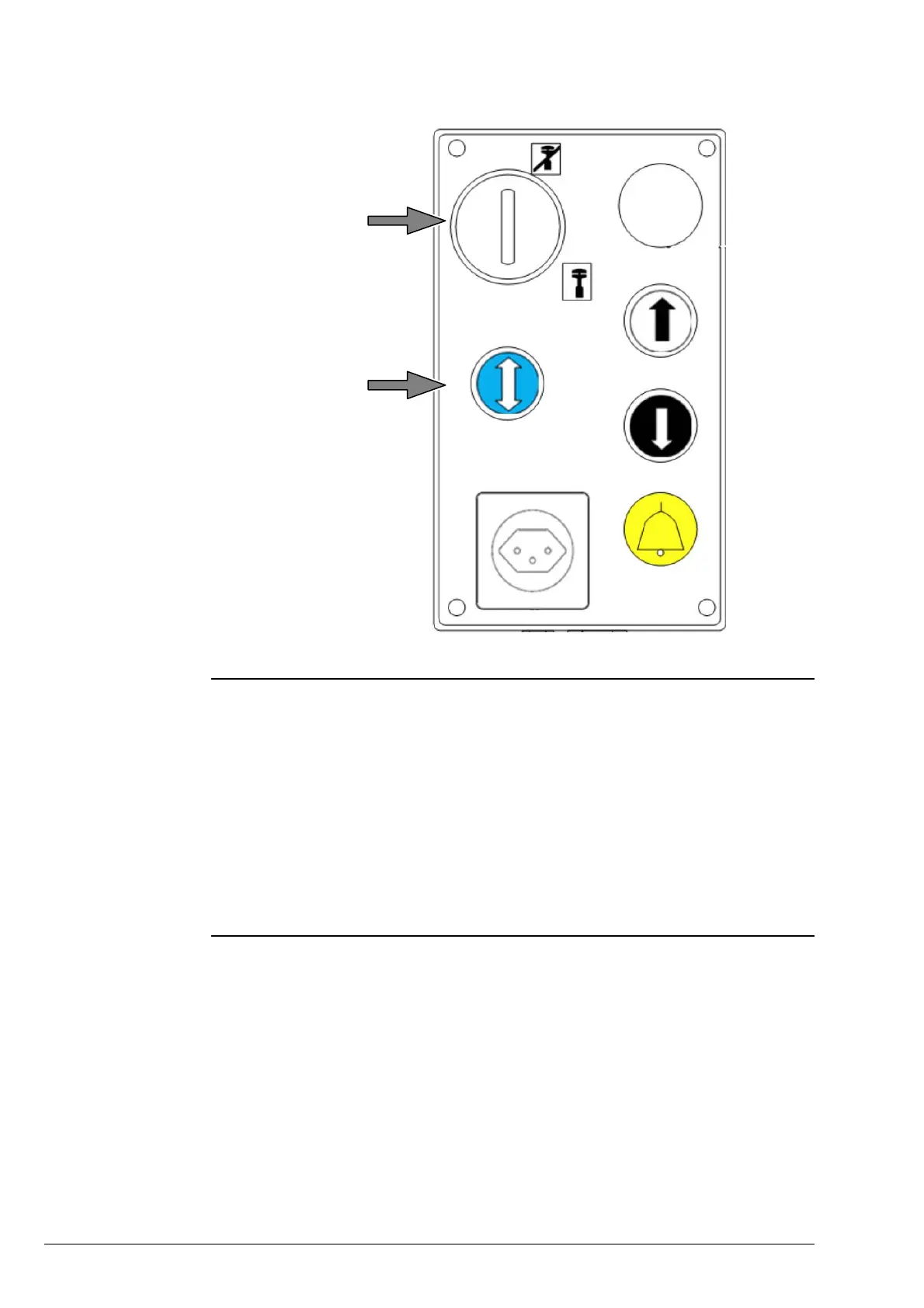

Inspection Panel Top of Car REC without TSD21 [604620_035; 07.12.2015]
Step 4 Deactivating the Inspection Mode
Deactivation and exit the car roof:
– Press the top of car stop button (JHC)
– Switch JREC to "Normal"
– If necessary, retract/fold the balustrade
– Deactivate the TSD21 lever
– Exit the top of car
– Release the top of car stop switch (JHC) only after having exited the car roof
– Close the landing door giving access to the top of car.
Step 5 Reset of TSD21 system
The reset of the safety system is only possible by pressing the reset button (DRZS)
which is located in the control cabinet.
Preconditions for the reset are:
– Landing doors are closed and locked (KTS/KV)
– The movable bolts are in the inactive position (KSR-A)
– Inspection operation is not active anymore (JREC/JRESG)
– No stop switch is active (JHC, JHSG, JHM, …)
– The balustrade (if any) is retracted (KBC-A/KFB).
