Square Corner Deadlatch
16-203
Round Corner Deadlatch
16-204
2³⁄₈”or 2³⁄₄”
1” x 2¹⁄₄” Square corner* 16-203 ⁷⁄₈”
1” x 2¹⁄₄”, ¹⁄₄” Radius round corner 16-204 ⁷⁄₈”
5˝ 1” x 2¹⁄₄” Square corner* 16-132 ⁷⁄₈”
Deadlatches
Backset Faceplate Description Number
Hsg
Dia
*Latches include A501-878 faceplate adapter for 1¹⁄₈” face.
Latches

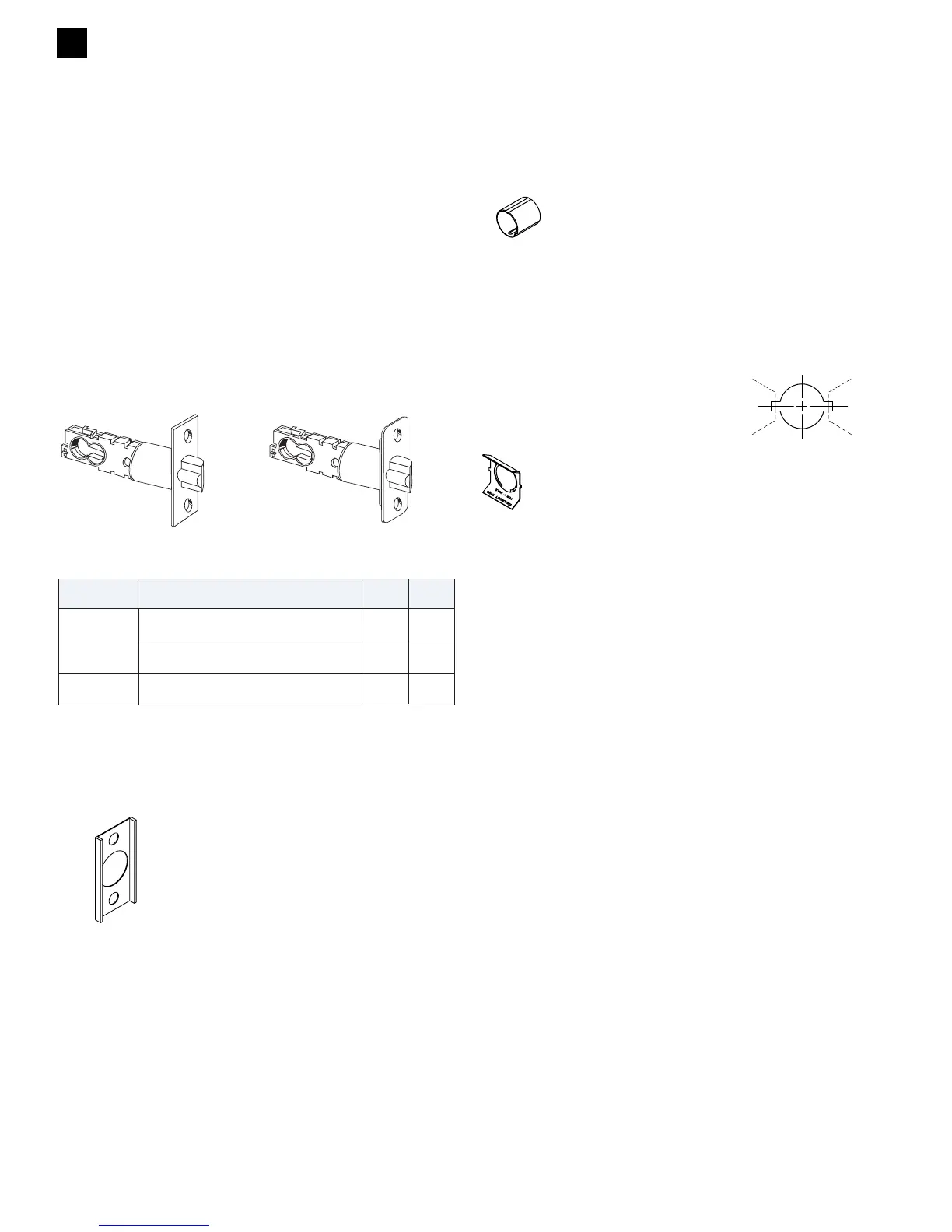

The standard universal backset deadlatch fits both 2⅜" (60 mm)
and 2¾" (70 mm) backsets. They are adjustable for flat or beveled
edge doors and have a ½" (13 mm) throw. Orders for complete
locks are provided with a G506-815 sleeve for 7/8” diameter
latches installed in doors with 1" (25 mm) edge bore.
All latches have 1 1/8” x 2 1/4” square corner fronts. Standard
latches are shown in bold type.
Note: Failure to use the below referenced latches and fire cup,
included with the lockset, will invalidate the UL Listing.
Door Reinforcement
Schlage
®
reinforcing units help prevent
the collapse of hollow metal doors when
locksets are tightly mounted.
A501-566
1³⁄₄
(44 mm) Doors
A501-565
1³⁄₈ (35 mm) Doors
Door Prep
Used to adapt 1 (25 mm) wide square front faceplates to 1⅛
(29 mm) wide door preparations. Furnished in black plastic.
Order in multiples of 100.
Used on 7/8 (22 mm) diameter latch housings in 1” (25 mm)
edge bore. Furnished standard with complete locks.
Latch Front Adapter
A501-878
Sleeve
G506-815
