Schlage M490 - Lock Installation Procedure; Prepare for Installation

2
Electrical Specications
Model Amps (12VDC)
Per Lock
Amps (24VDC)
Per Lock
Holding Force (lbs)
Per Coil
M420 0.750 0.380 500
M450 0.750 0.380 1000
M490 0.650 0.350 1500
Lock Installation
1 Prepare for installation.

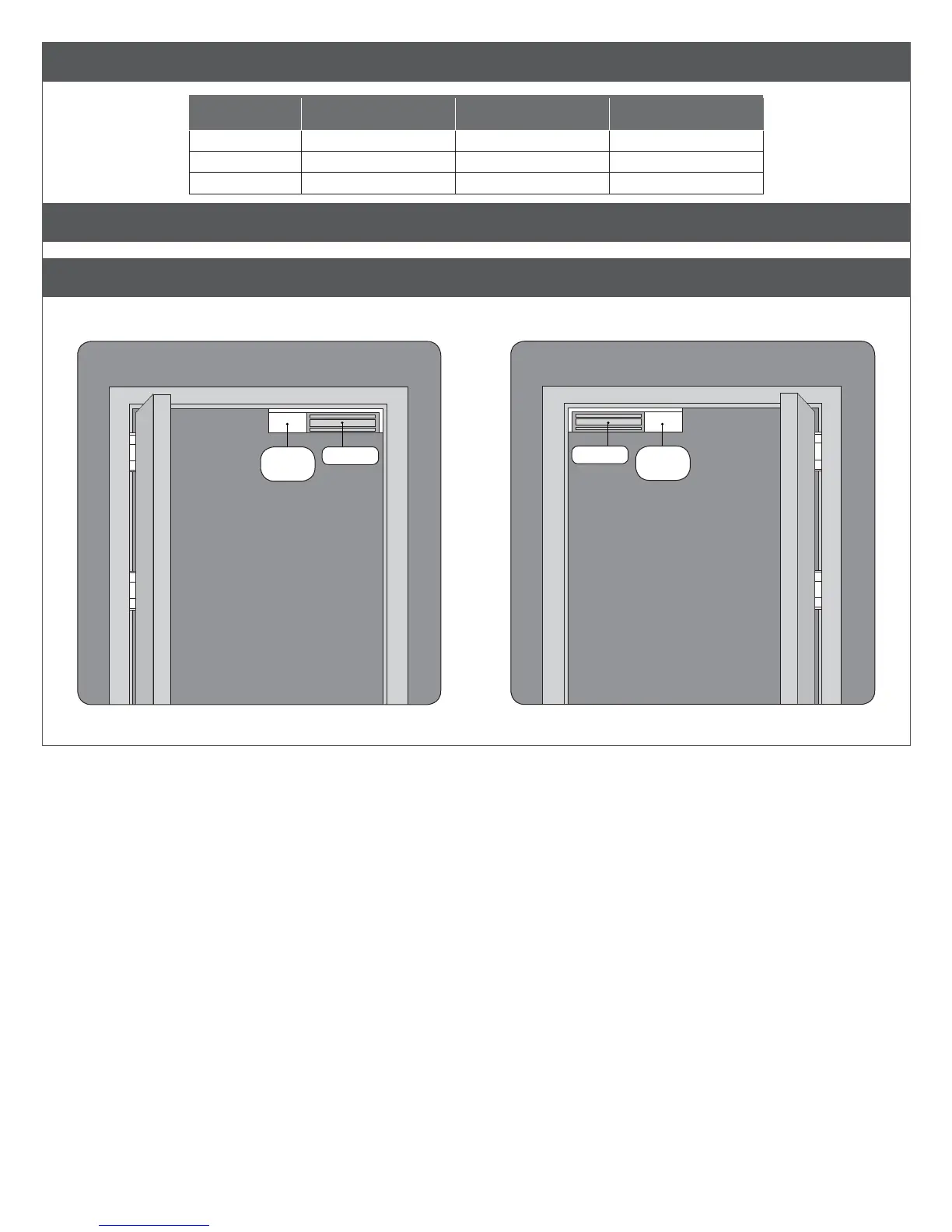

1a Determine Proper Magnet Orientation
• Magnet should be placed opposite of door hinges.
Wiring
Cover
Magnet
LHR Door - Shown from Exterior
Wiring
Cover
Magnet
RHR Door - Shown from Exterior
