Schlage M490 - Mounting Bracket Installation; Attach Mounting Bracket Temporarily; Slide Magnet onto Bracket; Align and Fully Attach Bracket

6
5d Align magnet to armature.
• Close door.
• Press magnet to fully engage with armature.
• Mark bracket location.
Press magnet to armature
INSIDE
Mark here
5e Fully attach bracket.
• Remove magnet from bracket.
• Check bracket alignment with marks.
• Fully tighten two screws in slotted holes.
• Drill four (4) remaining holes.
• Fully tighten all screws.
Fully tighten
all screws
Drill four (4) holes
Check
alignment
OUTSIDE
Actual Size
Reinforced
Metal
Sheet
Metal
Use 10-24 tap
if reinforced metal

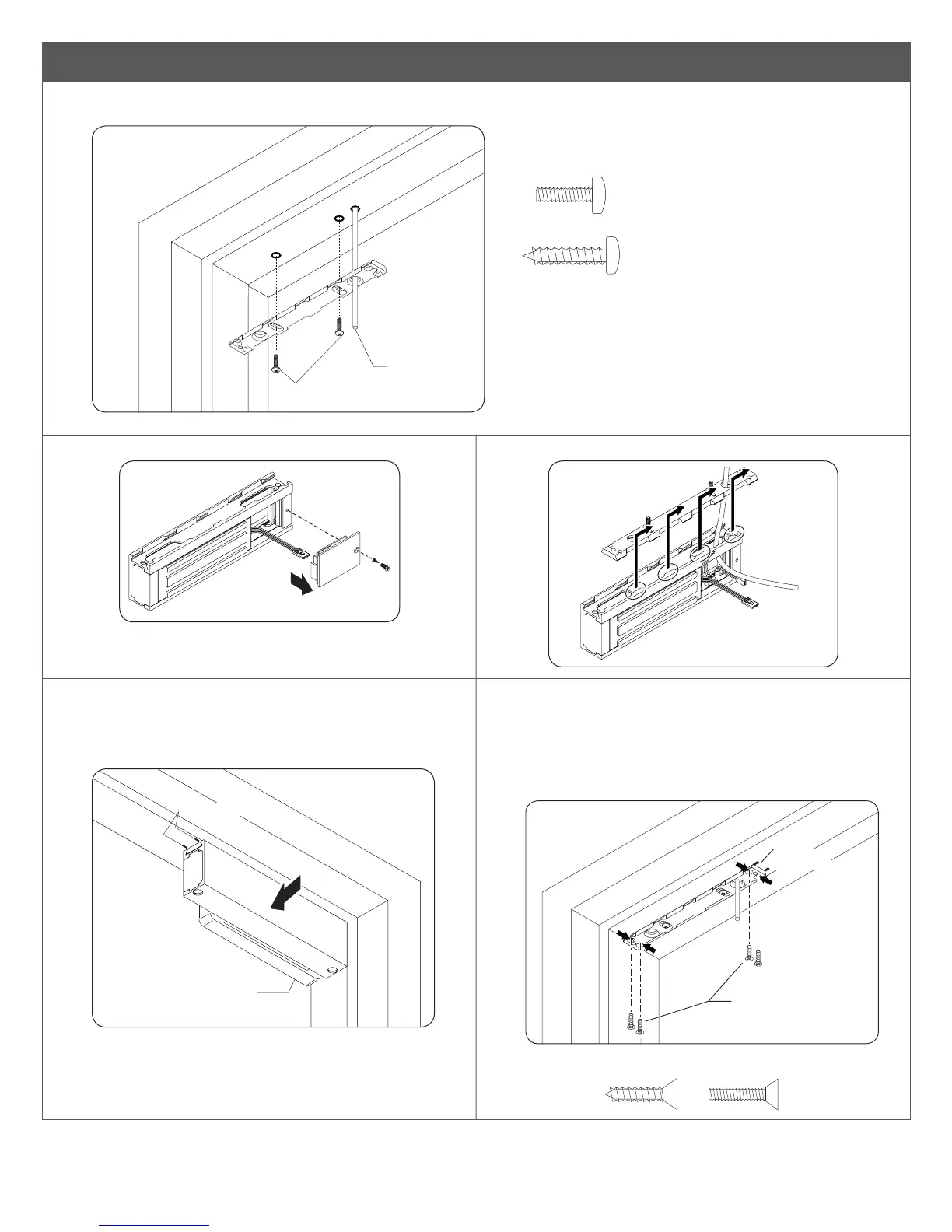

5 Install mounting bracket into frame.
5a Attach mounting bracket temporarily
• Install two middle screws into slots and partially tighten.
Partially
tighten
Pull wires
OUTSIDE
Actual Size
Reinforced
Metal
Sheet
Metal
5b Remove wiring cover. 5c Slide magnet onto bracket.
OUTSIDE
