5 Installation
5.1 Connecting the vacuum tube lifter Jumbo

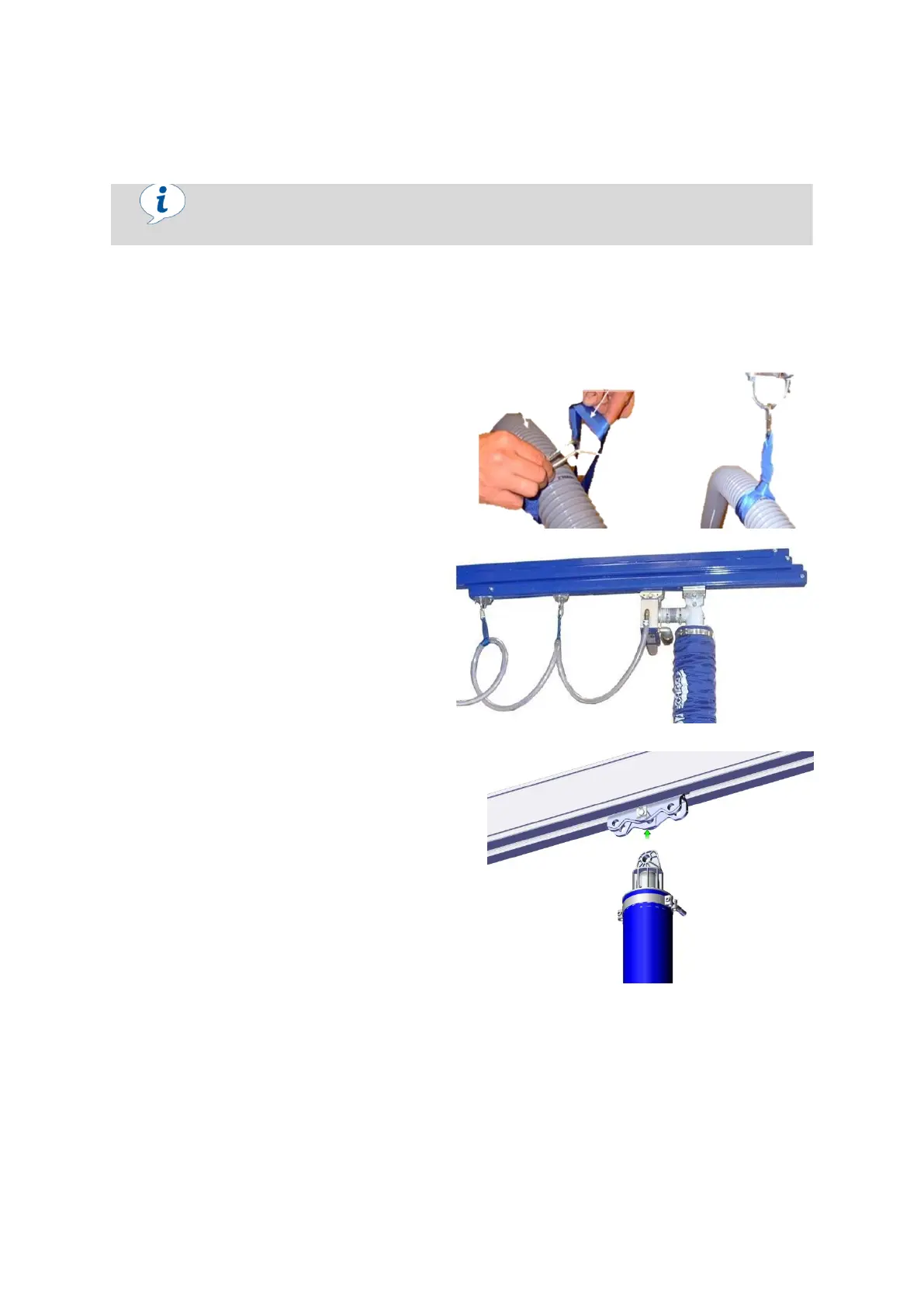

Procedure:
1. Lay out the compressed air hose/vacuum
supply hose with a diameter of 500 mm.
2. Attach first suspension band in a loop about
1.2 m from end of hose
3. Attach remaining bands after each complete
circle of hose coil.
4. Insert carrier unit for supply hose in crane rail
5. Fit snap hook in carrier unit or securing
clamp.
6. Insert the carrier unit for vacuum tube lifter
JUMBOERGO/SPRINT into the crane jib.
7. Attach end buffer to end of crane jib.
8. JUMBOERGO/SPRINT 35 to 140:
Attach the tube lifter with rotary union to the
carrier unit and secure it with the retaining
split pin.
Please read section 1.6 (Requirements & instructions for installation, maintenance
and operating staff) before starting installation.
