6.9.4 Replacing the suction pads with a quick-change adapter (optional)
Disassembly procedure:
1. Switch off the vacuum generator and park the suction pad safely.
2. Raise and hold onto the latching bolts (5) on the operator handle (4).
3. Rotate the suction pads (6) in direction B until the suction pad suspension bolts (8) are positioned
in the gaps of the perforated disk (7). The suction pad detaches from the operator handle and
can be removed.
Assembly procedure:
1. Switch off vacuum generator.
2. Insert the suction pad suspension bolts (8) into the gaps of the perforated disk (7) of the operator
handle.
3. Rotate the suction pads in direction A until the latching bolt engages in the dedicated opening on
the gripper in the end position. The gripper is now secured against automatic opening.
Risk of injury! If the suction pad is not securely attached to the
operator handle, it can become detached during operation and
fall.
Falling parts can hit people, crushing limbs or otherwise causing injury.
Rotate the suction pad in direction A (counter clockwise). The latching
bolt must lock into place!

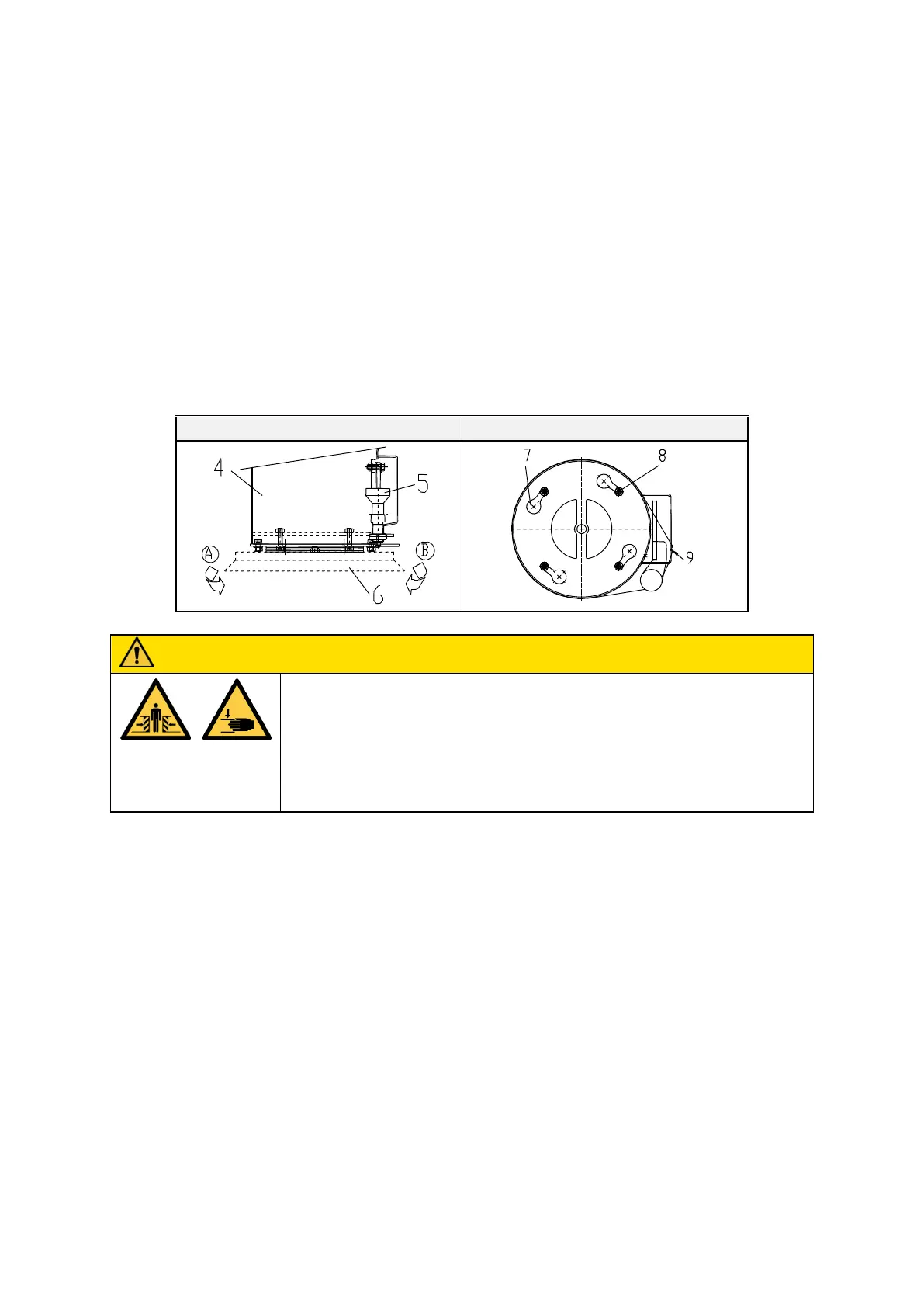

Top view of change system
