Operating Instructions
VACUMASTER
Chapter 3
Description
J. Schmalz GmbH
Aacher Straße 29
D - 72293 Glatten
Tel +49 +7443 / 2403 - 0
Fax +49 +7443 / 2403 - 259
http://www.schmalz.de
e-mail: schmalz@schmalz.de
30.30.01.00185 Status 03.2013 / Index 00 Page 15 / 28

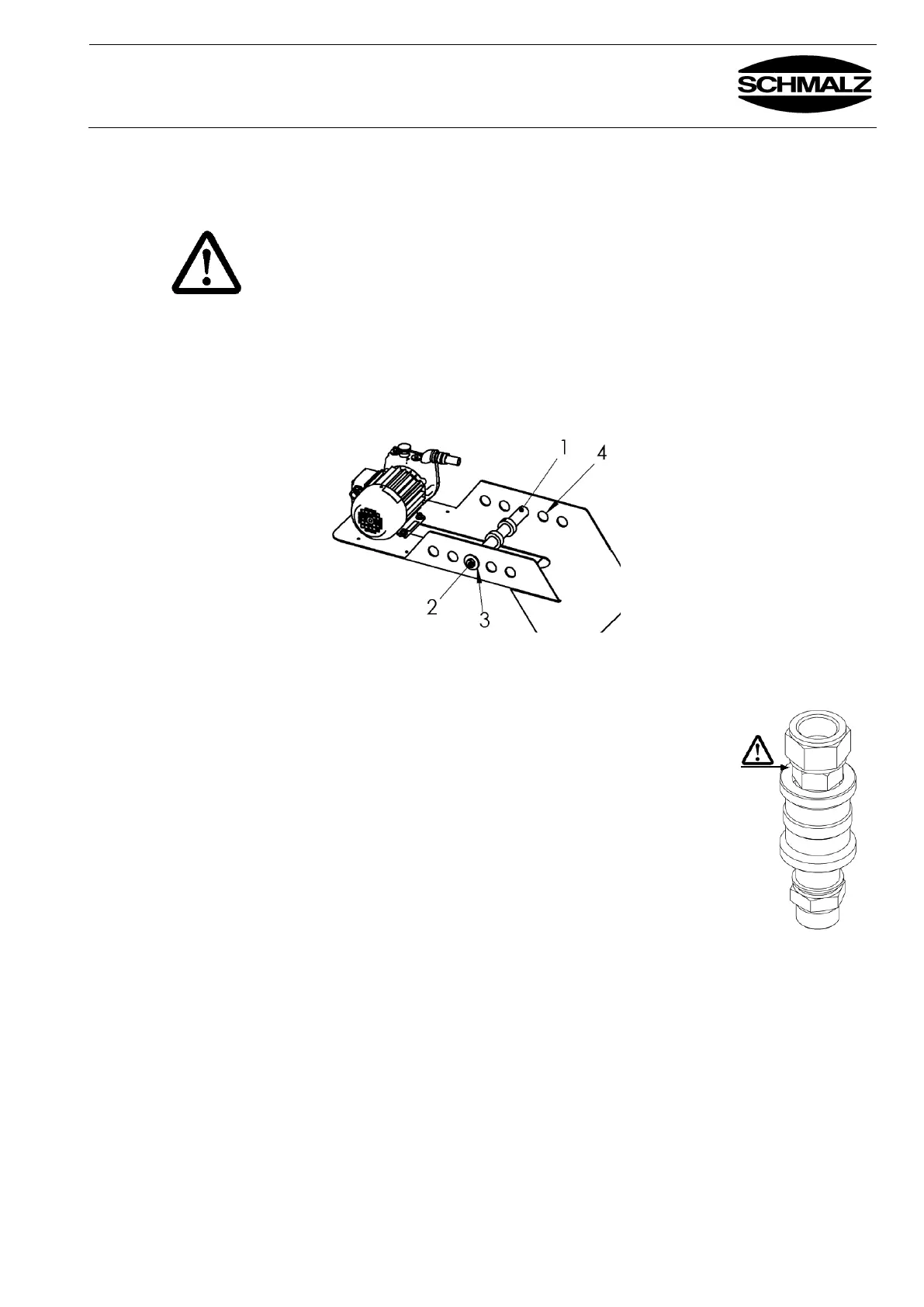

3.8 Setting the
balance state
Danger
Only applicable for VACUMASTER 75 / 125 / 250 - 180°
There are several holes on the basic structure of the lifting device to allow you
to adjust the balance of the lifting device with various loads.
The balance may only be adjusted when the lifting device has been switched
off safely and removed from the hoist (e.g. crane unit).
Proceed as follows to adjust the balance state:
 Remove hex bolt (2)
 Open adjusting rings to move them (open the set screws)
 Remove the bolt pin (1) and insert it in the required hole (4)
 Secure the hex bolts (2) with the washers (3) again
 Attach the adjusting rings in the centre again using the set screws
3.9 Accessories
Valve for switching
individual suction
plates off
If individual suction plates are not used, they can be
manually blocked with optional valves.
When the red marking ring is visible, the valve is closed
– there is no vacuum on the suction plate!
Note that this reduces the carrying capacity of the
VACUMASTER accordingly!
Valve for switching
individual lateral cross
arms off
If individual lateral cross arms are not used, they can be
manually blocked with optional valves.
When the red marking ring is visible, the valve is closed
– there is no vacuum on the suction plate!
Note that this reduces the carrying capacity of the
VACUMASTER accordingly!
Cekon plug connection
Plug connection set, consists of Cekon plug and Cekon socket (
B
B
A
A
S
S
I
I
C
C version
only)
Spiral cable
Spiral cable for ergonomic electrical connection of the lifting device (
B
B
A
A
S
S
I
I
C
C
version only)
