TECHNICAL DATA
12 | EN www.schmalz.com 30.30.01.00956/01

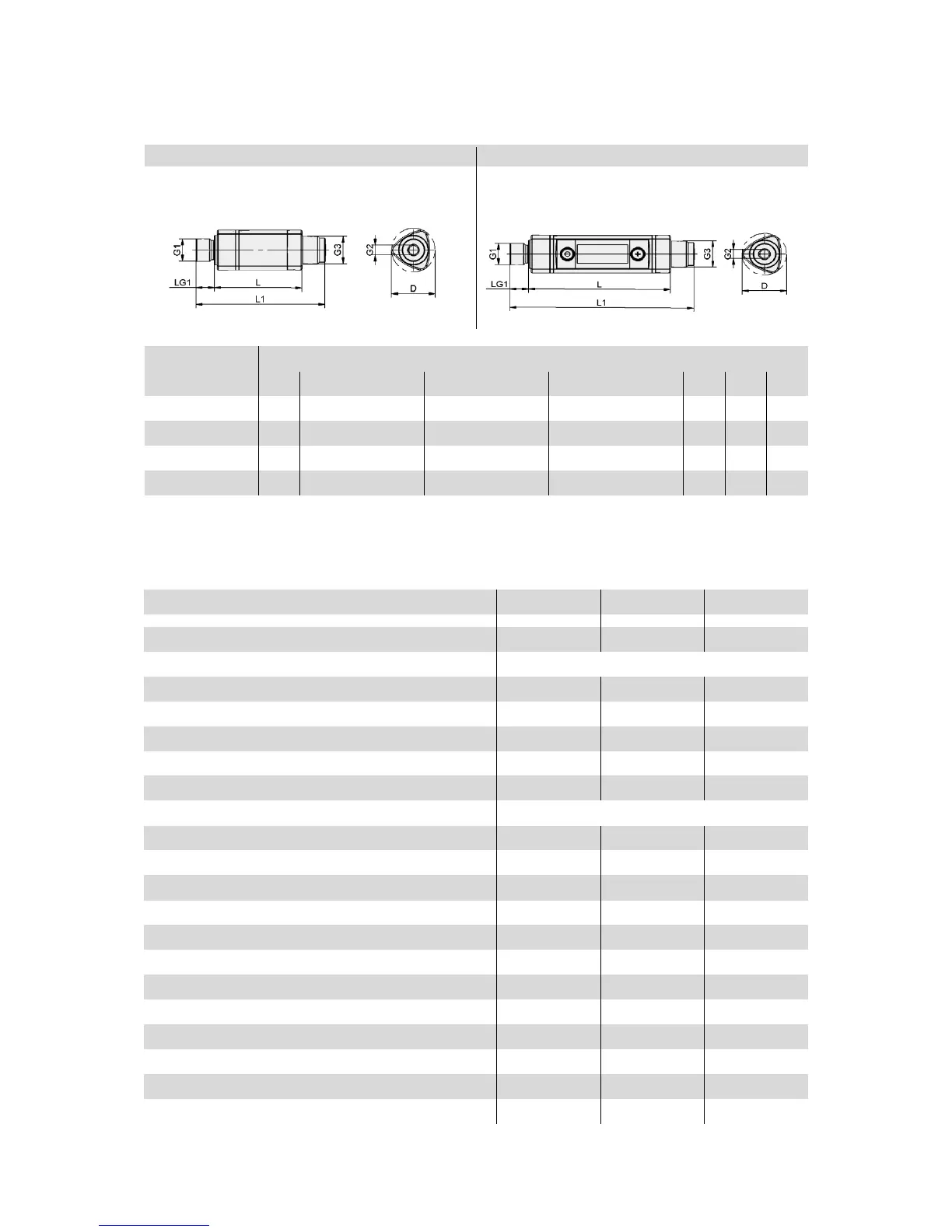

3.3 Mechanical data
VSi
VSi…D
Type
Dimensions in mm
D
G1
1)
G2
1)
G3
L
LG1
L1
VSi … M8-4
19.6
G1/8" male thread
M5 female thread
M8x1 male thread
38.0
8
55.0
VSi … M12-4
19.6
G1/8" male thread
M5 female thread
M12x1 male thread
38.0
8
56.0
VSi … D M8-4
19.6
G1/8" male thread
M5 female thread
M8x1 male thread
60.5
8
77.5
VSi … D M12-4
19.6
G1/8" male thread
M5 female thread
M12x1 male thread
60.5
8
78.5
1)
Maximum tightening torque 2.5 Nm
3.4 Factory settings
Parameter
VSi-V
VSi-P10
VSi-VP8
Switching point 1
Switching point mode and logic
Two-point mode, normally closed (H. no)
Switching point SP1
750 mbar
5500 mbar
-750 mbar
Reset point rP1
600 mbar
5000 mbar
-600 mbar
Window hysteresis Hy1/leakage limit per sec L-1
20 mbar
100 mbar
20 mbar
Switch-on delay dS1, switch-off delay dr1
0 ms
0 ms
0 ms
Switching point 2
Switching point mode and logic
Two-point mode, normally closed (H. no)
Switching point SP2
550 mbar
5000 mbar
5500 mbar
Reset point rP2
500 mbar
4500 mbar
5000 mbar
Window hysteresis Hy2/leakage limit per sec L-2
20 mbar
100 mbar
20 mbar
Switch-on delay dS2, switch-off delay dr2
0 ms
0 ms
0 ms
Transistor function
PNP
PNP
PNP
Display unit
mbar
mbar
mbar
Eco mode
Off
Off
Off
Display alignment
Standard
Standard
Standard
IO link device locks, extended device locks
0
0
0
Menu PIN code, NFC PIN code
000
000
000
