4.3 Accessories
Set of disposable screws (order separately)
- 4x M4x25 incl. washers, order number 101217746
- 4x M4x30 incl. washers, Bestellnummer 101217747

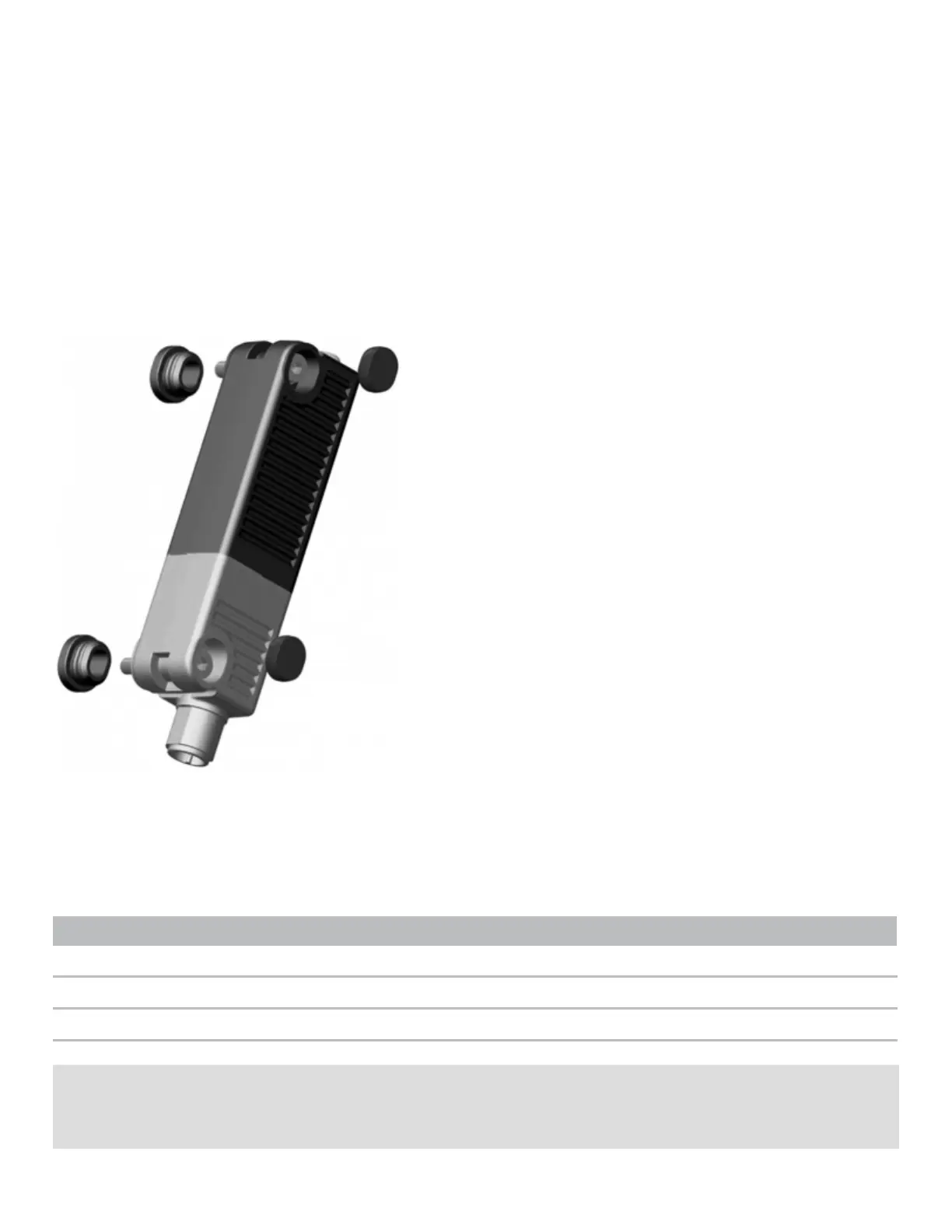

Sealing kit (order separately)
- Order number 101215048
- 8 plugs and 4 under seals
- To seal the mounting holes and as a spacer (approx. 3 mm) to facilitate cleaning below the mounting surface
- Also suitable as tamper protection for the screw attachment
4.4 Switch distance
Switching distances in mm to IEC 60947-5-3
Typical switching distance s
typ
: 12
Assured switching distance s
ao
: 10
Assured switch-off distance s
ar
: 20
2
There are new switch distances as per the table below owing to the necessity of technical modifications (V2).
Please check the design of your guard system following installation to ensure adherence to the secured switch distances (≤ s
ao
and ≥ s
ar
) in accordance with the specified values and adjust the guard system accordingly.
The positions of the designations V2 should be gleaned from the dimensional drawings.
