Assembly
26
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
5.3.3.2 Size MPG-plus 25 AS

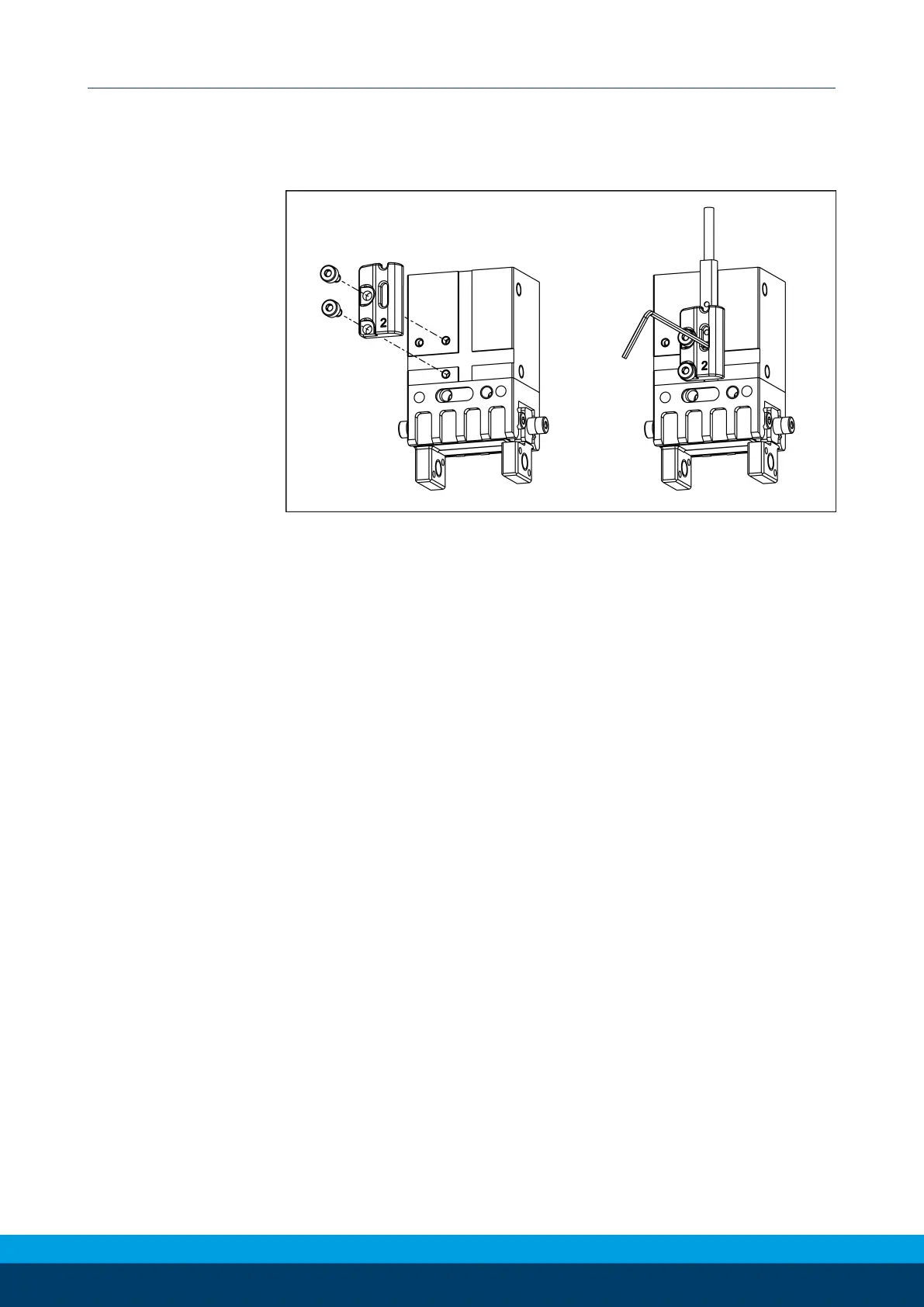

For the variant "O.D. gripping" (AS) of the size25 a special bracket
must be mounted.
Ø Remove the standard bracket.
Ø Fasten the special bracket. Tighten the screws only slightly.
Ø Move the sensor into the bracket up to the stop.
Ø Tighten the screws at the bracket.
Ø Fasten the sensor using a threaded pin.
Tightening torque: 10 Ncm
Ø Check the protrusion of sensor L1, see table "adjustment di-
mensions".
Ø Adjust the sensor, see assembly and operating manual of the
sensor.
