Assembly
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
29
5.3.4.2 Size MPG-plus 64
For this size, a bracket is not necessary. The sensor is fastened in
the gripper's vertical slot. Fastening the sensor in the horizontal
slot is not possible.
Ø If there is a slot nut (1), move the slot nut to dimension L3 (see
tabe "adjustment dimensions"). Move the sensor (2) into the
slot up to the stop.
OR: If there is no slot nut (1), move the sensor (2) into the slot
and adjust it to distance L3 (see table "adjustment dimen-
sions").
Ø Fasten the senor using a threaded pin.
Tightening torque: 10 Ncm
Ø Adjust the sensor, see assembly and operating manual of the
sensor.

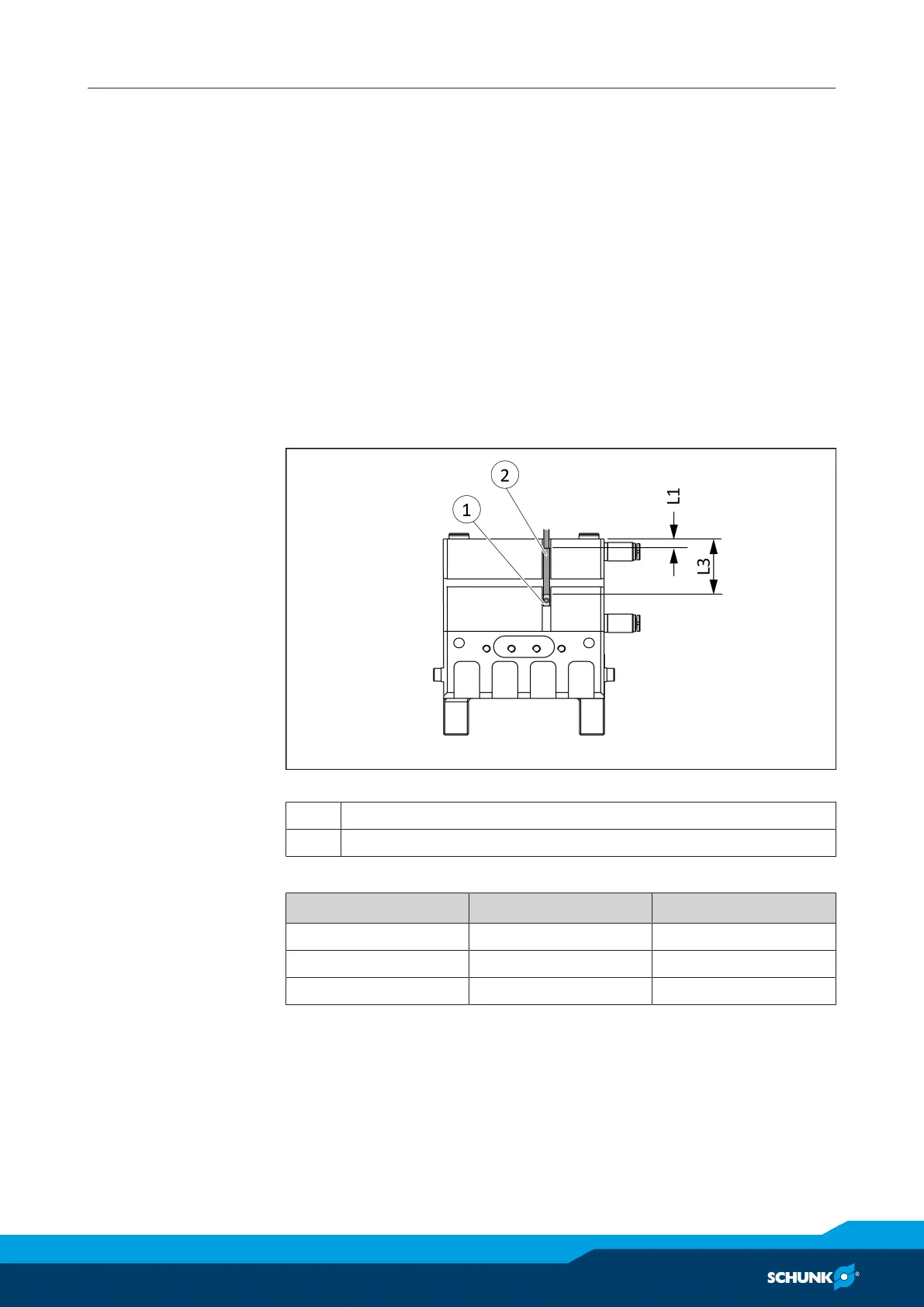

Adjustment dimensions of slot nuts and the sensor for MPG-plus 64
L1 Protrusion of the sensor
L3 Distance of housing to front side of the sensor
Adjustment dimensions
Size L1 [mm] L3 [mm]
MPG-plus64 -3.1 -25
MPG-plus64 IS 1.2 -20.8
MPG-plus64 AS -18.0 -40
