Attachment and disassembly of the chuck
28 01.00|ROTA THWplus |en
Attachment and disassembly of the chuck
The item numbers specified for the corresponding individual com-
ponents relate to chapter drawings.( 12, Page 41)
Pre-assembly measures
Carefully lift the product (e.g. using suitable lifting gear) from the
packaging.
Danger of injury due to sharp edges and rough or slippery sur-
faces
Use personal protective gear, especially safety gloves.
Check the delivery for completeness and for transport damage.
Mounting of the Chuck to the Machine Spindle
Checking the chuck mounting
• Check the machine spindle head or the finish machined adapter
plate for concentricity and face runout. The permissible limit is
0.005 mm as per DIN 6386-1.
• The contact surface must be clean and deburred.
Mounting the ROTA THW plus chuck

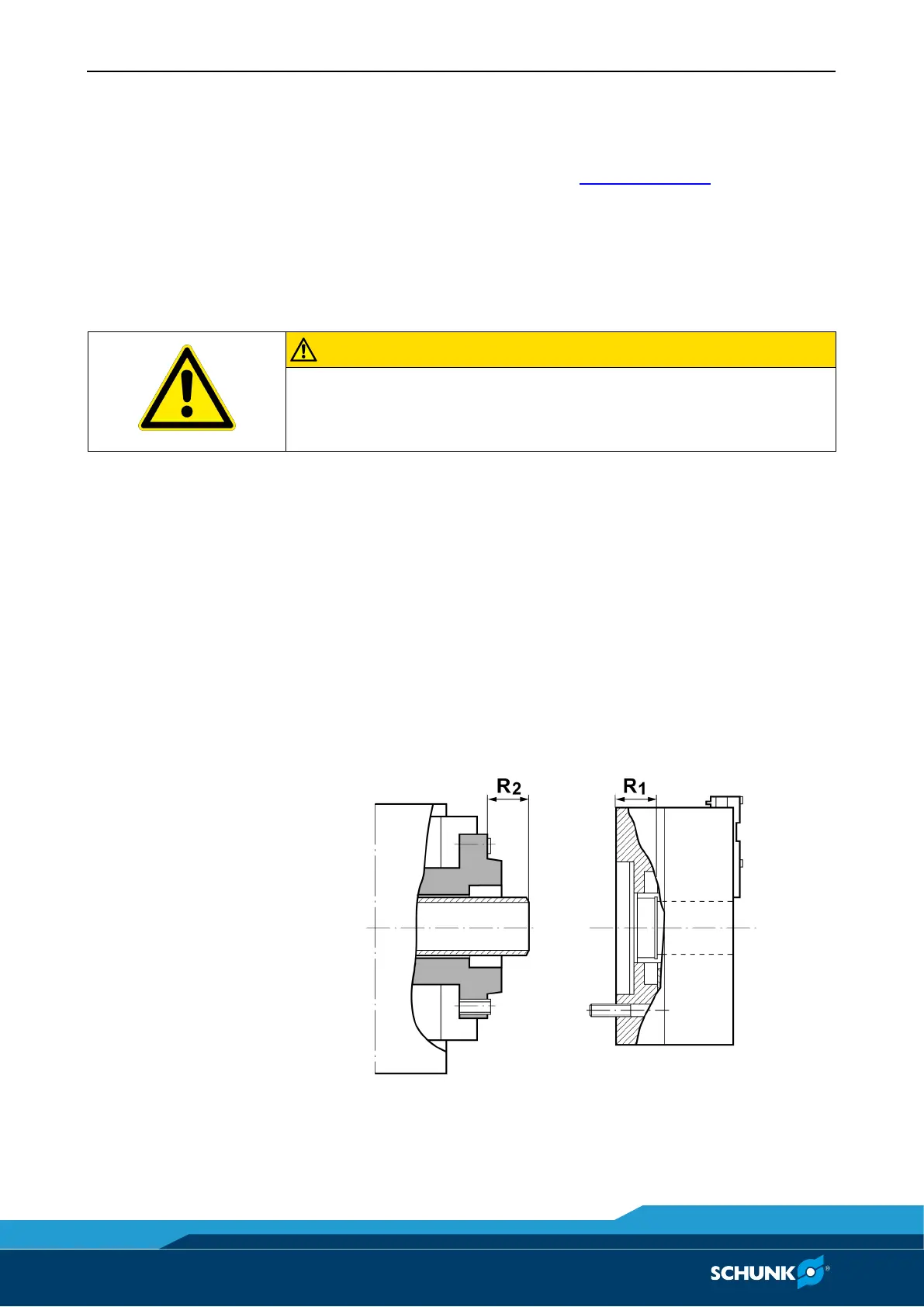

• Push the tension rod into its foremost position (see Fig. 2).
Piston in foremost position
R1 = Push the chuck piston to its foremost position and measure
