SCHUNK ROTA THW plus Series - 9 Maintenance; Lubrication

Maintenance
36 01.00|ROTA THWplus |en
Maintenance
Lubrication
To maintain the safe function and high quality of the chuck, it has
to be regularly lubricated.
A

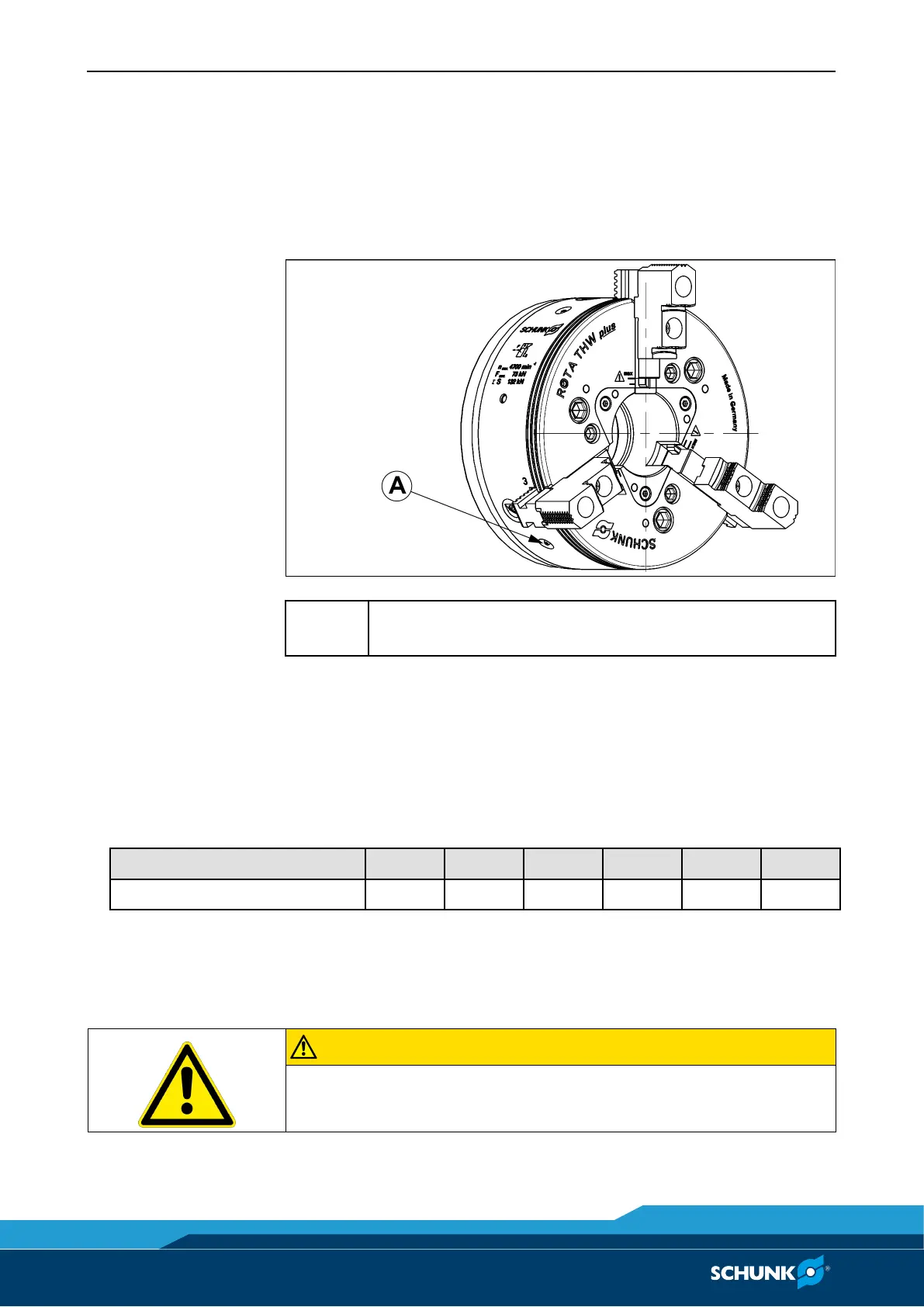

Three lubrication nipples on the chuck perimeter (3 x
120°)
Move the chuck into the open position. Lubricate the chuck at the
three lubrication nipples (A - see Fig. 4) using a high-pressure
grease gun with two to six strokes (depending on the chuck side)
of SCHUNK LINO MAX special grease at each nipple.
For optimum grease distribution, the clamping piston must travel
the entire clamping stroke several times after lubrication.
Check the clamping force, repeat the procedure if necessary.
Chuck size
165
185
215
260
315
400
Number of strokes
2
2
4
4
4
6
Lubricate all three segments evenly in order to avoid imbalances.
(For product information about LINO MAX, see the "Accessories"
chapter of the SCHUNK lathe chuck catalog or contact SCHUNK).
CAUTION
Allergic reactions due to grease in contact with skin!
Wear gloves.
