24 01.00|ROTA THWplus |en
This calculated force must not be larger than the maximum
clamping force ΣS engraved on the chuck.
See also "Chuck data" table (
From the above formula it is evident that the sum of the effective
clamping force F
sp
and the total centrifugal force F
c
is multiplied by
the safety factor for the clamping force S
sp
. According to VDI
3106, the following also applies here: S
sp
≥ 1.5.
The total centrifugal force F
c
is dependent on both the sum of the
masses of all jaws and on the center of gravity radius and the rpm.
For safety reasons, in accordance with DIN EN 1550, the centrif-
ugal force may be a maximum of 67% of the initial clamping

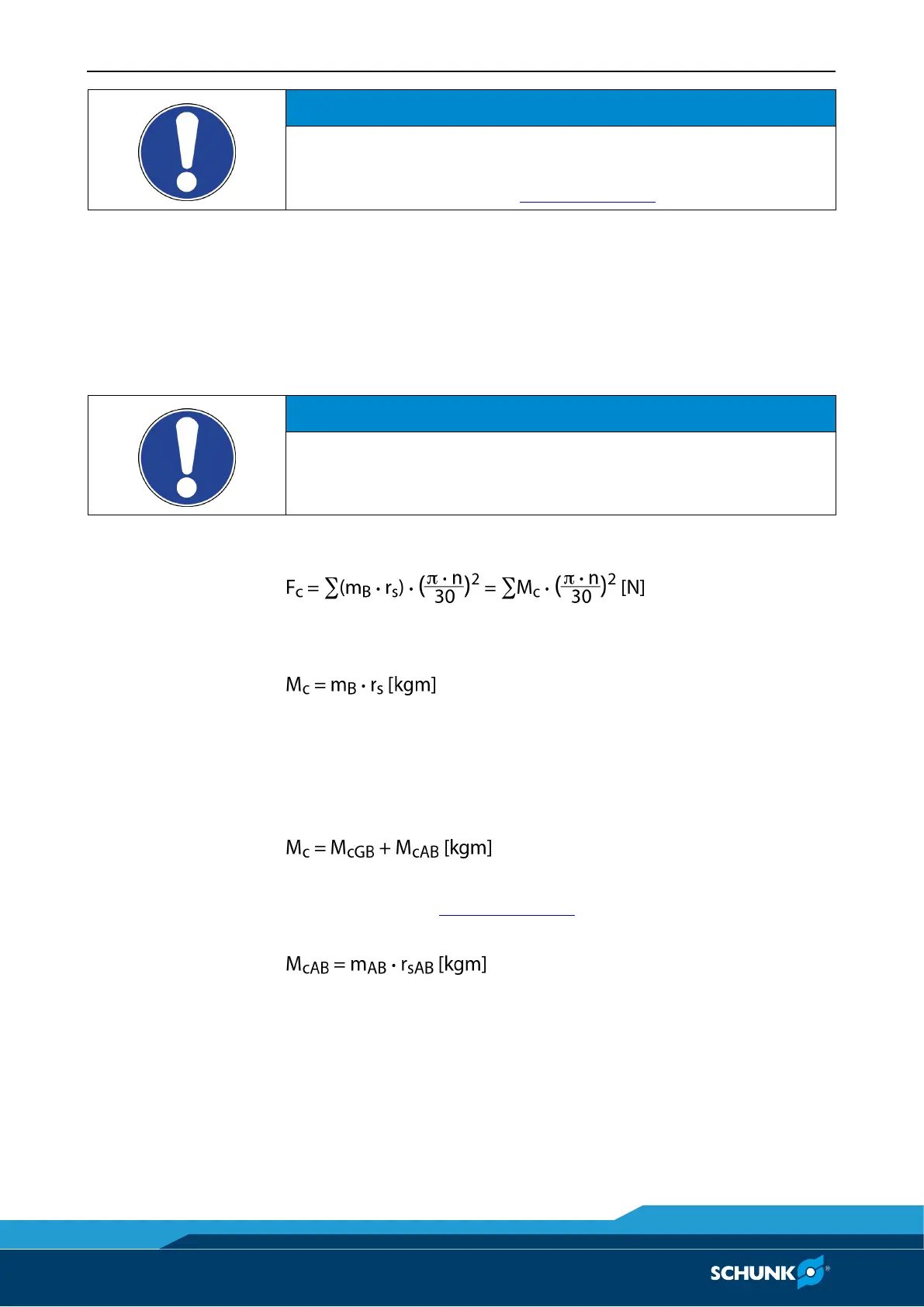

The formula for the calculation of the total centrifugal force F
c
is:
For this, n is the given speed of rotation in
RPM
. The product m
B
∙ r
s
is referred to as the centrifugal force torque M
c
.
In case of toolholders with split chuck jaws, i.e., with base jaws and
top jaws, for which the base jaws change their radial position only
by the stroke amount, the centrifugal torque of the base jaws
M
cGB
and the centrifugal torque of the top jaws M
cAB
need to be
added:
The centrifugal torque of the base jaws M
cGB
can be found in the
table "Chuck data"( 6.1, Page 19)
. The centrifugal torque of the
top jaws M
cAB
is calculated as per:
Calculation example: Required initial clamping force Fsp0 for a
given rpm n
The following data is known for the machining job:
• Gripping from the outside in (application-specific)
• Machining force F
spz
= 3000 N (application-specific)
