(–) for gripping from the outside inwards
(+) for gripping from the inside outwards
Risk to life and limb of the operating personnel and significant
property damage when the RPM limit is exceeded! With grip-
ping from the outside inwards, and with increasing RPM, the
effective clamping force is reduced by the magnitude of the in-
creasing centrifugal force (the forces are opposed). When the
RPM limit is exceeded, the clamping force drops below the re-
quired minimum clamping force F
spmin
. Consequently, the work-
piece is released spontaneously.
• Do not exceed the calculated RPM.
• Do not fall below the necessary minimum clamping force.

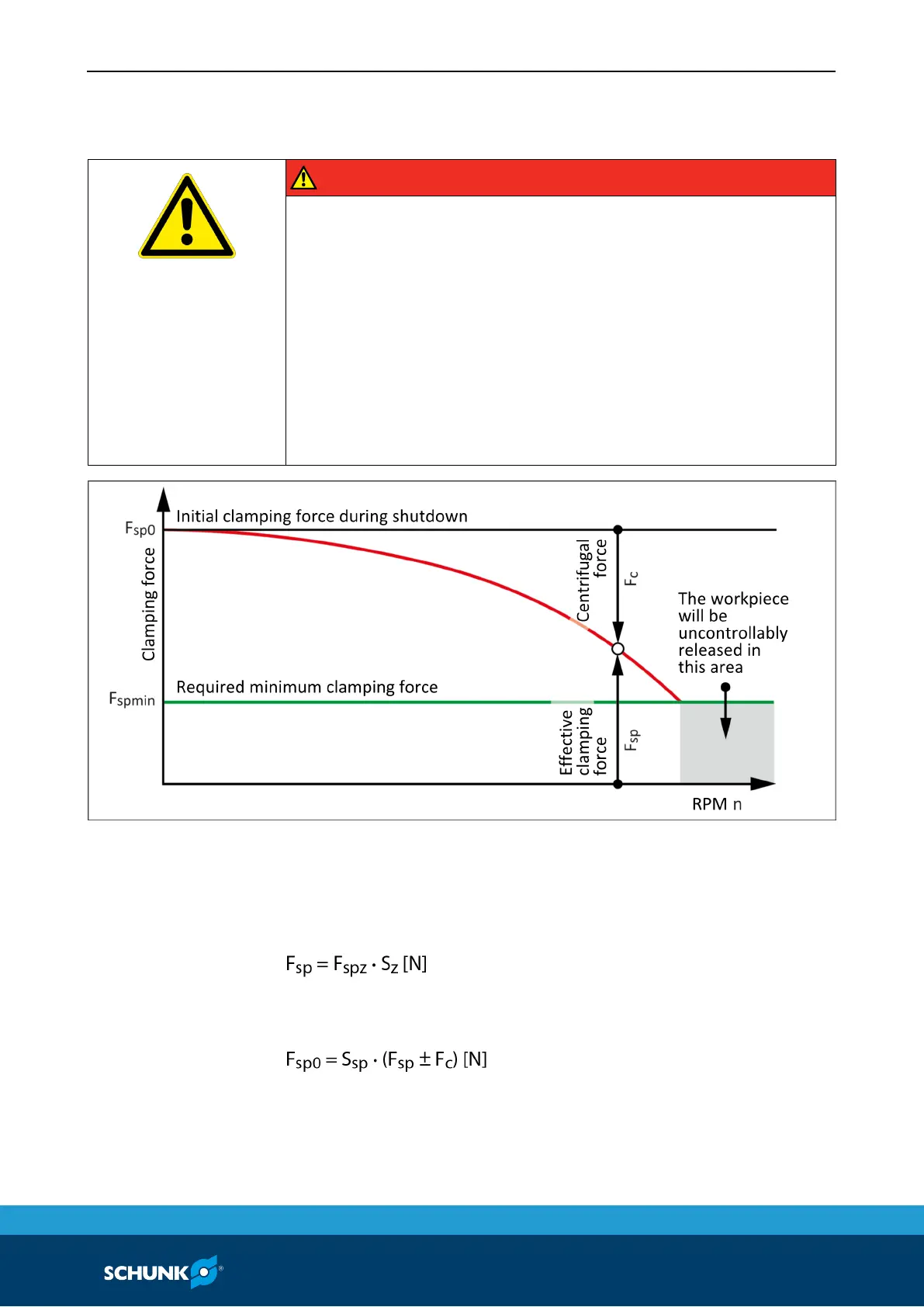

Reduction in effective clamping force by the magnitude of the total centrifugal force, for gripping from the outside inwards.
The required effective clamping force for machining F
sp
is calculat-
ed from the product of the machining force F
spZ
and the safety
factor S
z
. This factor takes into account uncertainties in the calcu-
lation of the machining force. According to VDI 3106: S
z
≥ 1.5.
From this we can derive the calculation of the initial clamping
force during shutdown:
(+) for gripping from the outside inwards
(–) for gripping from the inside outwards
