Schweizer S300CB - Fuel Press (Psi); Air Speed Indicator

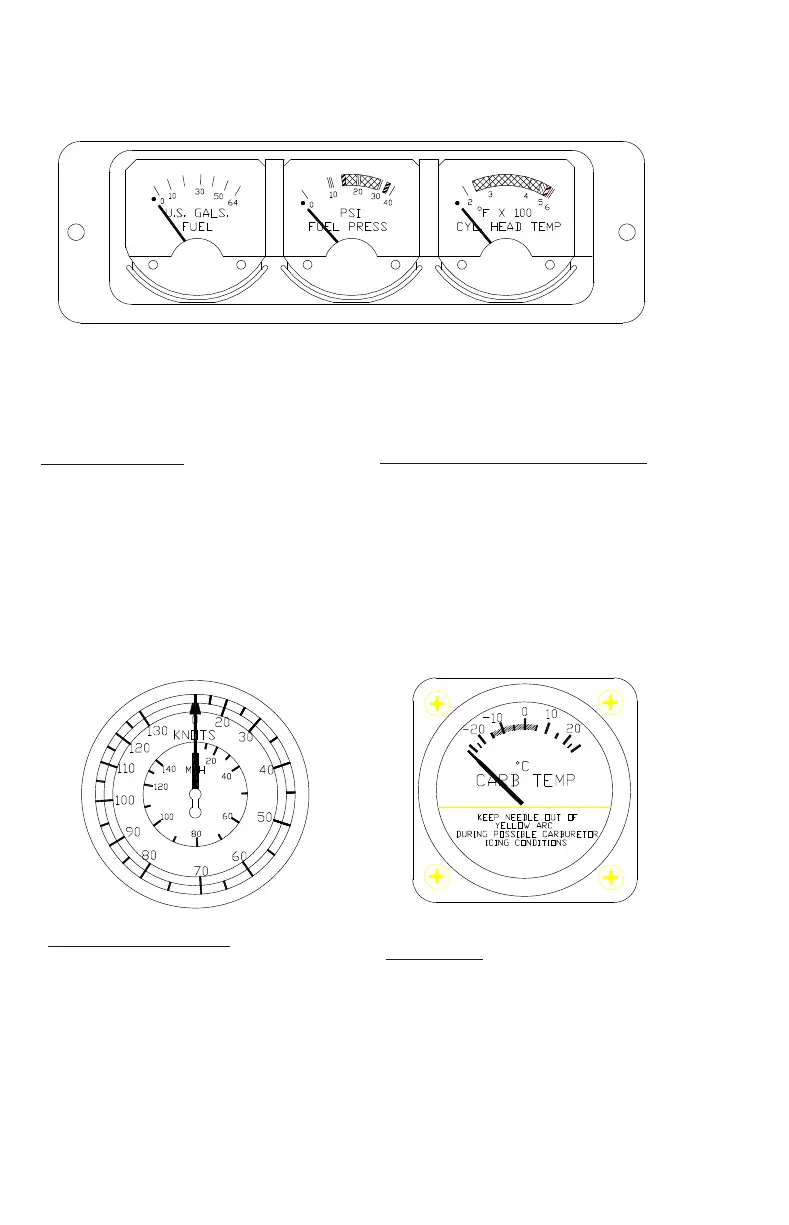

Fig ure 2-3. Air craft In stru ments (Sheet 3 of 4)
Limitations
Pilot's Flight Manual
2-10 Reissued: 16 Jan 2019
CARB TEMP - He li cop ters with
carbureted en gine (HO-360-C1A)
YEL LOW ARC- -15°C TO +5°C
AIR SPEED IN DI CA TOR
RED LINE (V
NE
) - 94 KTS (108 MPH)
AUX. FUEL TANK CON FIG U RA TION
He li cop ters with fuel in jected en gine (HIO-360-G1A)
FUEL PRESS (PSI
)
RED RA DIAL - 14 AND 35 PSIG
GREEN ARC - 14 TO 30 PSIG
CYL IN DER HEAD TEM PER A TURE:
GREEN ARC - 230°F TO 450°F
YEL LOW ARC - 450°F TO 500°F
RED RA DIAL - 500°F
SCHWEIZER
Model 269C-1 Helicopter
FAA Approved
