Rock Valve
 
Guide Rod
End Plate

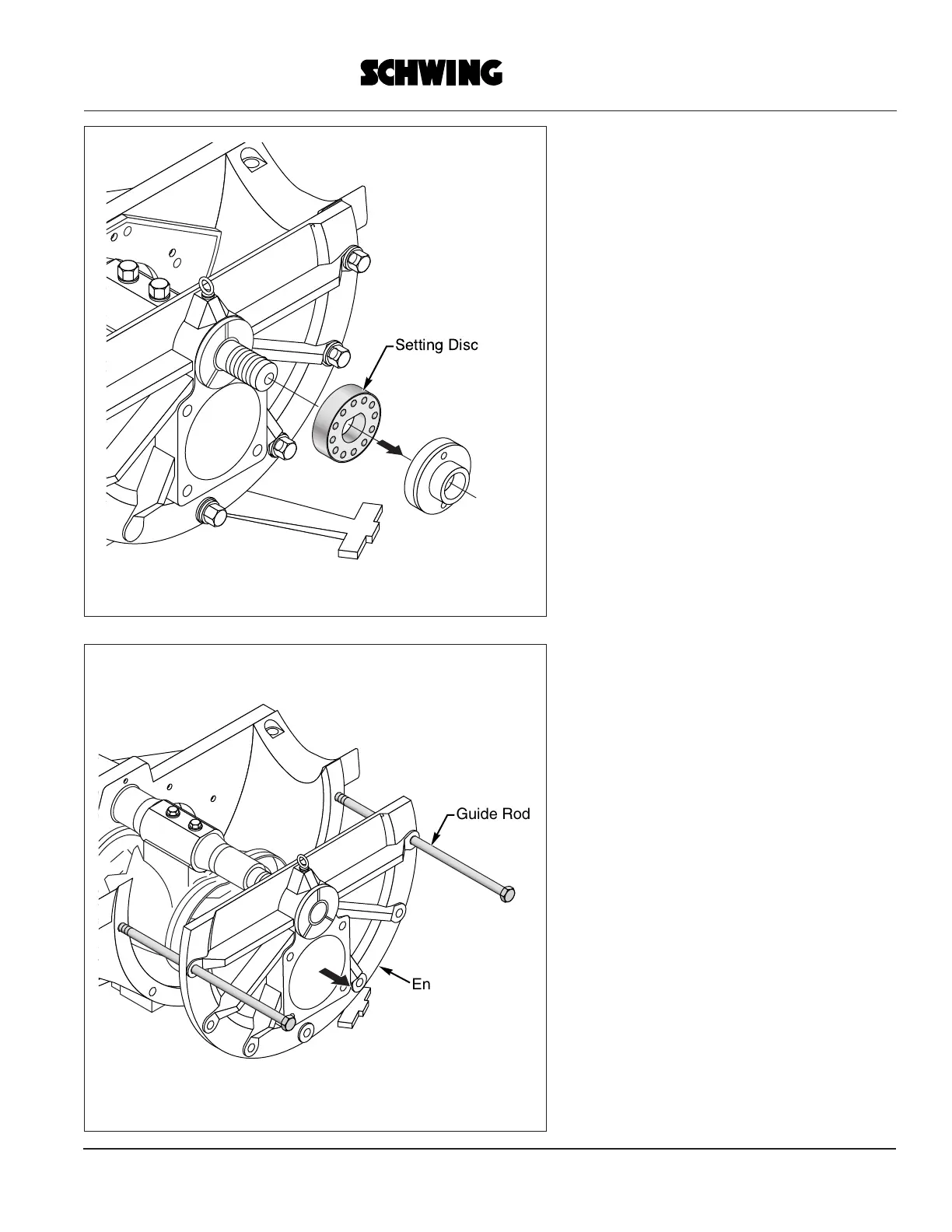

3. Remove the Setting Disc from the Rock
pivot shaft.
4. Remove the bolts from the End Cover and
insert the two Guide/Support Rods into the
upper holes using a 36 mm. wrench.
