SERVICE TRAINING
Service Manual
26

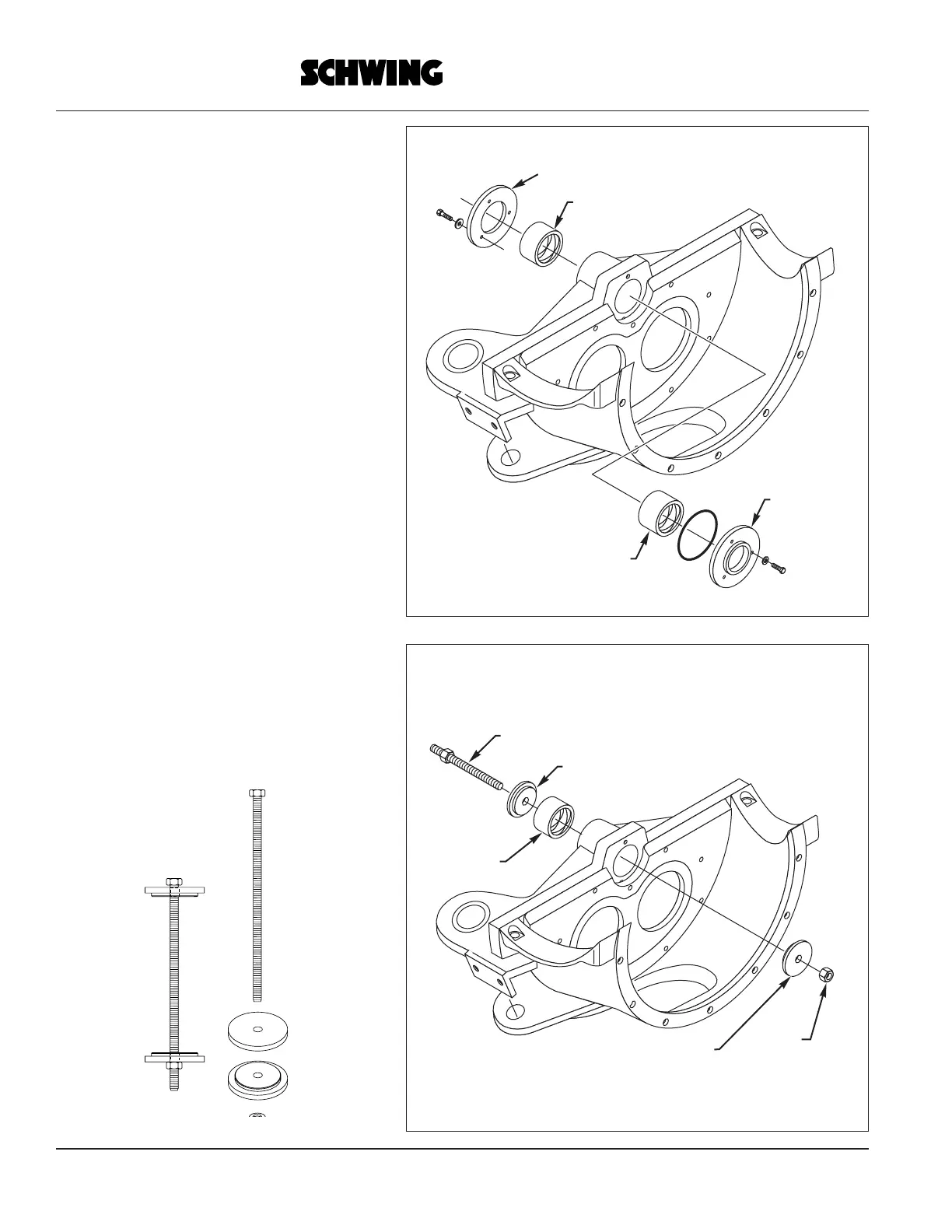

Rock Valve
Pivot Shaft Bushing
1. Remove the Pivot Shaft as described in the
Pivot Shaft replacement section of this man-
ual.
2. To replace the bushings, remove the Seal
Cover and Bolts.
3. Remove the bushings from the housing.
4. Clean the housing bores.
NOTE: To replace the bushings, use the instal-
lation tool. (Part# 10013417)
Seal Cover
Seal Cover
Bushing
Bushing
Thrust/Bushing Centering Plate
Thrust Plate
Thrust Plate
Bushing
Nut
To Next Page
