Rock Valve
5. Fit the rear bushing (pivot lever side) first
with a 46 mm wrench.
6. Insert the bushing so that it is flush with the
end of the bushing housing.
7. Now replace the front bushing (Spectacle
Plate Side) with the installation tool, tighten-
ing the nut from the opposite end.
NOTE: When the bushing is correctly
installed, it will protrude 5 mm from the hous-
ing on the Spectacle Plate side.

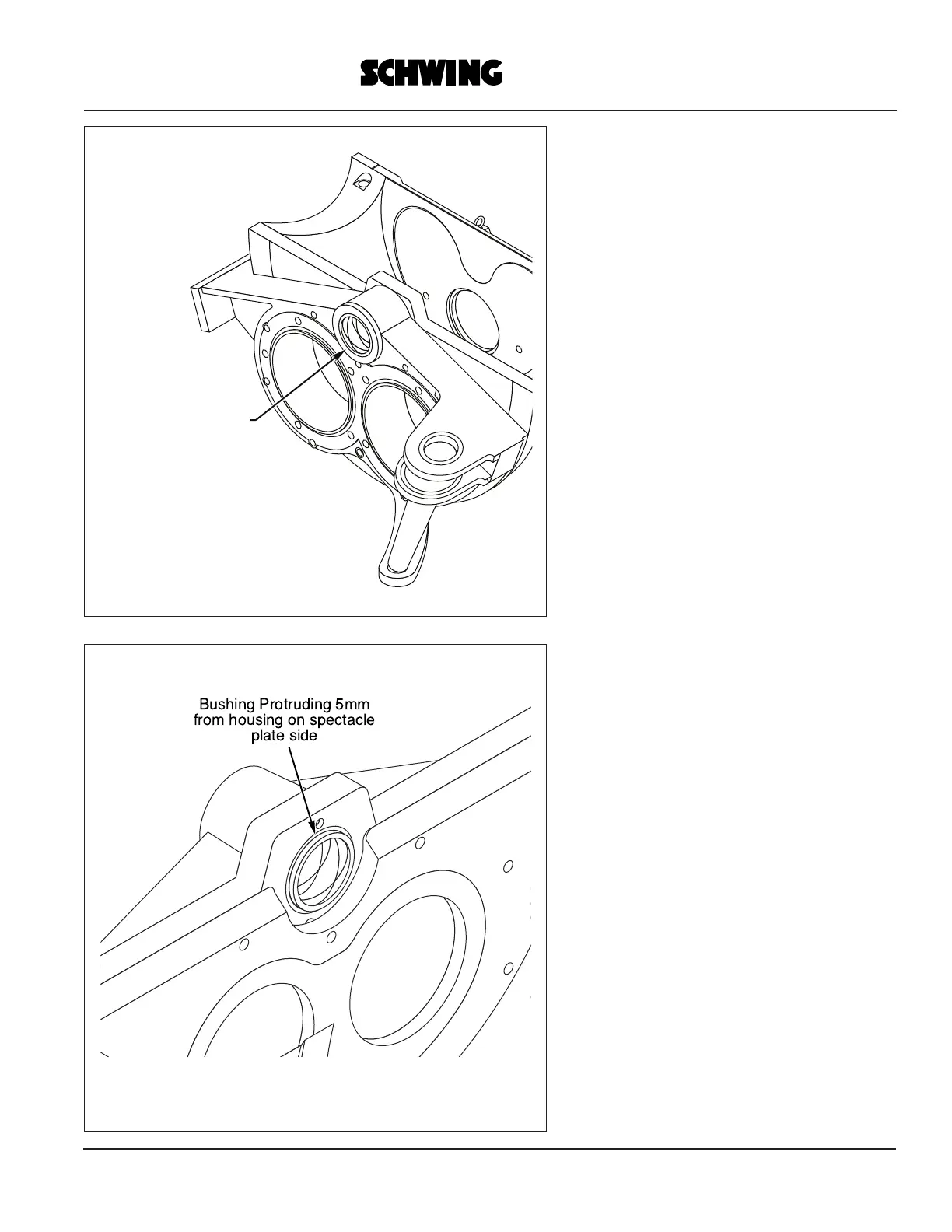

Bushing Flush with
Bushing Housing
