Rock Valve

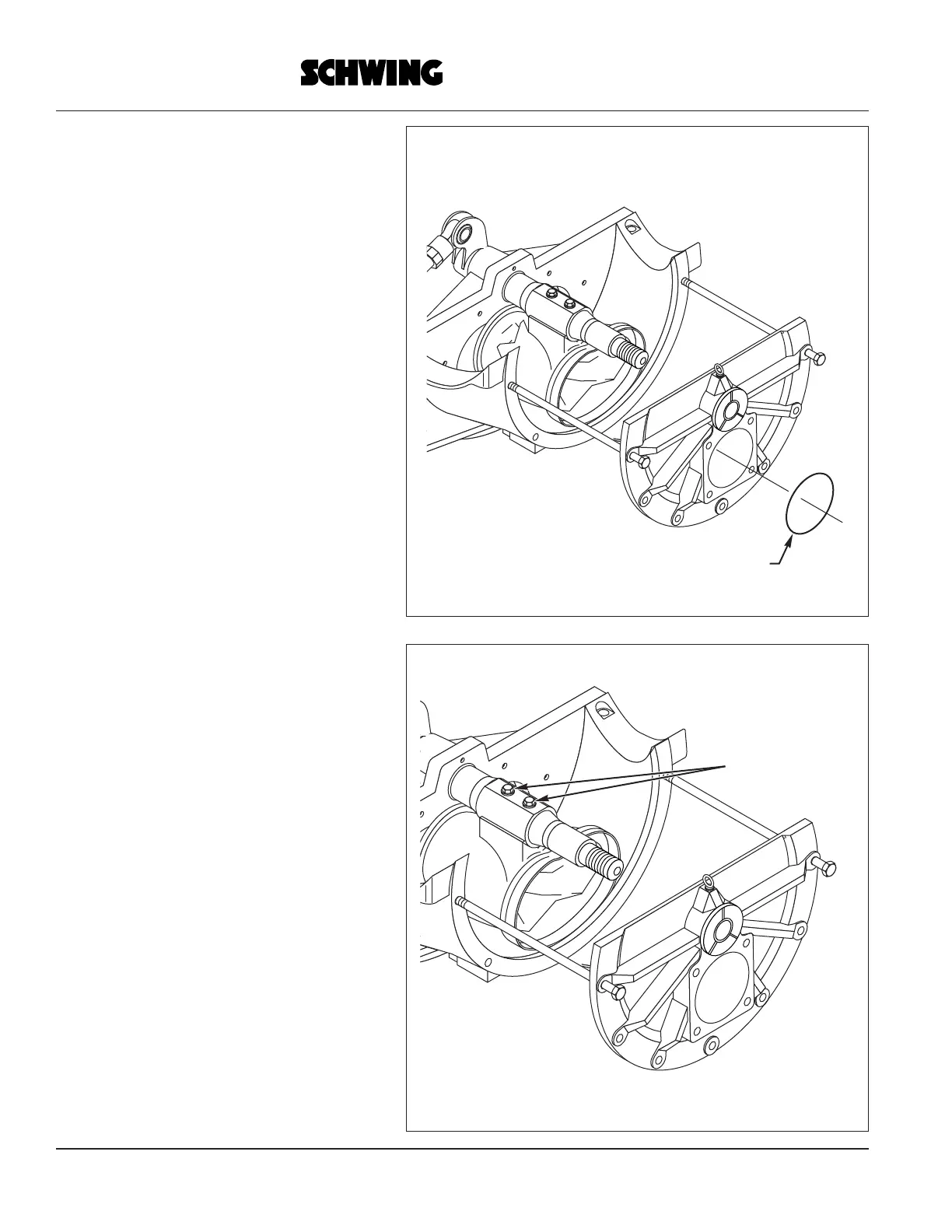

O-Ring
Bolts
5. Grease the outer surface of the Cover Lining
before reinstalling it into the End Cover.
6. Clean all of the contacted areas, replace the
O-ring, replace the Pipe Bend, and reassem-
ble by following the above directions in
reverse order.
Rock Valve Body
Because this is a major procedure, we recom-
mend close inspection of the Spectacle Plate
(Base Plate), Outlet Housing Lining (End Cover
Lining), and all other parts that require periodic
replacement, so you can replace all necessary
parts at the same time.
1. Remove the agitator motor along with the
hydraulic lines that are connected to it.
2. Remove any and all electric wires from the
hopper. Mark the wires to aid in reassembly.
3. Completely remove the hopper.
4. Remove the End Cover as explained in the
Kidney Seal or Outlet Housing Lining
replacement section.
5. Remove the bolts from the Rock Valve while
making sure to support it from underneath.
