Schwing ROCK - Rock Slewing Cylinder

SERVICE TRAINING
Service Manual
36
Rock Valve

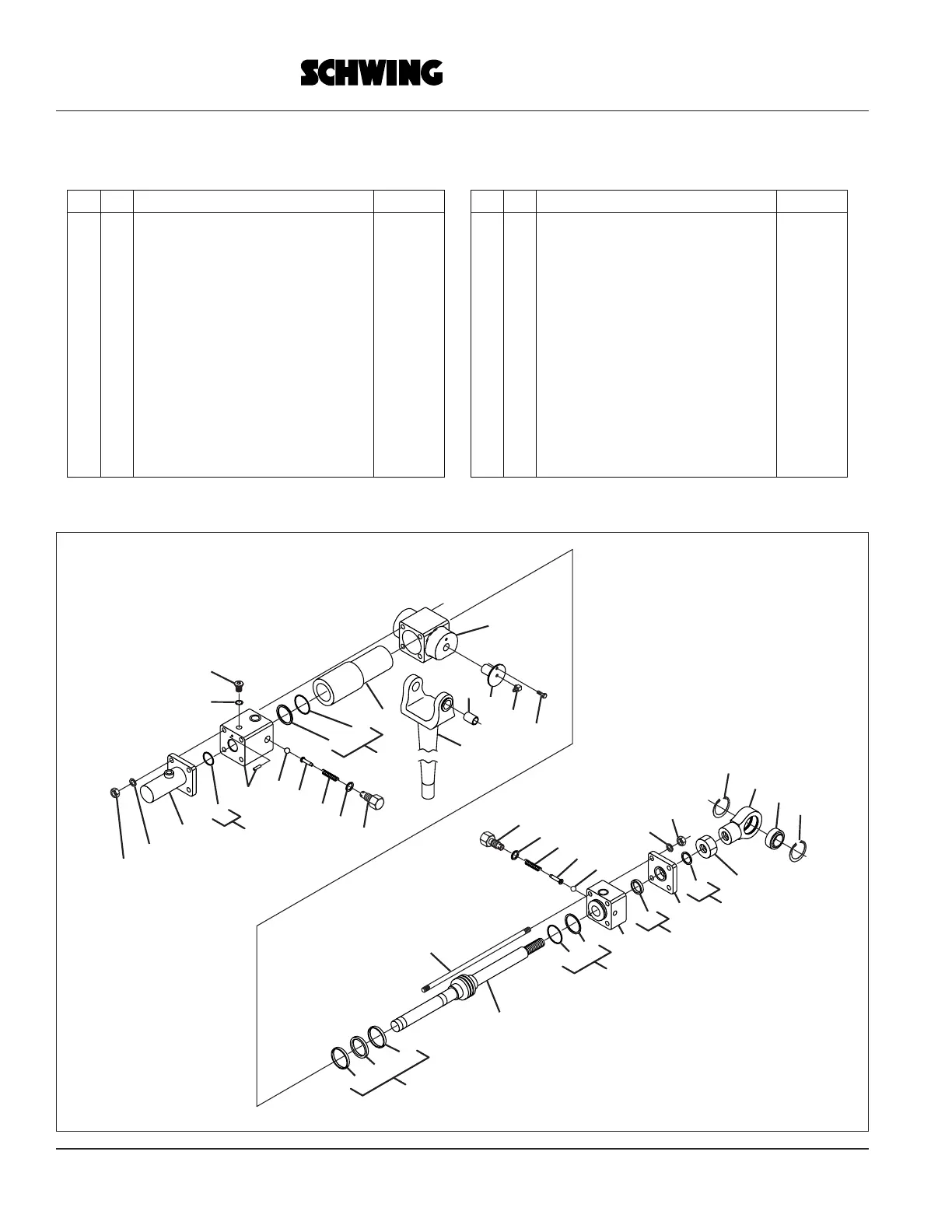

Rock Slewing Cylinder
Pos Qty. Description Part No.
1 1 SCREW DIN 908 R 3/8", 5.8 10001767
2 1 SEALING RING DIN 7603 A 17 X 21 CU 10003956
3 8 NUT DIN 6915 M 20, 10 10001232
4 8 DISC DIN 6916 M 21 C.45 10001509
5 1 PIPE PROTECTION 10017554
6 1 O-RING 56 X 4 10000749
7 1 CYLINDER HEAD 10017555
8 2 BALL STEEL 10006002
9 2 SPRING BOLT EV 105-0199 10017561
10 2 SPRING PRESSURE 10013054
11 2 SEALING RING DIN 7603 A 21 X 26 CU 10004056
12 2 VALVE PLUG EV 105-006C 10017562
13 2 O-RING 72 X 4 10000933
14 2 BACK-RING PTFE 80/73.6 X 1.5 10016238
15 1 CYLINDER PIPE 10017557
16 1 SLEWING PIVOT 10118218
17 2 BUSHING MB 3530 10006726
Pos Qty. Description Part No.
18 2 BOLT 10058467
19 2 GREASE NIPPLE DIN 71412 CM 10 X 1, 5.8 10007884
20 2 SCREW DIN 933 M 10 X 20, 8.8 10001855
21 1 CYLINDER BEARING 10058466
22 2 RING SAFETY 68 X 2.5 DIN 472 10016233
23 1 ROD EYE 10017560
24 1 BEARING ARTUCULATED GE 45 DO-2 RS 10019455
25 1 NUT HEX DIN 934 M 42 X 3 8 10017021
26 1 SCRAPER 45 X 44 X 7 P 6-45 10006804
27 1 RING TENSION 10017559
28 1 ROD SEALING R 32510055 45 X 60 X 11 10016236
29 1 CYLINDER HEAD 10094649
30 1 PISTON ROD 10017556
31 4 ANCHOR SCREW 20 X 570 M20 X 40 10.9 10016797
32 2 GUIDE BAND 9287 - 076.519 10016234
33 1 PISTON SEALING OMK - 5 - 80 10016235
34 1 SEAL KIT FOR SLEWING CYLINDER 10064756
1
2
4
3
5
6
7
13
14
34
15
31
21
17
18
19
20
16
13
14
30
33
32
8
9
10
11
12
34
34
34
22
23
24
22
25
3
4
27
28
26
29
8
12
11
10
32
34
34
9
