Schwing ROCK - Replacing the Kidney Seal

SERVICE TRAINING
Service Manual
12
Rock Valve
 
 

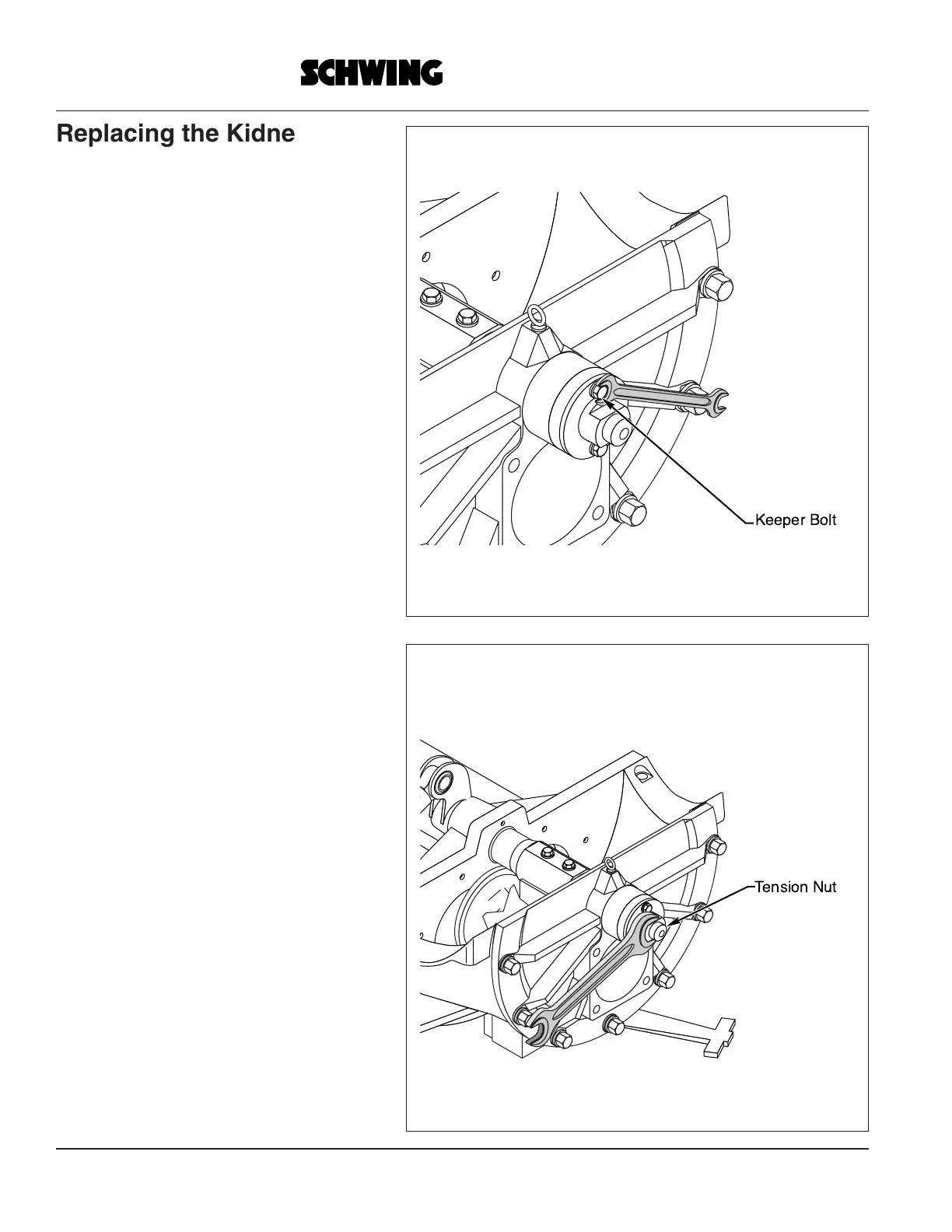

Replacing the Kidney Seal
Kidney Seal
1. Remove the Keeper Bolt from the Tension
Nut using a 24 mm wrench.
2. Remove the Tension Nut using a 60 mm.
wrench.
