SERVICE TRAINING
Service Manual
18
Rock Valve
 
 
2. Remove the Housing End Cover Bolts with a
36 mm. wrench.

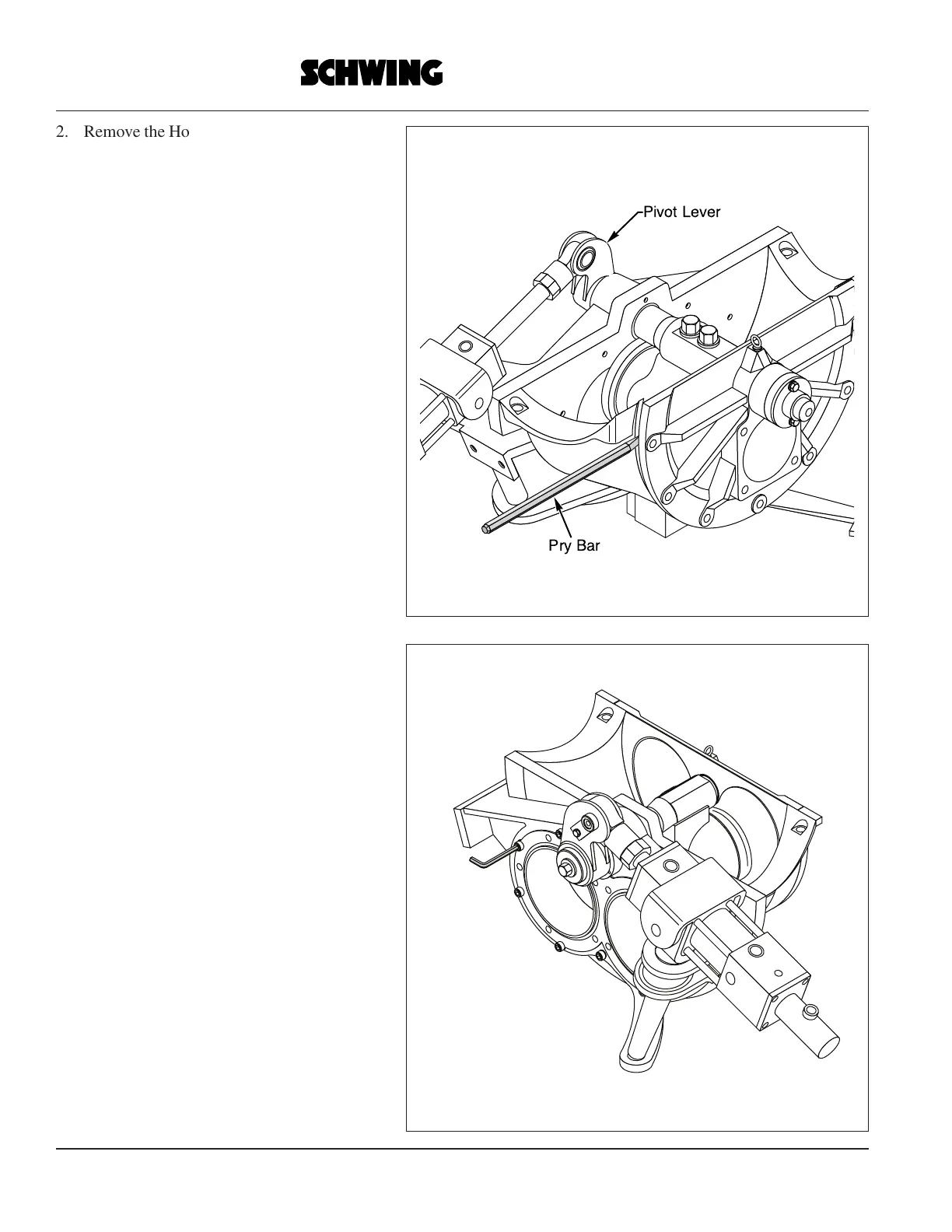

3. Pry the End Cover away from the Housing
Cover as far as the Pivot Lever will allow.
4. Using a 14 mm. allen wrench, remove the
socket head bolts that secure the plate.
