Schwing SC30 - Operation Status Indicators

5.2-24
005.050.01-EN
11. OPERATION STATUS INDICATORS
11.1 TRANSMITTER

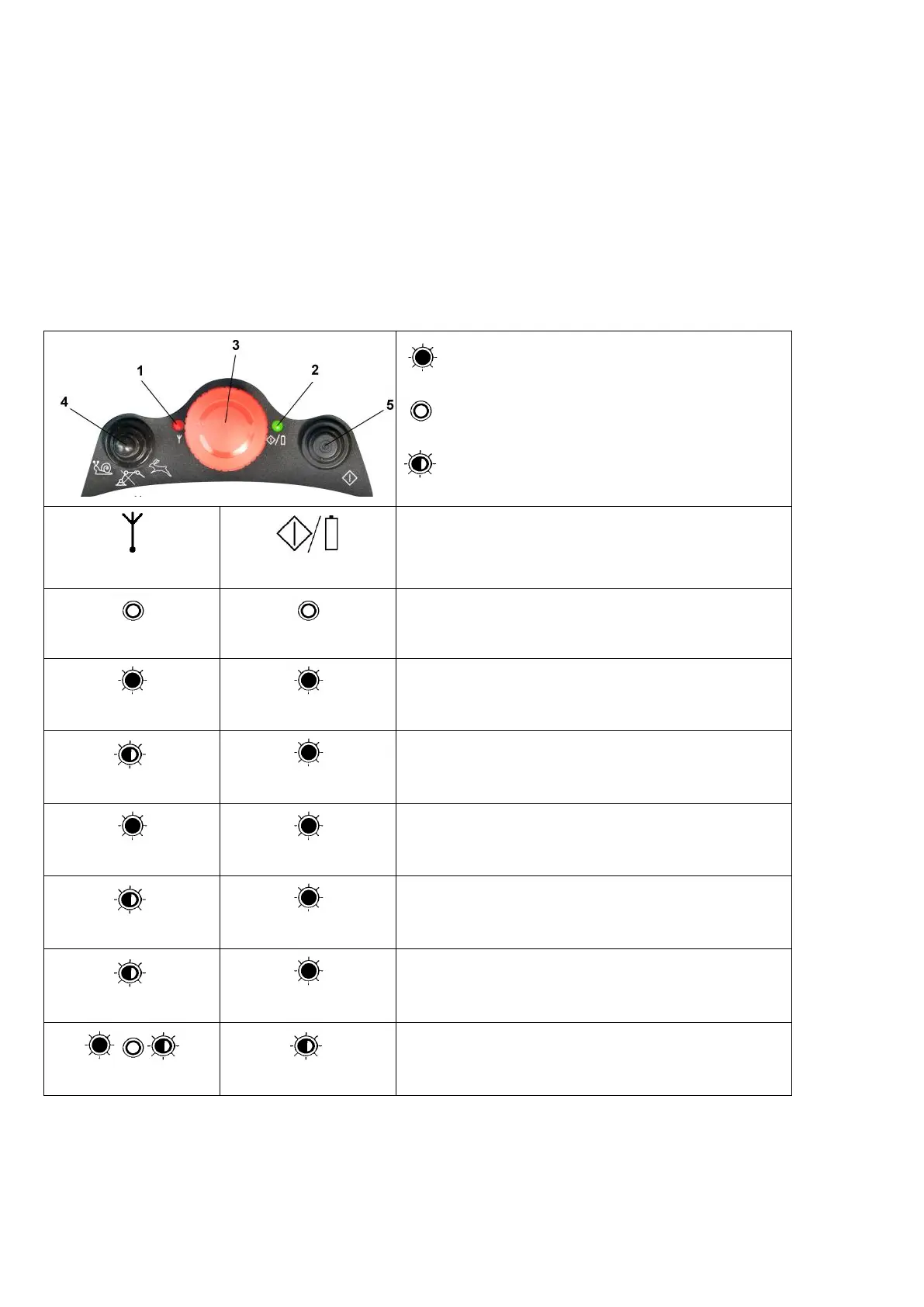

Light-emitting diodes "Antenna" 1 and "Voltage" 2 are multifunction indicators informing the operator
about different states of operation. The diodes can be lit up green or red.
= ON
=OFF
= FLASHING
"Antenna" (1)
"Voltage" (2)
STATUS
OFF
OFF
transmitter off
green, on
green, on
transmitter ready for operation no function activated
(basic position)
green, flashing
green, on
one or more functions actuated; transmitter sending
control data
red, on
green, on
transmitter on, but no contact with receiver
red, flashing
red, on
transmitter on and active transmission of control com-
mands blocked by safety function
red, flashing
red, on
transmitter on and joystick actuated; no enable from
selector switch S 11
any signal possible
red, flashing
transmitter low battery; change battery within 30
minutes before transmitter shuts off
