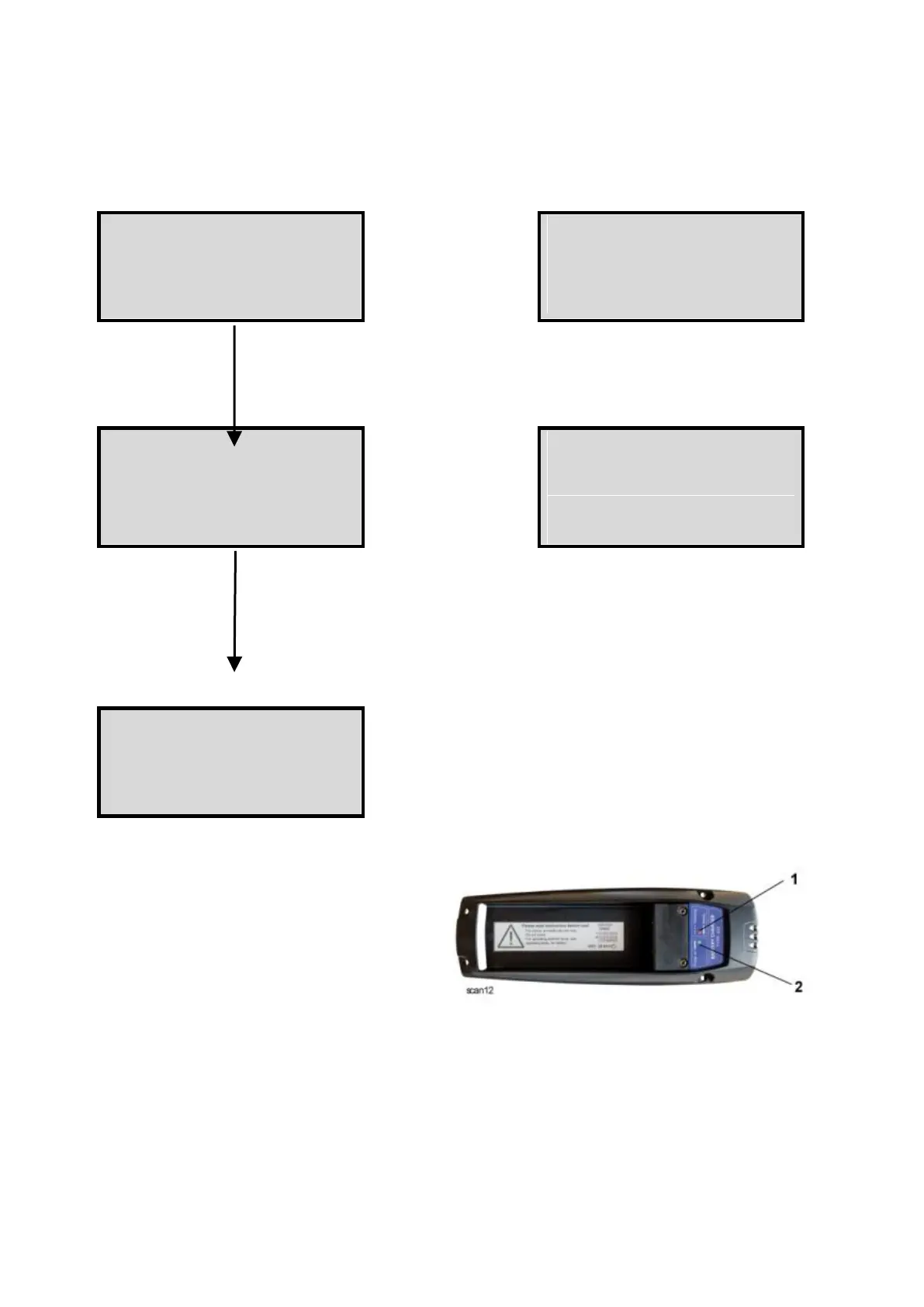

Charging cycle of the charger (Fig. 1)
Quick charge for 10 minutes:
- green LED flashing
- red LED on
battery defective
Charger passing into sleep
mode:
- green LED off
- red LED on
battery OK
Quick charge for 2 to 3 hours:
- green LED flashing
- red LED on
battery not
completely charged
after 3 hours
Charging stopped by safety
function:
- green LED on
- red LED on
battery completely charged after
3 hours
Trickle charge:
- green LED on
- red LED on
Charging via the link cable
When the link cable is connected, the trans-
mitter battery is charged from the truck battery
via the receiver and the cable.
