Service Manual
VECTOR CONTROLLER-SERVICE MANUAL 45
9. If the boom is not moving, you should increase the
percentage to this function by activating the
throttle switch (Figure 27) to the “+” position.
Each time you tap the switch the duty cycle
percentage will increase by 1%.
10. When the boom just begins to move, you have
attained the required MIN signal, and you will be
required to push up on the horn switch (Figure 25)
to store the number. If you release the joystick
before beeping the horn, the percentage will revert
to where it was when you began. After you store
the information for “#1 boom extend MIN” the
screen will display a single mark in the “A”
column as shown in Figure 28.
11. If you felt that the boom took off too fast when the
joystick was activated and the percentage needs to
be decreased, tap the throttle switch (Figure 27) to
the “-” position until the boom responds as you like
and store with the horn button as explained in the
previous step before releasing the joystick.
12. You should now activate the #1 boom joystick to
the retract position and adjust the percentage the
same way you did for extend. After storing the
parameter with the horn switch, the display should
look like Figure 29.
13. You now have the option of continuing on to set the
MIN on the other boom sections or moving the
Rabbit/Snail switch to the Rabbit position (Figure
30) and set the MAX for boom #1 as follows.
NOTE!
Setting the MAX parameters requires
opening the hydraulic enclosure to gain
access to the boom hand valve (Figure 31).
This procedure applies to all units except
the 45/47 meter units, which have no visible
hand valve handles to view. The MAX
parameter on those units must be set by
checking the boom times found in the
Specication section of the operation
manual and operating each boom section to
monitor those times.

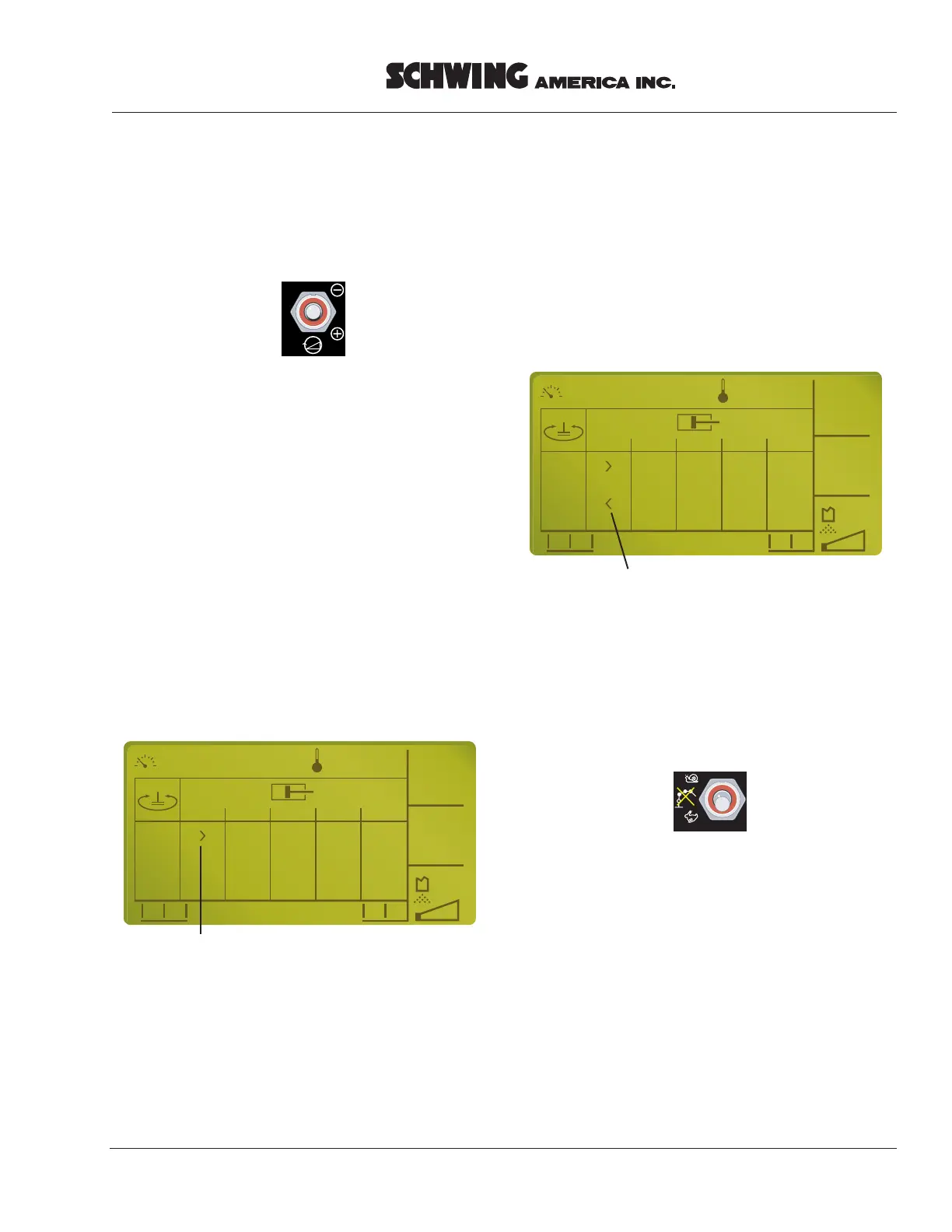

vectorthrtlpicto.eps
Figure 27
Throttle switch on remote box
extendstored.eps
Teach Mode
EDCBA
1760 rpm 52 ˚C
OK
Teach
mode!
Extend MIN
stored
Figure 28
Boom #1 extend MIN stored
minretractstored.eps
Teach Mode
EDCBA
1760 rpm 52 ˚C
OK
Teach
mode!
Retract MIN
stored
Figure 29
Boom #1 retract MIN stored
rabbitspeed.eps
Figure 30
Rabbit speed
