Schwinn 170 - Install Handlebars on Console Mast

9

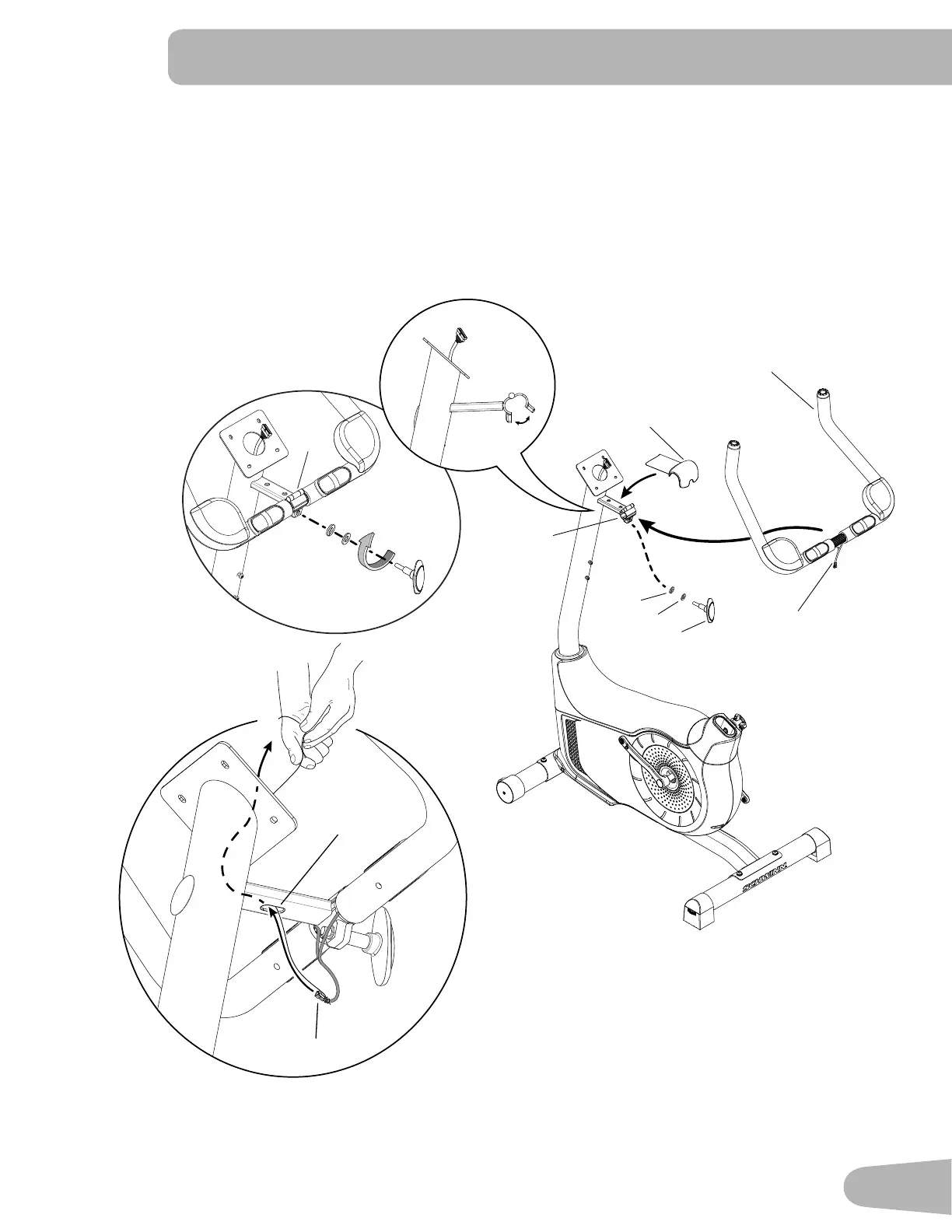

3. Install Handlebars on Console Mast
NOTICE:Donotcrimpthecables.PuttheHandlebar(7)inthebracket(6a),adjusttheHandlebartothedesiredangle,
and install the T-handle (E) through the holes. Use the pull cable in the Handlebar Mount to route the HR
cable (7a) through the slot (6c) under the Handlebar Mount to the top of the mast. Fully tighten the T-handle
to keep the Handlebar in position. Push the cover (16) into position on the Handlebar Mount.
7
6a
16
E
6a
E
D
B
7
6a
D
B
7a
E
7a
7
6c
