Aligning the Brake Pads
Tools: 5 mm Allen wrench
Pad alignment should be done before centering.
improper alignment can cause centering issues. For
example the pad could be touching the tires or part of
the pad may be contacting the rim.

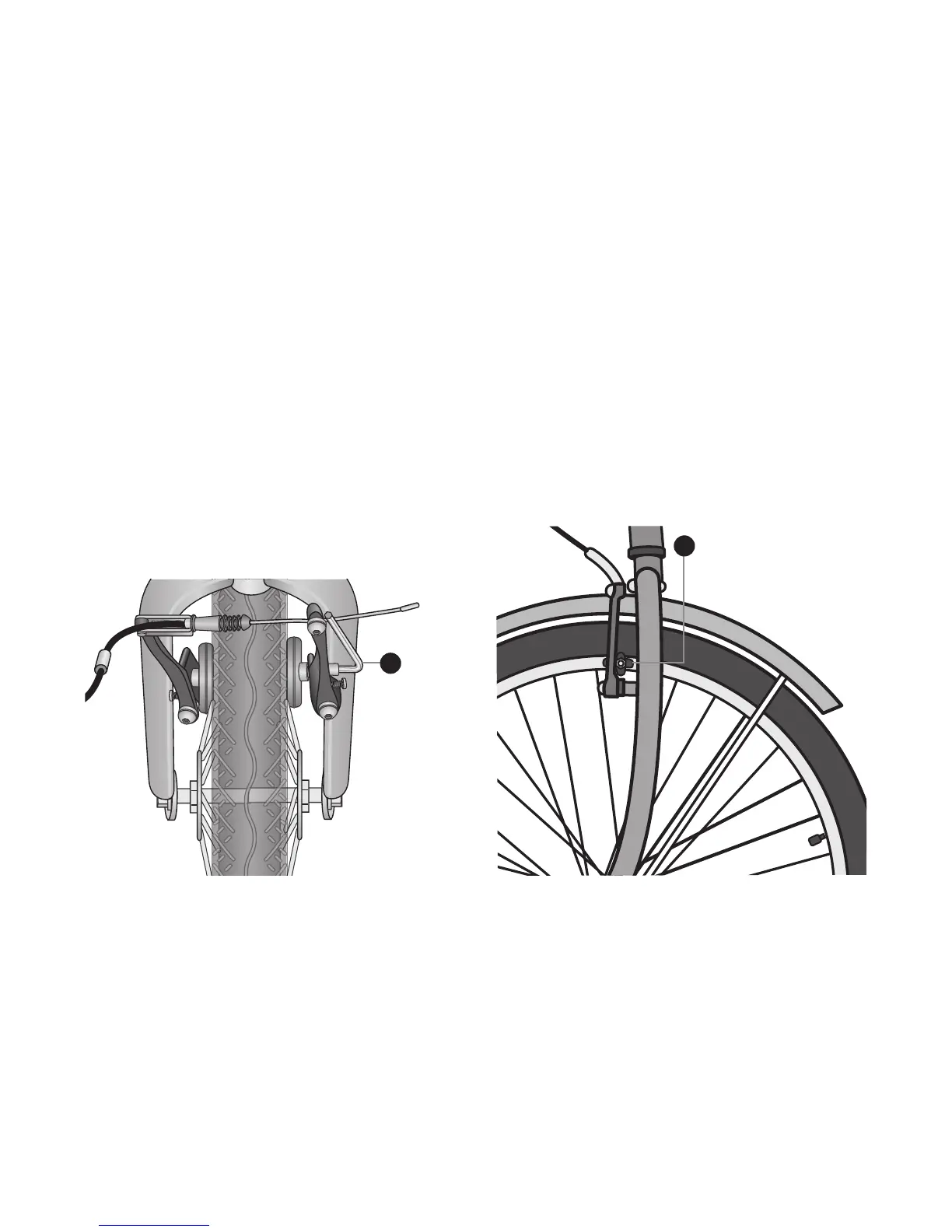

1. Check for proper brake pad alignment on the wheel
rim. If necessary, adjust the position or rotation of
the pads.
2. Using a 5 mm Allen wrench, loosen the screw
holding the pad.
3. Move and rotate the pad so it is centered on the rim
and parallel with the ground.
4. After properly positioning the pad tighten the screw.
2
allen wrench
loosening
brake pad
screw
brake pad is properly
centered on the wheel rim
3
