Schwinn 430 - Maintenance Parts Identification

39
Maintenance Parts
W
X
Z
AA
Y
A
G
C
B
D
E
F
H
I
M
N
O
P
K
L
S
U
V
T
BB
EE
J
DD
GG
FF
HH
II
R
Q
M
CC
CC

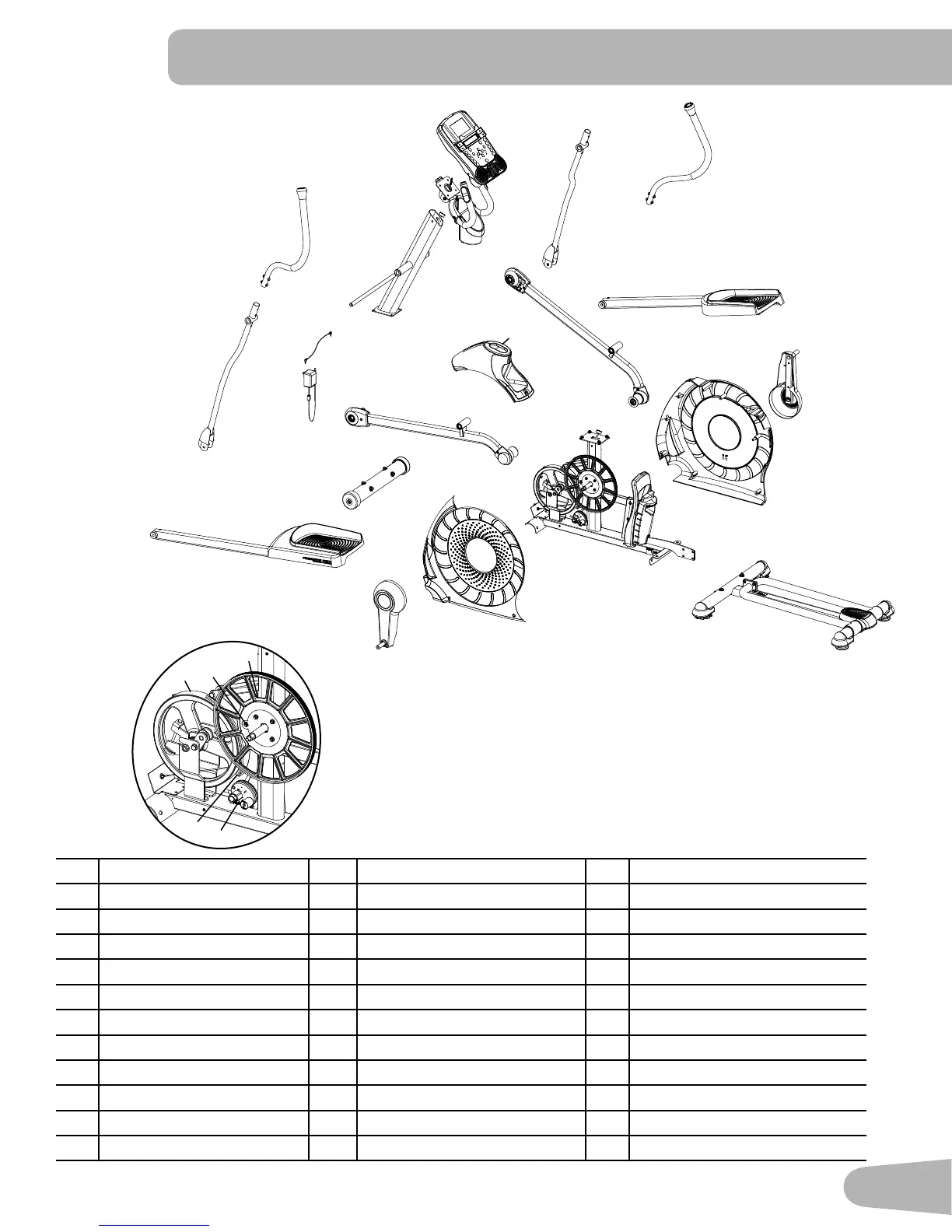

A Console M Roller Y Fly Wheel
B Heart Rate Cable, Upper N Leg, Right Z Speed Sensor Magnet
C Handlebar, Static O Shroud Cap AA Speed Sensor
D Console Cable, Upper P Shroud, Upper BB Pedal Arm, Left
E Arm Pivot Rod Q Console Cable, Lower CC Transport Wheel
F Console Mast R Incline Assembly DD Front Stabilizer
G Water Bottle Holder S Frame Assembly EE Leg, Left
H Handlebar Arm, Lower Right T Rail Assembly FF AC Adapter
I Handlebar Arm, Upper Right U Shroud, Left GG MP3 Cable
J Pedal Arm, Right V Crank Assembly, Left HH Handlebar Arm, Lower Left
K Crank Assembly, Right W Servo Motor II Handlebar Arm, Upper Left
L Shroud, Right X Brake Assembly JJ
Silicone Lubricant, Bottle
