Schwinn 470 - Console Assembly Steps

11. RemoveHardware from Console
NOTICE: Do not crimp the cable.
Note: Hardware is pre-installed and not on the Hardware Card. *
#2
5

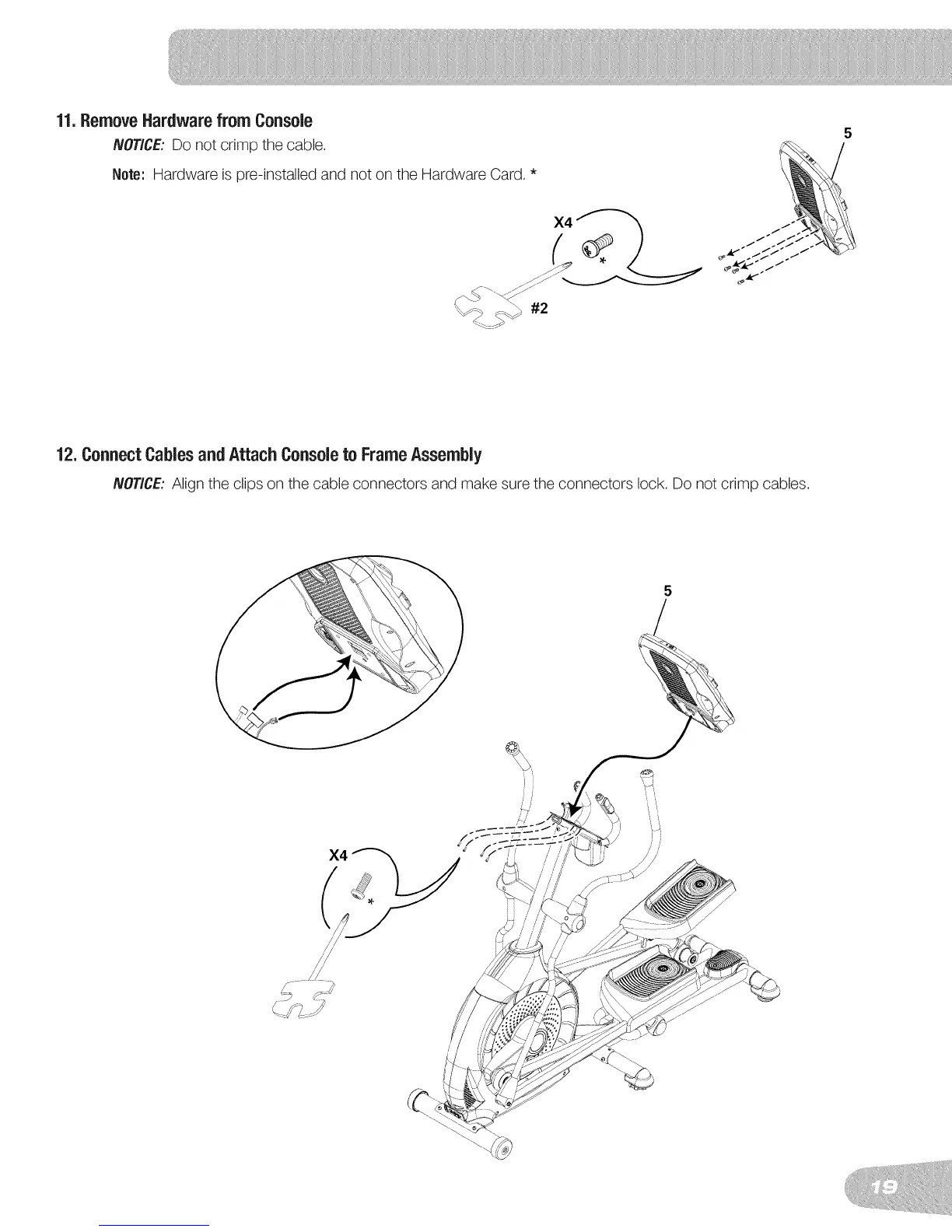

12. Connect Cables and Attach Console to Frame Assembly
NOTICE:Align the clips on the cable connectors and make sure the connectors lock. Do not crimp cables.
5
