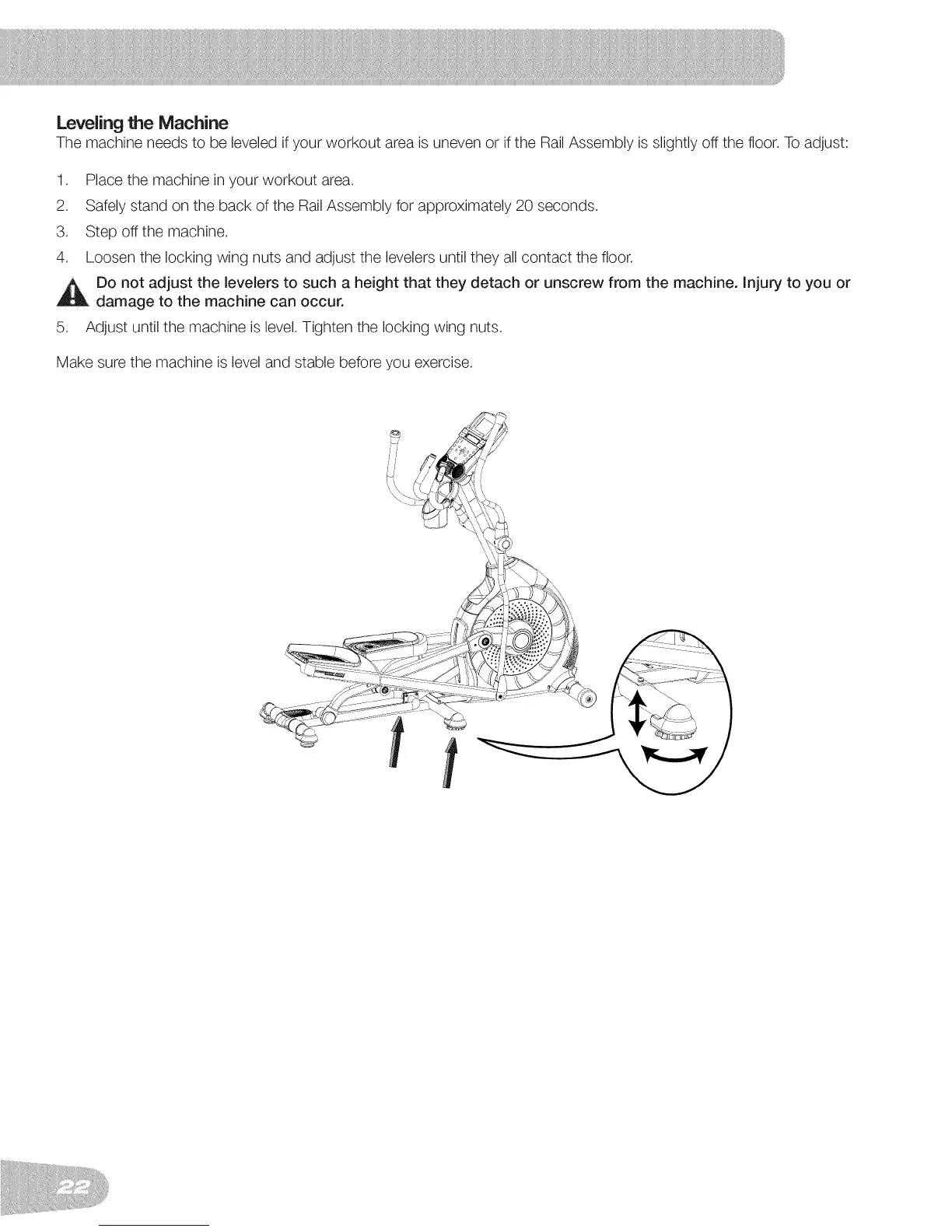

Leveling the Machine
The machine needs to be leveled if your workout area is uneven or if the Rail Assembly is slightly off the floor. To adjust:
1. Place the machine in your workout area.
2. Safely stand on the back of the RailAssembly for approximately 20 seconds.
3. Step off the machine.
4. Loosen the locking wing nuts and adjust the levelers until they all contact the floor.
Do not adjust the levelers to such a height that they detach or unscrew from the machine, injury to you or
damage to the machine can occur.
5. Adjust until the machine is level. Tighten the locking wing nuts.
Make sure the machine is level and stable before you exercise.
\
\\\
!
