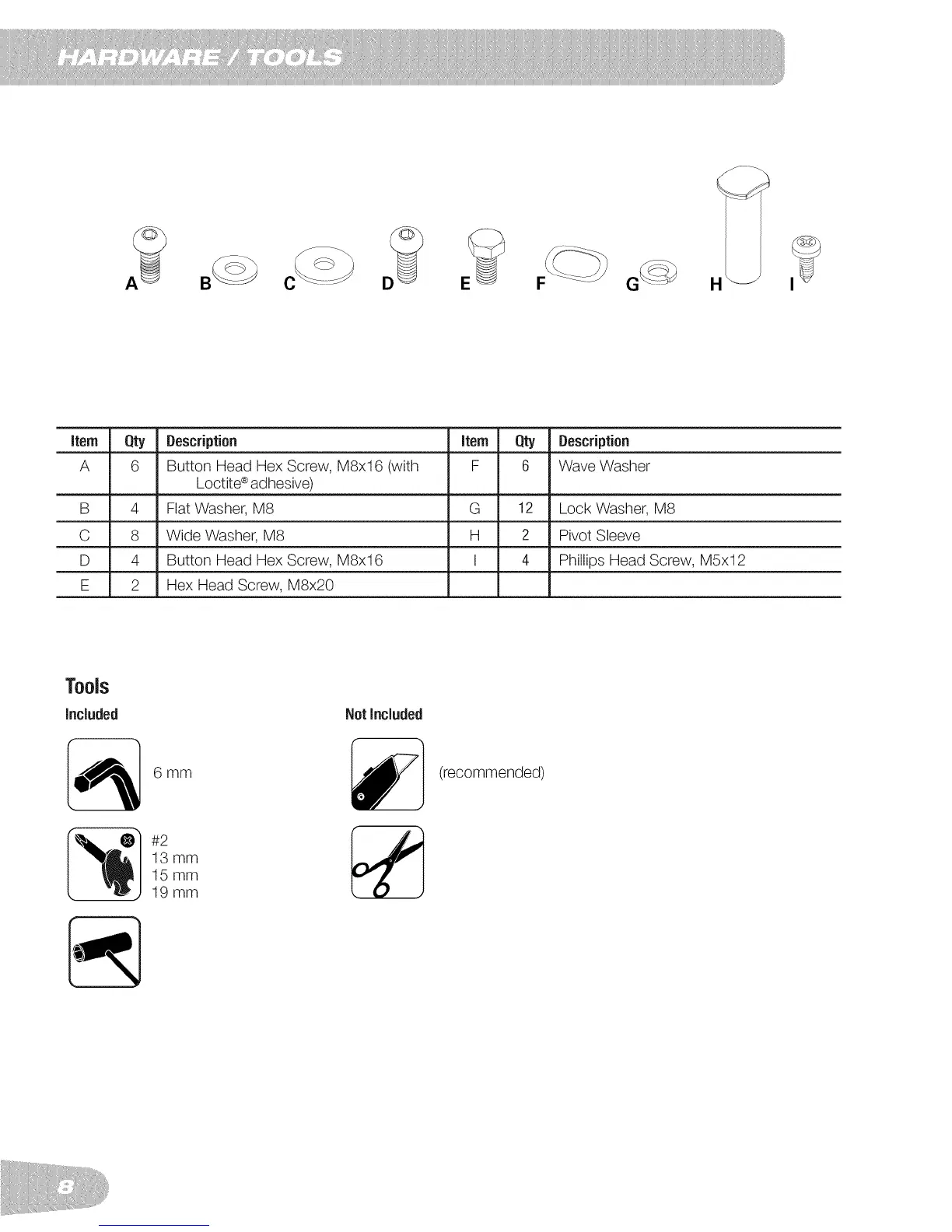

Qty Description item Qty Description
6 Button Head Hex Screw, M8x16 (with F 6 Wave Washer
Loctite®adhesive)
B 4 Flat Washer, M8 G 12 Lock Washer, M8
C 8 Wide Washer, M8 H 2 Pivot Sleeve
D 4 Button Head Hex Screw, M8x16 I 4 Phillips Head Screw, M5x12
E 2 Hex Head Screw, M8x20
6mm
#2
13 mm
15 mm
19 mm
NotIncluded
(recommended)
