Schwinn 470 - Parts

21
,y
',,,',\
15
17
13
11
10

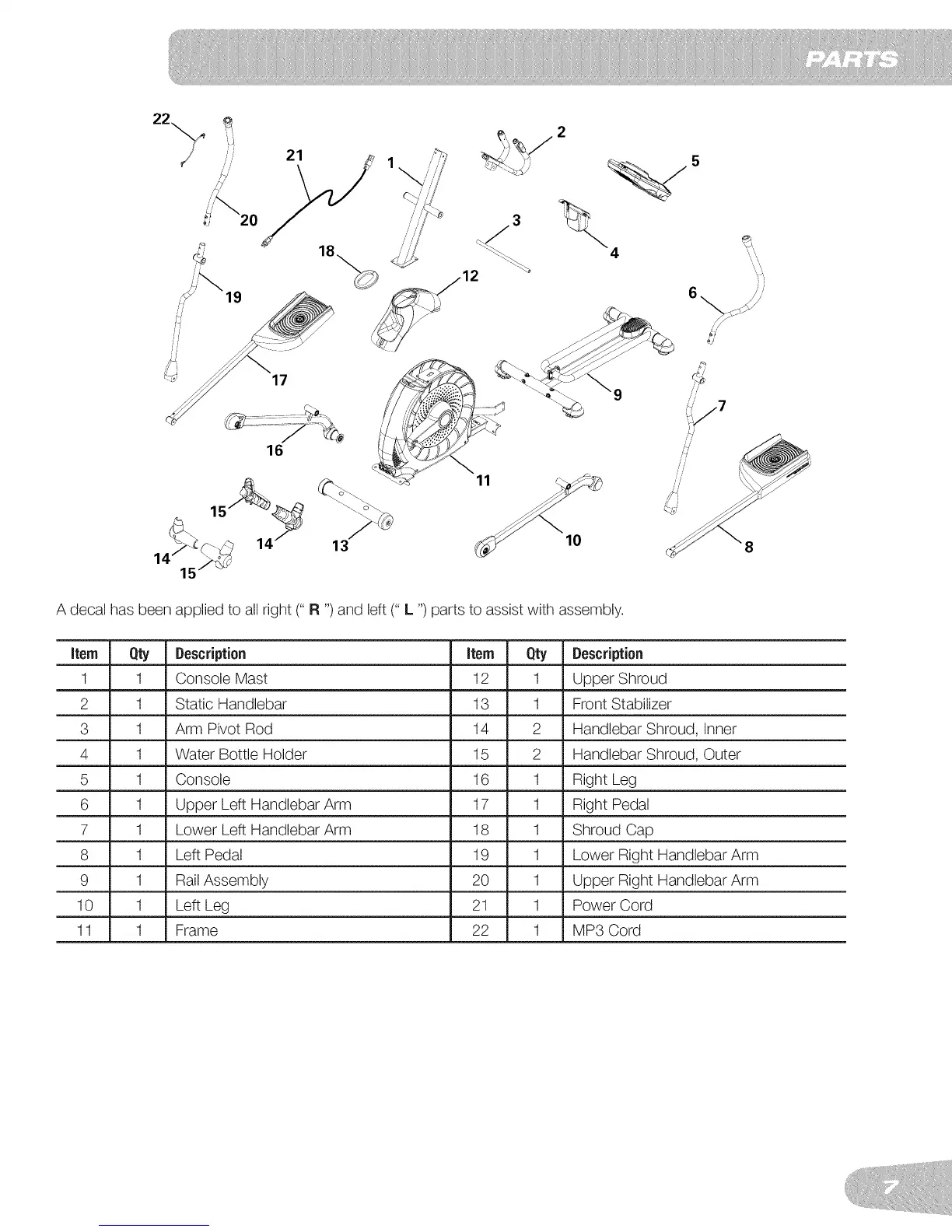

A decal has been applied to all right (" R ") and left (" L ") parts to assist with assembly.
//
/'/
Item Qty Description Item Qty Description
1 1 Console Mast 12 1 Upper Shroud
2 1 Static Handlebar 13 1 Front Stabilizer
3 1 Arm Pivot Rod 14 2 Handlebar Shroud, Inner
4 1 Water Bottle Holder 15 2 Handlebar Shroud, Outer
5 1 Console 16 1 Right Leg
6 1 Upper Left Handlebar Arm 17 1 Right Pedal
7 1 Lower Left Handlebar Arm 18 1 Shroud Cap
8 1 Left Pedal 19 1 Lower Right Handlebar Arm
9 1 RailAssembly 20 1 Upper Right Handlebar Arm
10 1 Left Leg 21 1 Power Cord
11 1 Frame 22 1 MP3 Cord
