3.0 Setup |7
3.0 Setup |7

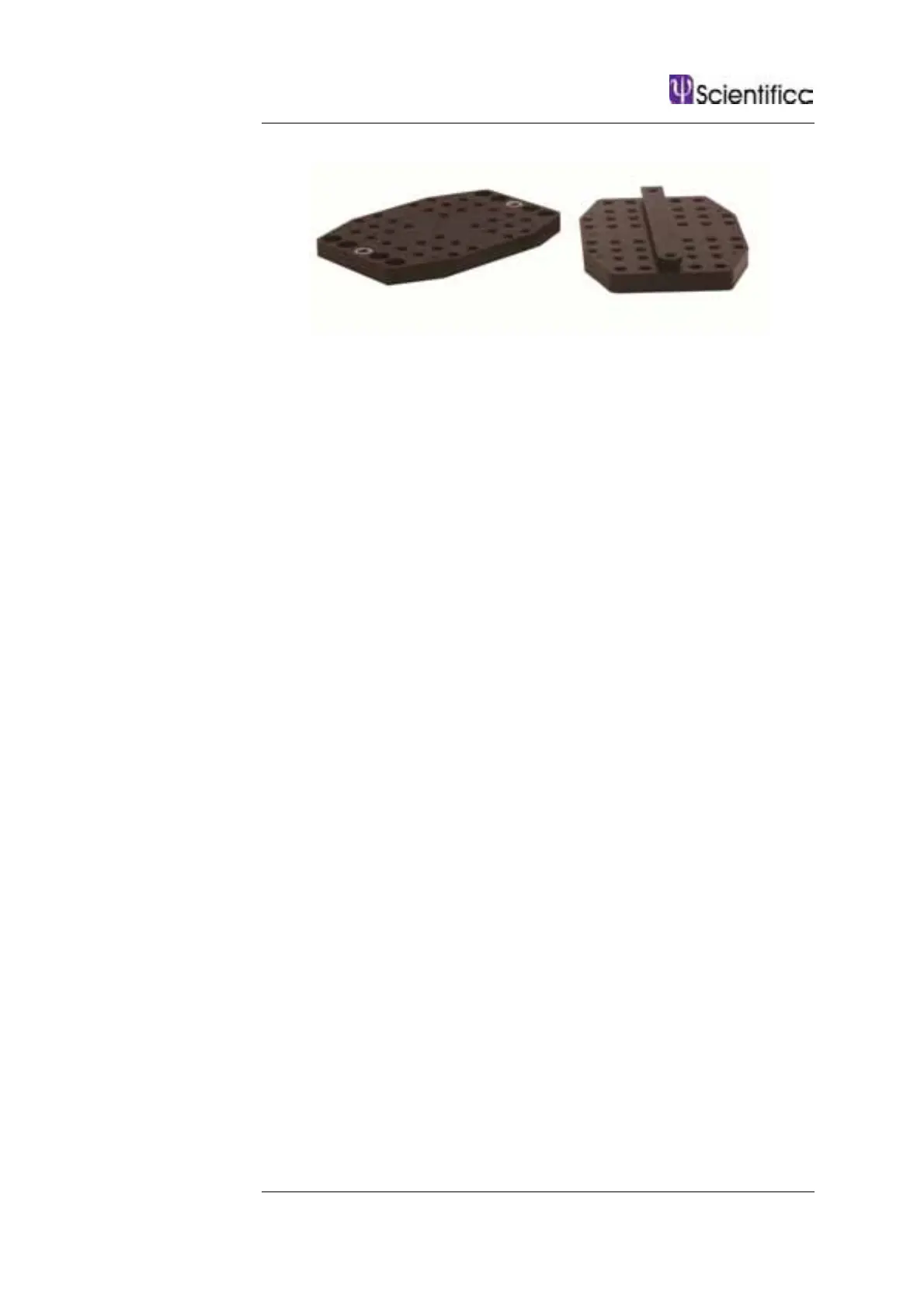

Figure D: Mounting carriages.
T
he right-hand carriage is inverted to reveal a T-bar
mounted in the central lateral position.
To fit the mounting carriages to the top plate, loosen but do not remove
the bolts holding the T-bar in place using the supplied hex key. Slide the
carriage onto the top plate from the outer edge.
When in position, retighten the T-bar bolts to secure the carriage in
place. It is important to complete this step to ensure complete stability.
