7.0 Specifications
Number of axes 2
T
ravel 50 mm
Electrical Resolution 20 nm
Step size 0.1 µm
Speed (minimum) 1 µm per second
(maximum) 4 mm per second
Temperature range Operation 15 to +40ºC
Storage 0 to +60ºC
Memory Positions Up to 50 using the Control Device
Unlimited via LinLab
Bearings Crossed roller

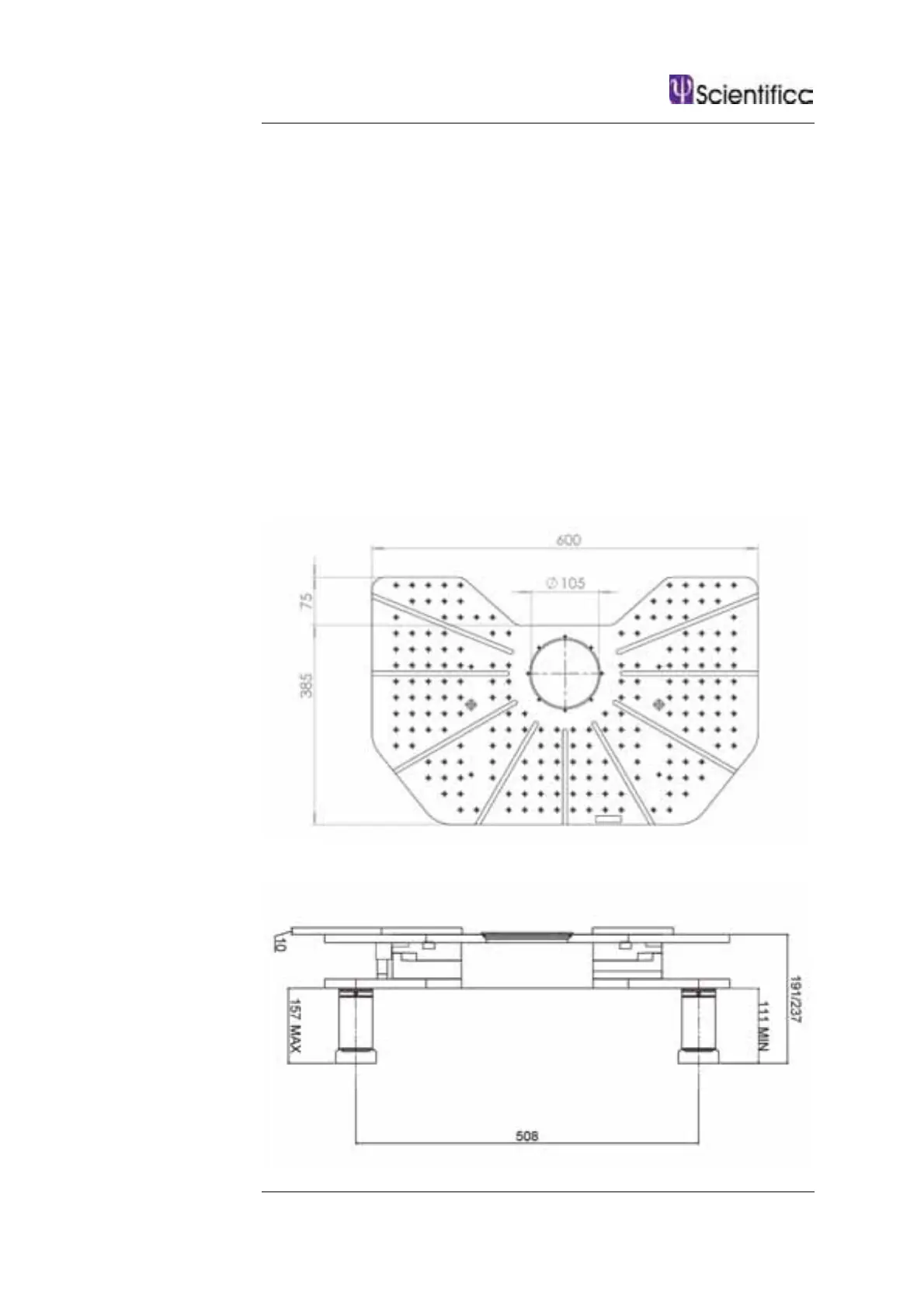

7.1 Top plate schematics
All dimensions are in mm.
A
ll top plates have a depth of 15 mm.
Figure G: Top plate
Figure H: Front view
