13
Ensure that the speed toggle switch is set to fast mode (and that a suitable speed
has been set in the LinLab software) and that the approach toggle switch is set to the
O position
Check all cables and connectors for damage or loose connections
7.0 Specifications
Supply voltage range NA*
Supply frequency NA*
Power/current rating NA*
* indicates that this unit on its own is not functional and needs to be connected to a Control
Rack for normal operation
Number of axes 2 (3 with optional Z focus)
Travel 50 mm
Electrical Resolution 20 nm
Step size 0.1 μm
Speed (minimum) 1 μm per second
(maximum) 4 mm per second
Temperature range Operation 15 to +40ºC
Storage 0 to +60ºC
Memory Positions Up to 50 using the Control Device
Unlimited via LinLab
Bearings Crossed roller

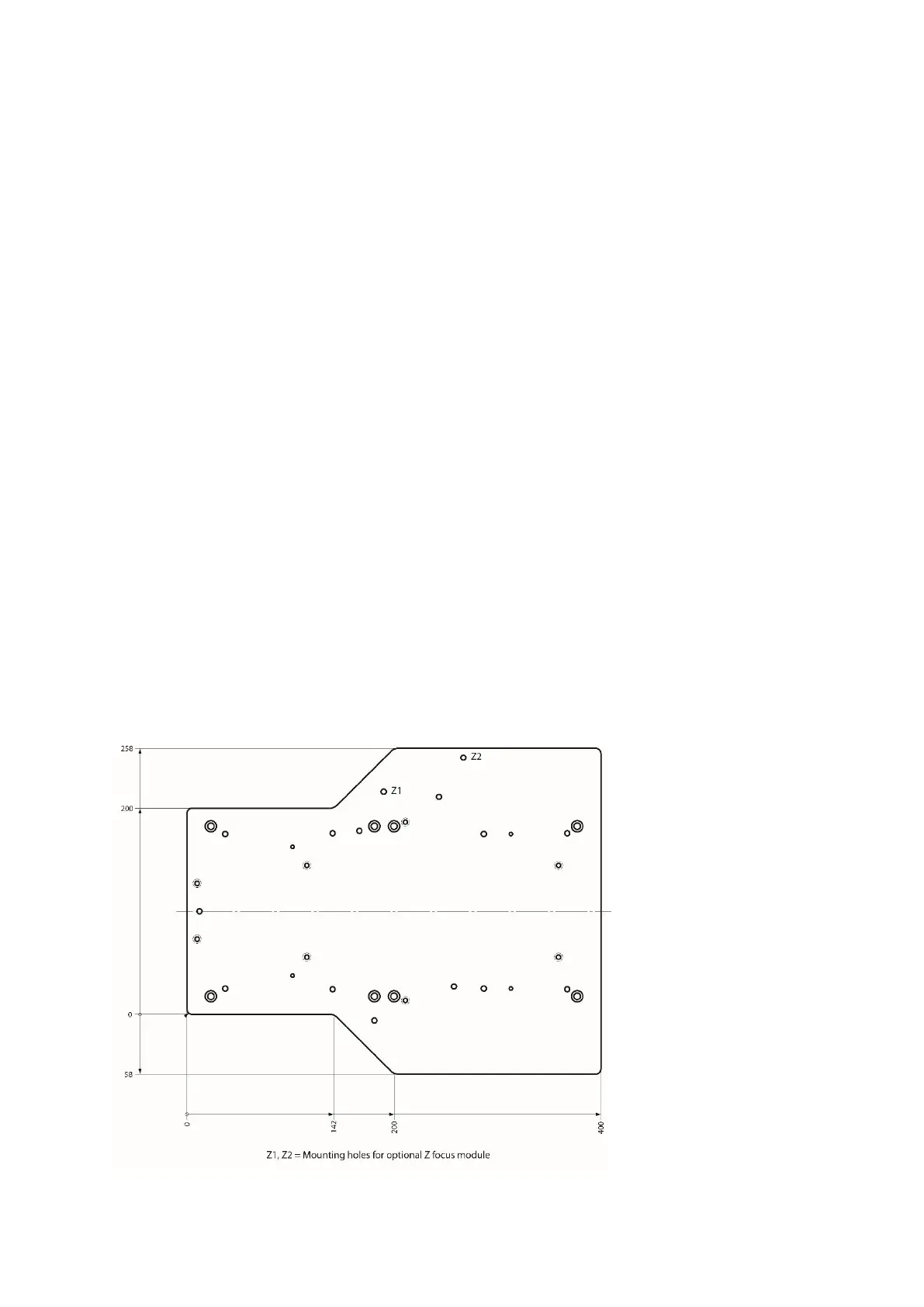

Dimensional diagram:
Figure E: Universal top plate dimensions*
