Scientifica UMS - Product Walkthrough

3
Note: The design of the top plate of the UMS will differ depending on the
microscope that will be mounted on it.
When used with Scientifica’s Slicescope the UMS is a simple rectangle shape, when used
with other manufacturer’s microscope such as Olympus or Nikon it will feature a “winged” top
plate to accommodate the footprint of the microscope (See figure A).

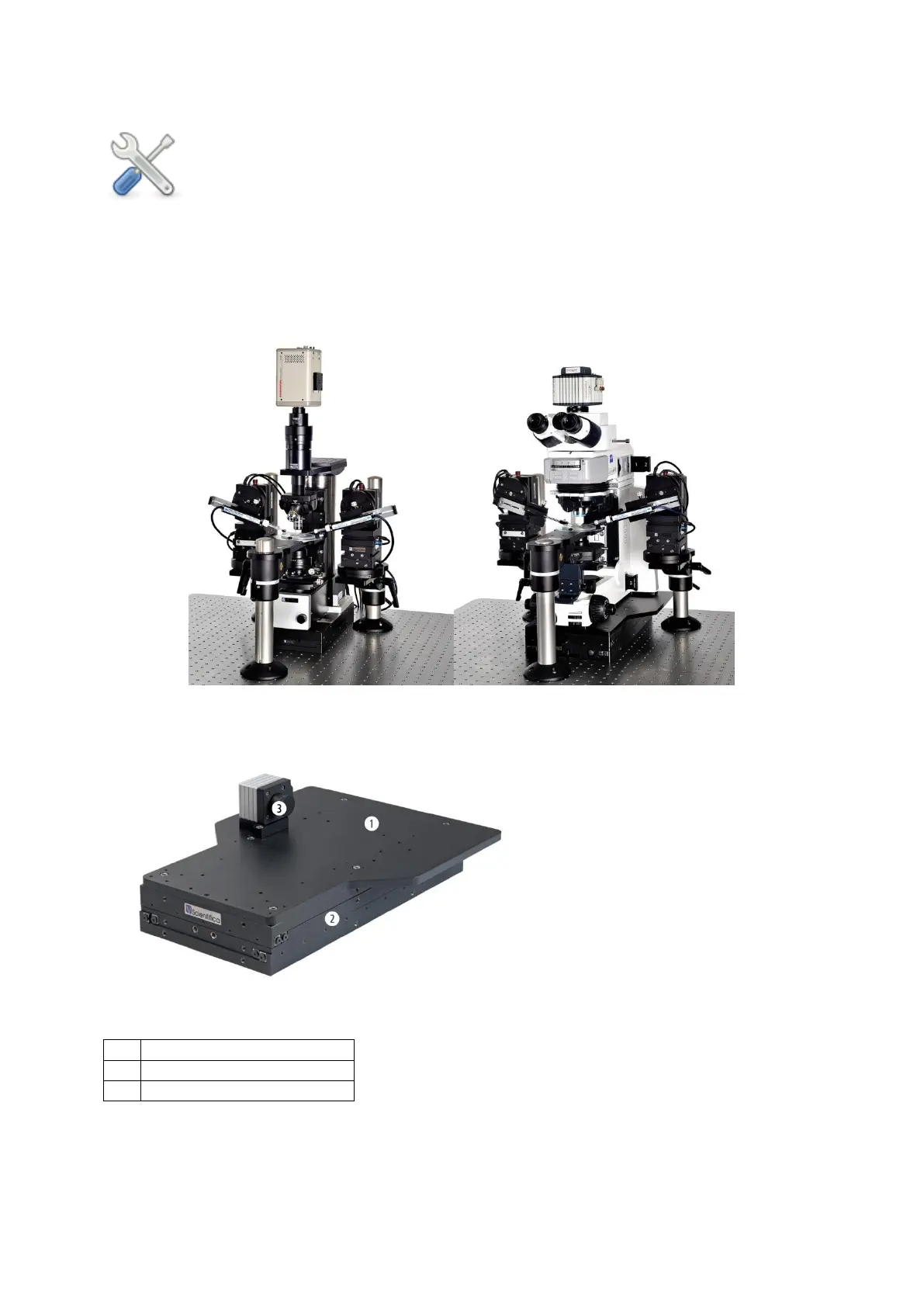

Figure A: Examples of UMS model variants
1.2.2 Product walkthrough
Figure B : UMS with key components indicated
1
UMS Top Plate*
2
Motorised Stage section
3
Optional Z focus module
* Design of the UMS top plate will differ
depending on the microscope that will be
mounted on it.
