1.1.3 Assembly

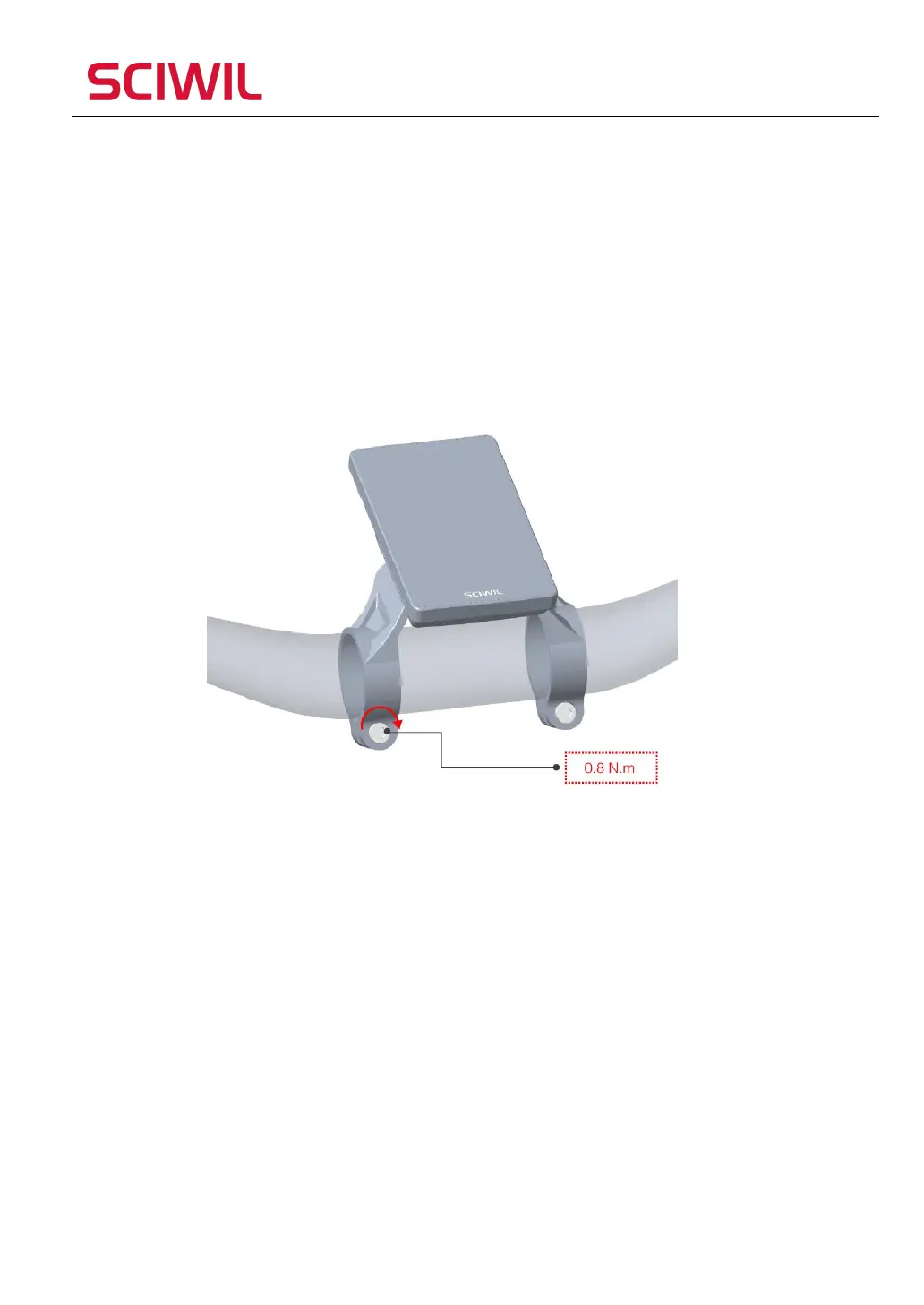

1.1.3.1 Open the holder ring/rubber spacer of the display and fix the display on the
handlebar, adjust it to a proper facing angle. Use a M4 Hex Wrench to fix and
tighten the screws. Standard fixing torque: 0.8N·m.
*Damage due to extra fixing torque is not covered by warranty.
1.1.3.2 Plug the 5-pin connector of the display to the coupling connector of the
Controller.
1.2 Working Voltage and Cable Connection
1.2.1 Working Voltage
DC24V-72V compatible，other working voltage level can be customized.
