1.2.2 Connection
Display to Controller Controller to Display Controller Connector

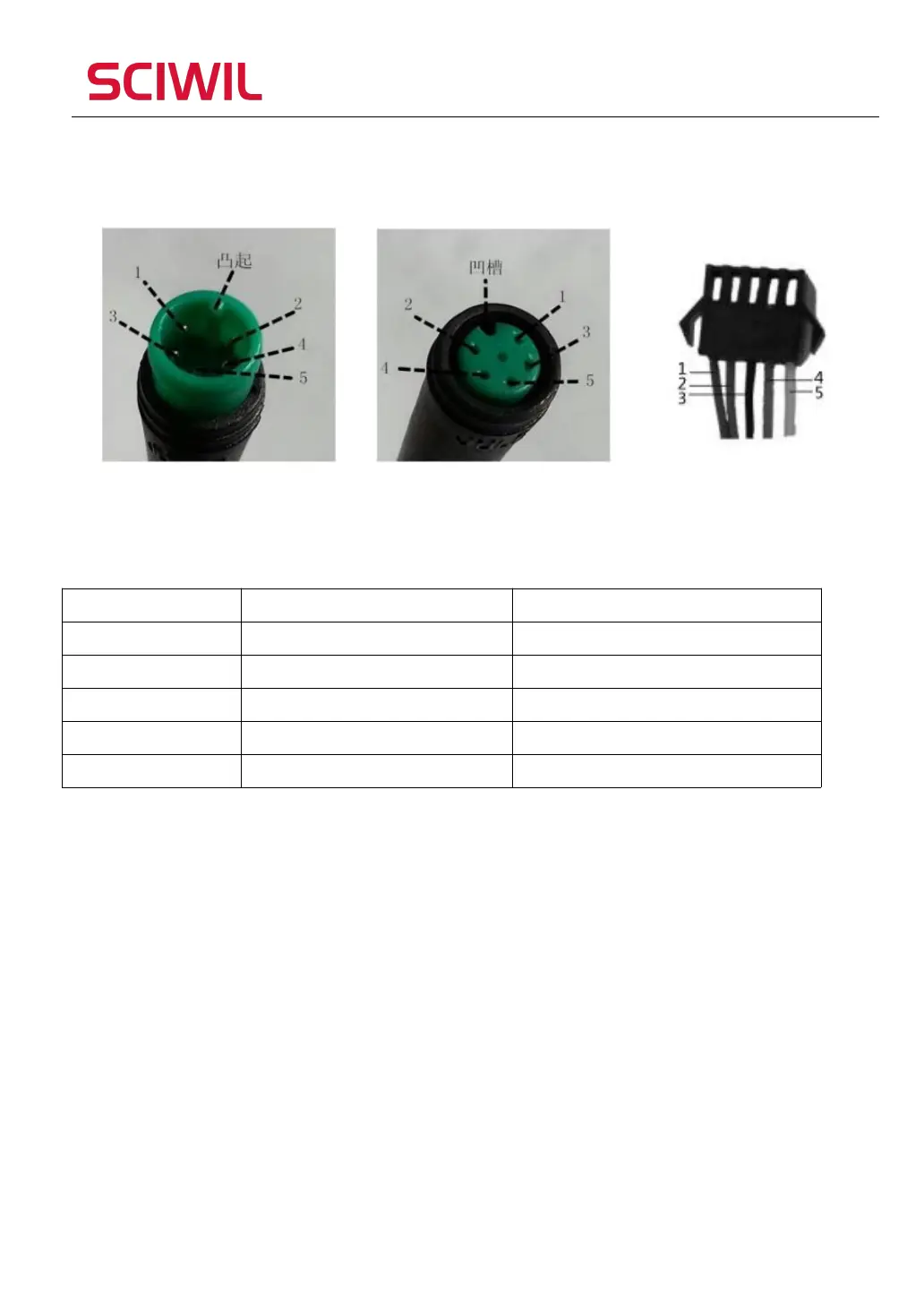

Standard Cable Connector Diagram
1.2.3 Extended Functions
Light: Brown (DD): The power wire (+) of the light
White (GND): The ground wire (〨) of the light.
*Note: Some products use waterproof connectors, in which internal wire
arrangements cannot be identified from the exterior.
1.2.4 Specifications
1.2.4.1 Working Voltage: DC 24V/36V/48V/60V/72V
1.2.4.2 Rated Working Current: 12mA
Sequence No.
Wire Color
Functions
1
Red(VCC
Display Power Cable
2
Blue(K)
Controller Power Cable
3
Black(GND
Display Ground Cable
4
Green(RX
Display Data Receiving Wire
5
Yellow(TX)
Display Data Sending Wire
