SCIWIL M58-LCD - Standard Display Interface

-
8
-
Changzhou Sciwil E-Mobility Technology Co., Ltd.
9
th
Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: +86 519-85602675 Tel: +86 519-85600675
1.3.3 Standard Display Interface

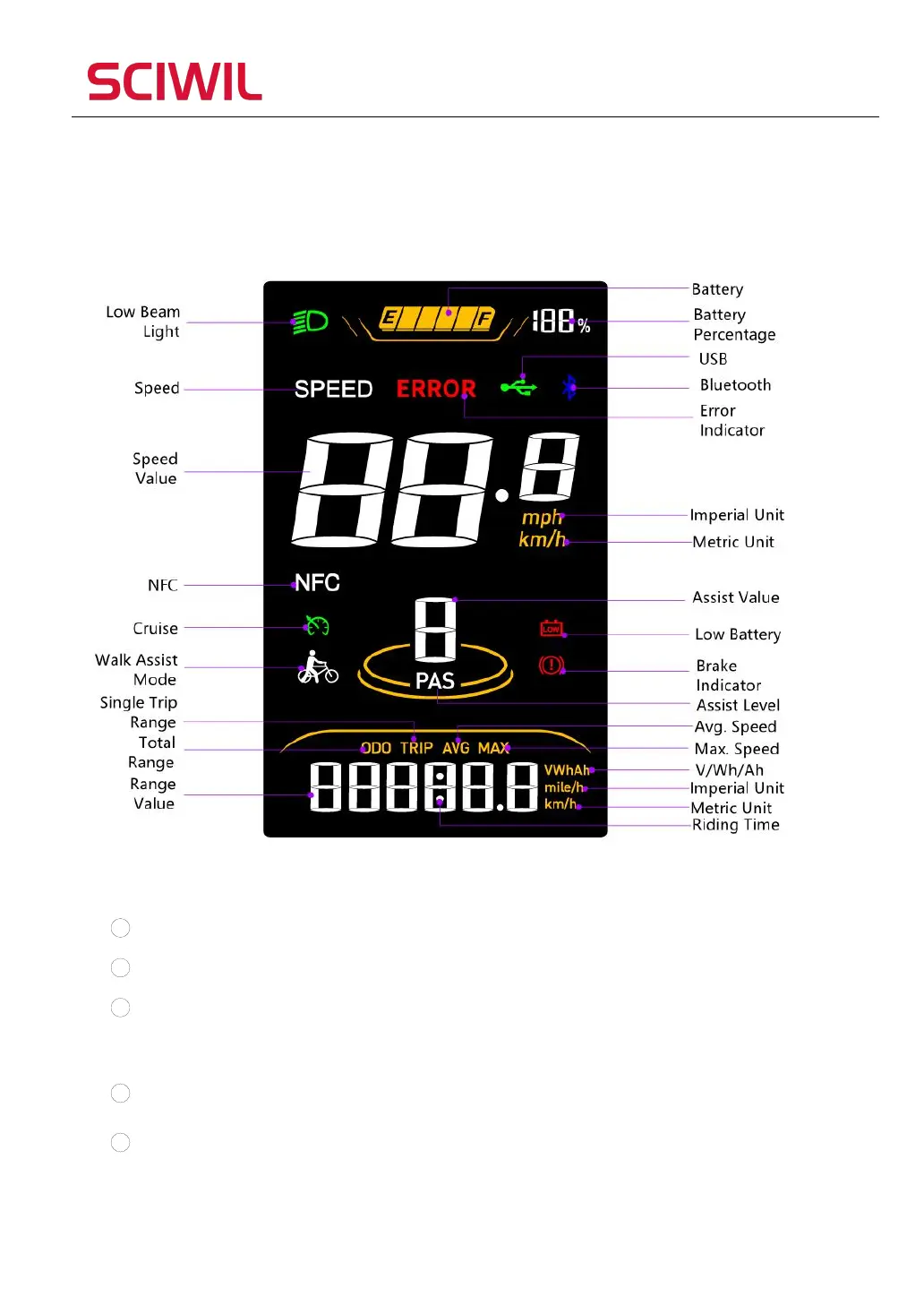

1.3.3.1 Interface Overview (display at start for 1s)
1.3.3.2 Introduction of Interface:
1 Front Light Indication：shows icon when the front light is turned on by display
2 Battery Indication：the current battery level
3
Multi-Function Section: Digital Voltage (VOL), Wh, Ah, Total Range
(max. 99999.9), Single Trip Distance (max. 99999.9), Riding Time (Time).
4
Assist Level and Walk Mode：Assist Level 3/5/9 levels, can be changed.
5 Real-Time Speed (RT SPEED)：current riding speed, unit: km/h or mph
Average Speed (AVG SPEED)：average riding speed, unit: km/h or mph
