13 Compressor Envelope

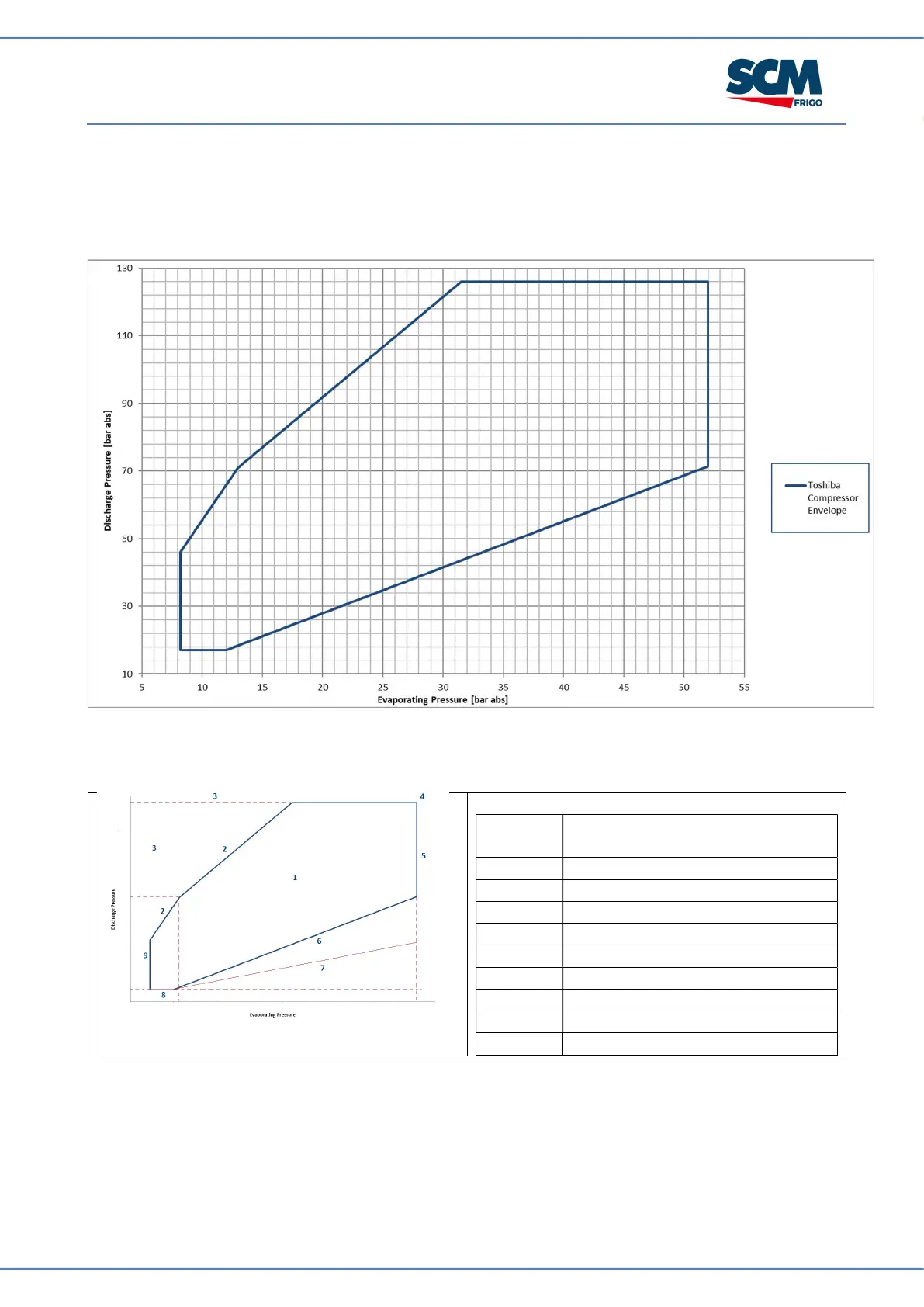

Compressor envelope zone consists in the safety area (Suction/discharge pressure) where compressor is

allowed to run without problem.

Envelope

Zone #

Description

1 Inside envelope

2 High compressor ratio

3 High condensing pressure

4 High current

5 High suction pressure

6 Low compressor ratio

7 Low delta pressure

8 Low condensing pressure

9 Low suction pressure
