Scotchman DO-150-24M - Optional Tools

PAGE 44
► CAUTION: MOVE ALL TOOLS OUT FROM UNDER THE
UPPER ARM WHEN THEY ARE NOT IN USE.
When using the tool station, remove the punch and die.
As with all functions on this machine, SAFETY GLASSES ARE REQUIRED when using optional tools
of any type.
Each self contained tool has its own stroke and tonnage requirements. This section will over the
operation and location of each tool. On the following page, there is a graphical illustration of the
available tonnage at locations along the upper arm.
SEE FIGURE 18 BELOW.
This graph will be helpful in setting up various Scotchman or custom tooling.
7.0 OPTIONAL TOOLS

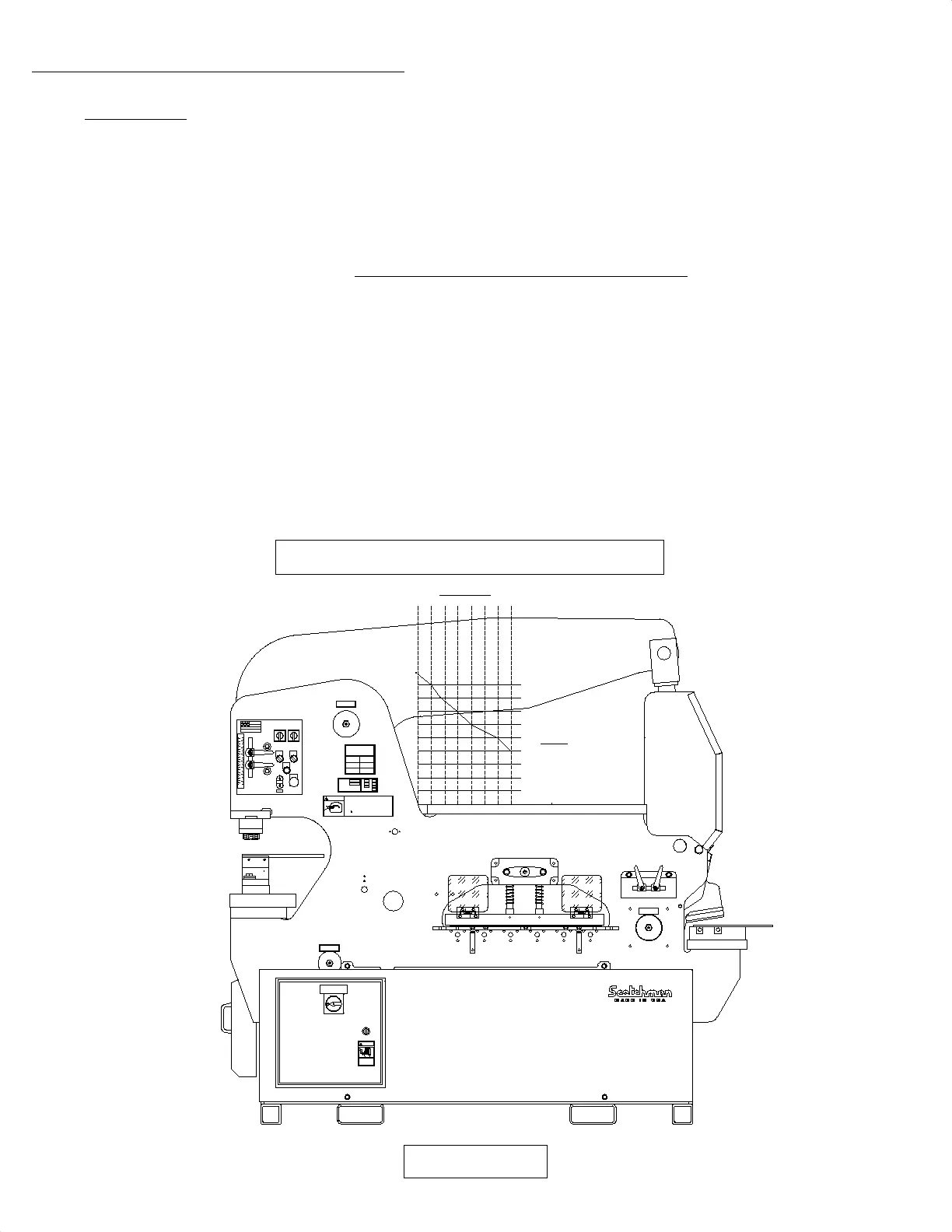

TOOL TABLE - AVAILABLE TONNAGE
