Scotchman DO-150-24M - Page 98

SEE SECTION 9.2A:
PUNCH STRAPS,
PUNCH RAM
AND GUIDE
for information on these
punch related parts.
080191
080210
243101
80195
80196

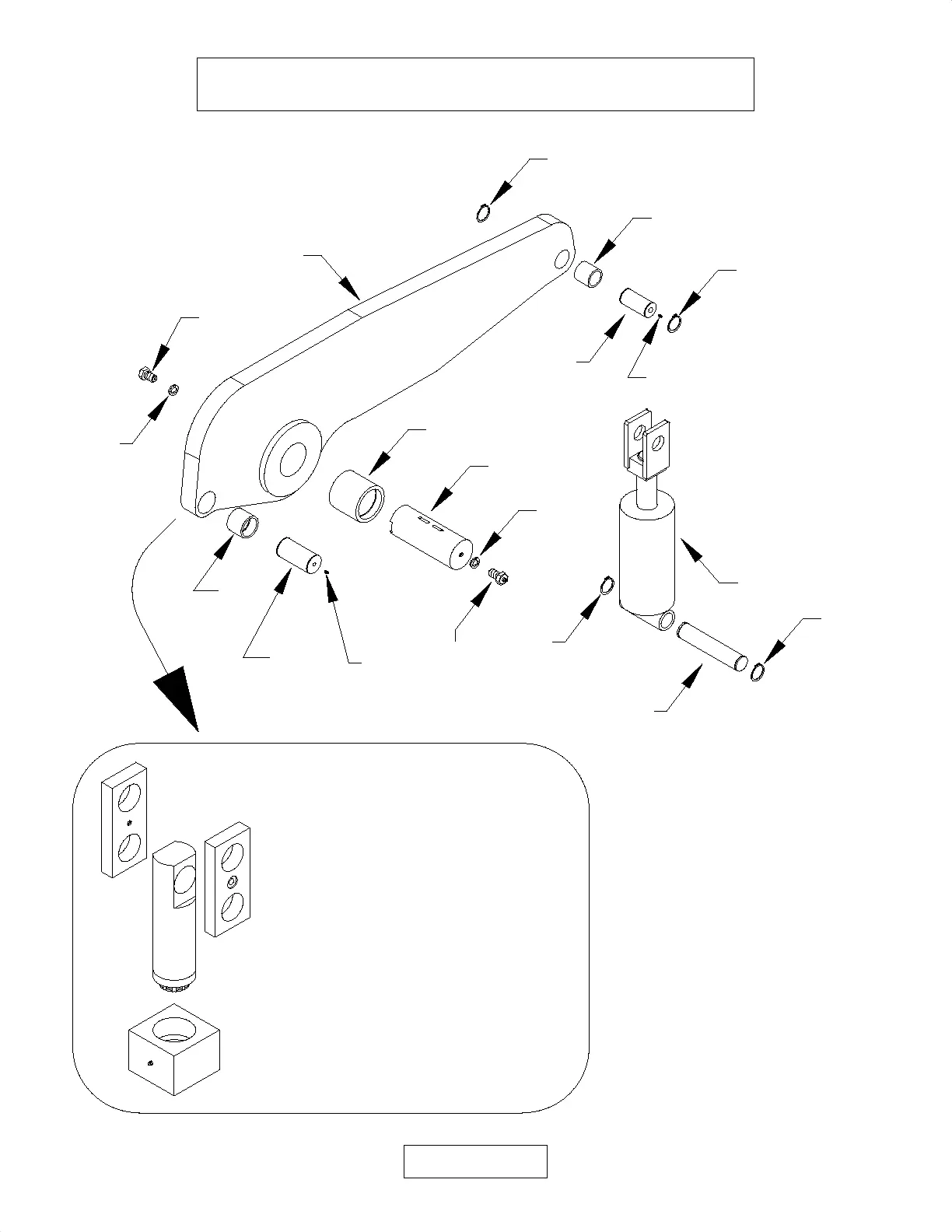

DO-150 UPPER ARM ASSEMBLY
PAGE 97
FIGURE 39
033131
12070
33205
80200
080169
015134
006190
016063
016063
80155
2
3
4
4
6
4
4
7
8
12
11
13
080174
Grease Bolt
201610
243101
212016
9
10
016620
016620
1
243101
080174
Grease Bolt
201610
243101
212016
9
10
5
243101
13
034300 - 150 cyl.
004185
034310 - assy.
