SCOTT DRX 2002 User Manual

GB - 9

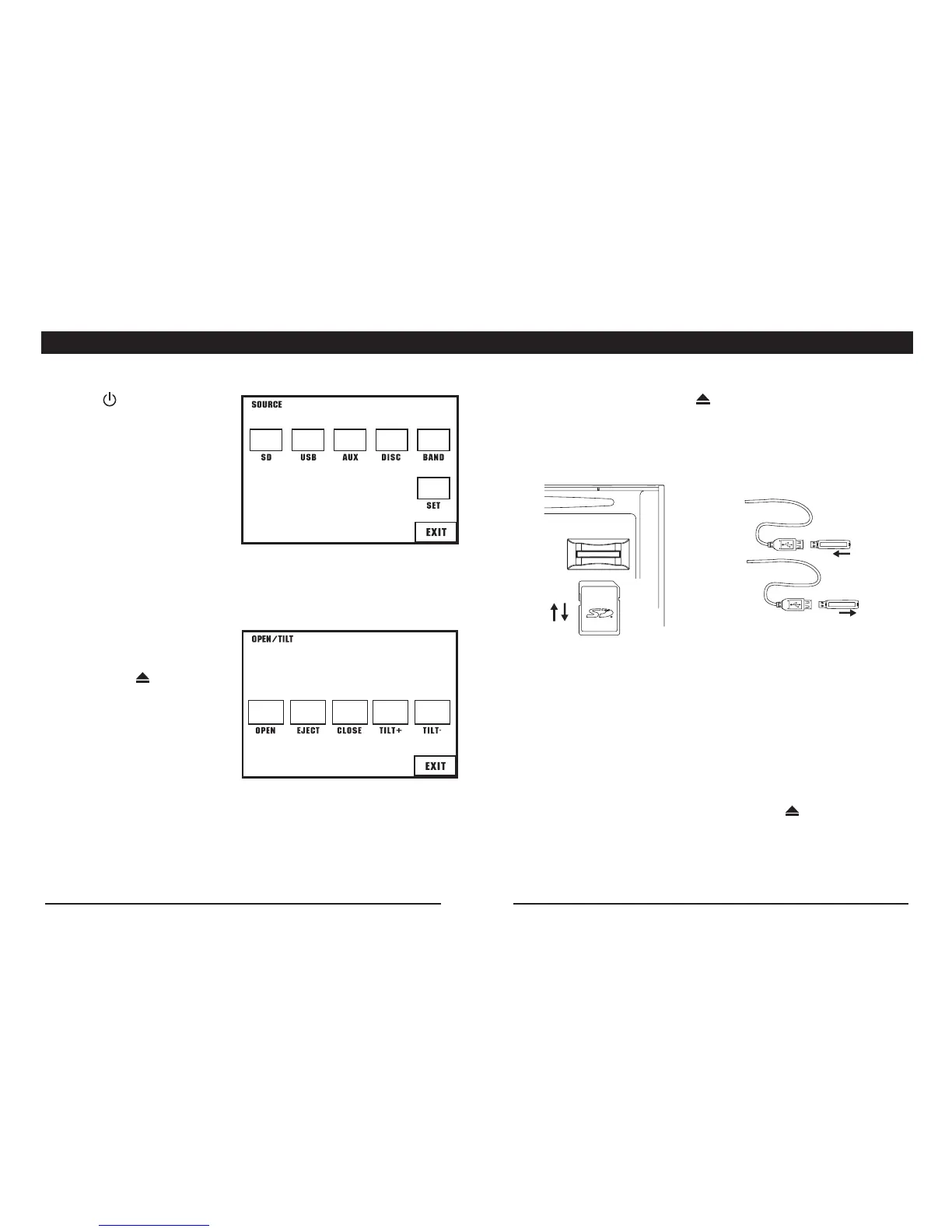

BAsIC oPeRAtIon
Source Select
Press the button to turn on
the unit. Then press the MODE
button on the remote control to
enter the source menu.
On the source menu:
Touch the corresponding icon to
access the desired source.
Touch th e “ EXIT” button to
return to the previous menu.
On the unit panel:
Press the SRC button to select the desired source.
Panel Control
Hold down the button on the
panel to display the [OPEN/
TILT] menu.
Touch the panel to carry out the
desired operations.
Loading a disc or an SD/MMC card
Toopenthepanelrst,pressthe button on the panel. Insert a disc
with label side facing up or an SD/MMC card into the corresponding slot.
When a disc is inserted, the panel will close automatically.
Note: You can control the panel using the touch panel control, refer to
previous section: “Panel Control”.
Inserting a USB device
Connect your USB device to the USB cable which you placed in the
dashboard or glove box during installation of the car radio.
Notes:
1. When connecting a USB device or inserting an SD/MMC card, the
unitwillreadthelesautomatically.
2. If more than one source is available, refer to the previous section –
“Source Select” to select the source of your choice.
3. To eject the disc, open the panel and press the button.
4. ToremovethecardorUSBdevice,youshouldrstselectanother
source, in order to avoid damaging the card or USB device.

SCOTT DRX 2002 Specifications

Power

power supply	12V DC (11V-16V allowable)
music power output	40W x 4
RMS power output	25W x 4

Display

display size	7” (diagonal), 16:9
resolution	480 x 234
view angle	130 ˚ (Horizontal), 105 ˚ (Vertical)

Radio

FM frequency range	87.5 – 108.0MHz
FM IF range	10.7MHz
FM usable sensitivity	8 dBμ

Weight and Dimensions

weight	3 Kg
dimensions	178 x 100 x 164mm
