SCOTT DRX 2002 User Manual

GB - 7

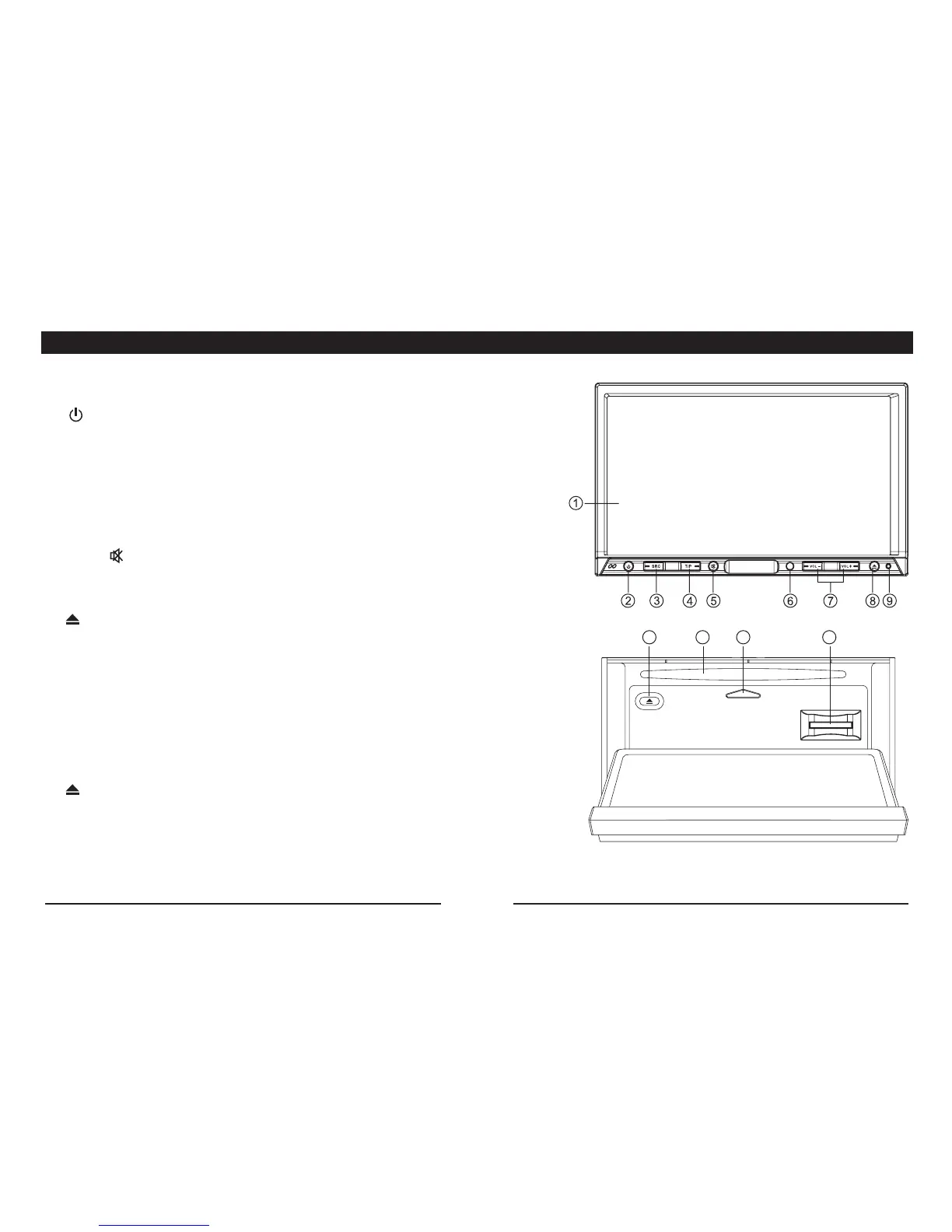

PAneL ContRoL
10 11 1312
Front Panel
1. Touch panel TFT LCD display
2. button: Turn the unit on/off
3. SRC (SOURCE) button: Select the following sources:
- Radio (“BAND”)
- “DISC” (when a disc is inserted)
- “USB” (when a USB device is connected)
- SD/MMC card (“SD”) (when an SD/MMC card is inserted)
- Aux in (“AUX”)
4. T/P(TA/PTY)button-PressbrieytoturntheRDSTA(trafcannouncement)on/off.
Press for more than 2 seconds to enter RDS PTY mode (select a program type).
5. MUTE ( )button-Pressbrieytoturnoffthesound.Pressformorethan2seconds
to switch off the LCD display.
6. Remote control sensor: Receive the infrared signal from the remote control.
7. VOL +/- button: Adjust the volume level.
8. button:-Pressbrieytoopen/closethepanel
- Press for more than 2 seconds to enter the panel menu.
> Open the panel
> Eject the disc.
> Close the panel
> Adjust the panel angle (“TILT+/-“)
9. Reset button: Use a pointed object such as a pen to press this button in order to reset
the unit.
Front view of car radio after sliding down the front panel
10. button: Eject disc.
11. Disc slot: Insert disc.
12. Panel status indicator: This indicator will light up when you slide the panel down.
13. SD/MMC card slot.

SCOTT DRX 2002 Specifications

Power

power supply	12V DC (11V-16V allowable)
music power output	40W x 4
RMS power output	25W x 4

Display

display size	7” (diagonal), 16:9
resolution	480 x 234
view angle	130 ˚ (Horizontal), 105 ˚ (Vertical)

Radio

FM frequency range	87.5 – 108.0MHz
FM IF range	10.7MHz
FM usable sensitivity	8 dBμ

Weight and Dimensions

weight	3 Kg
dimensions	178 x 100 x 164mm
