SCOTT DRX 2002 User Manual

GB - 18

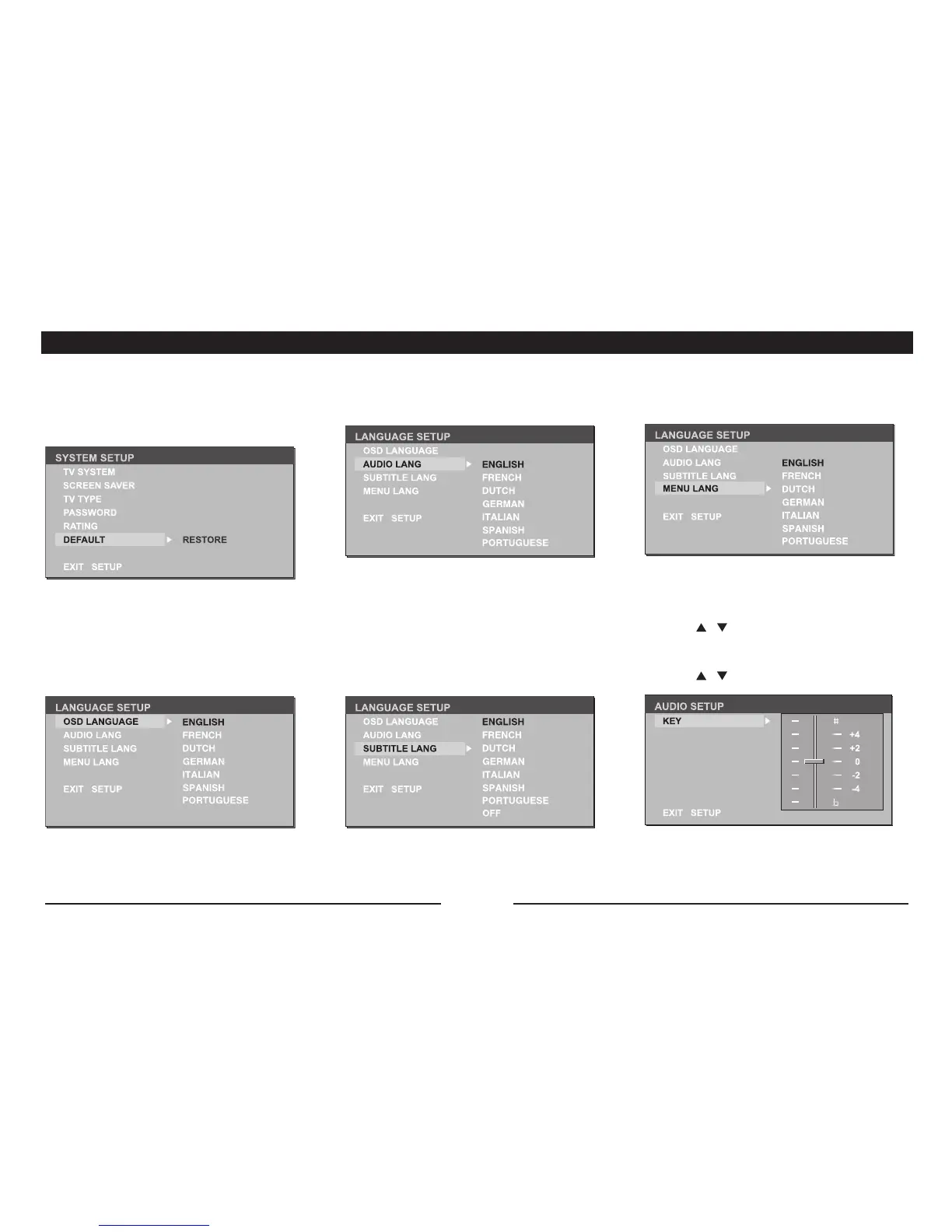

SYSTEM SETUP
DEFAULT
Restore the factory default settings.
LANGUAGE SETUP
OSD LANGUAGE
Select the On Screen Display language.
DVD setUP
AUDIO LANGUAGE
Select the default audio language (if several
languages are available on the DVD).
SUBTITLE LANGUAGE
Select the default subtitle language (if several
languages are available on the DVD).
MENU LANGUAGE
Select the default menu language (if several
languages are available on the DVD).
AUDIO SETUP
Use the / buttons to adjust the setting.
KEY
Use the / buttons to adjust the tone.

SCOTT DRX 2002 Specifications

Power

power supply	12V DC (11V-16V allowable)
music power output	40W x 4
RMS power output	25W x 4

Display

display size	7” (diagonal), 16:9
resolution	480 x 234
view angle	130 ˚ (Horizontal), 105 ˚ (Vertical)

Radio

FM frequency range	87.5 – 108.0MHz
FM IF range	10.7MHz
FM usable sensitivity	8 dBμ

Weight and Dimensions

weight	3 Kg
dimensions	178 x 100 x 164mm
