SCOTT DRX 2002 User Manual

GB - 4

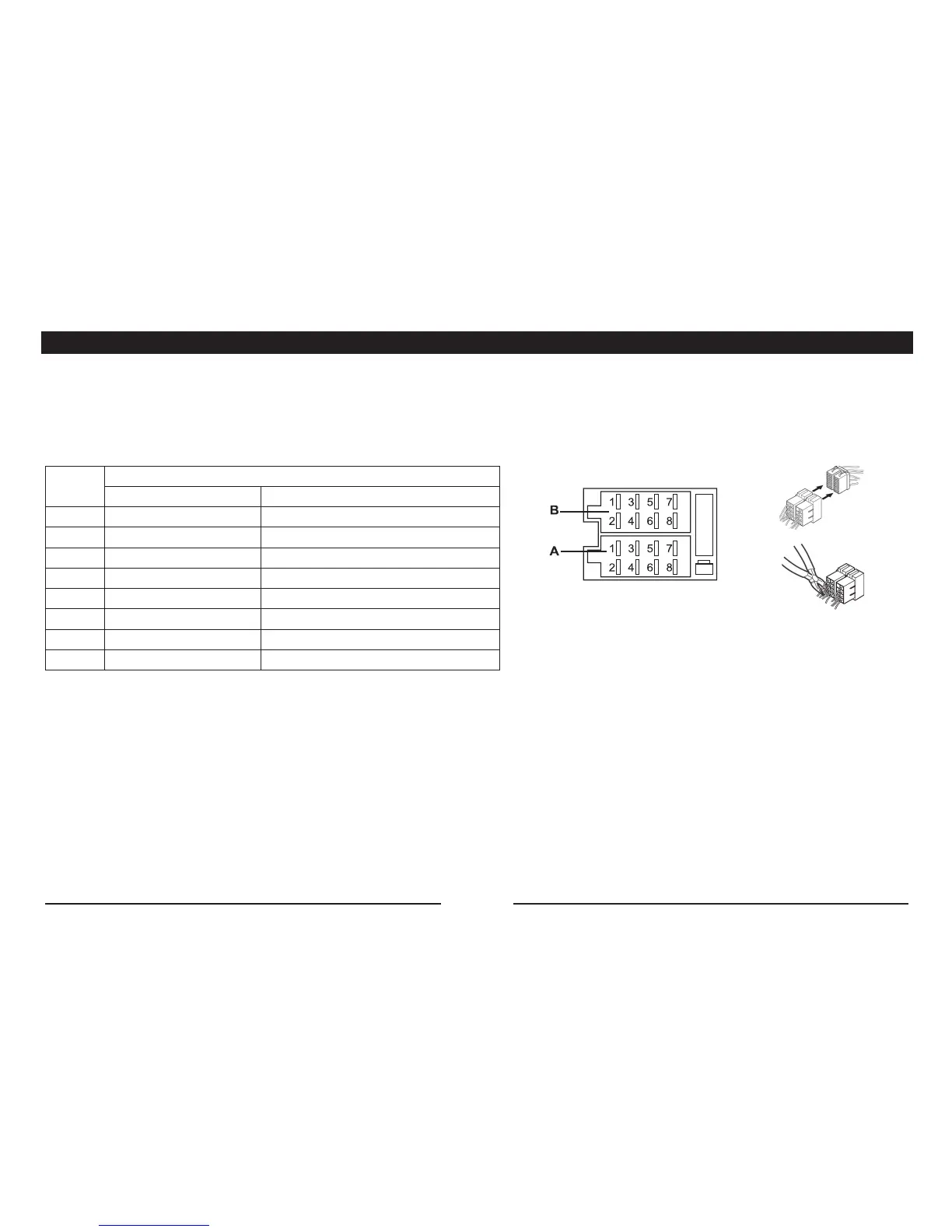

Connections
ManyvehiclesarealreadyttedwithISOconnectorsbehindthedashboard,includingalltheelectricalcablingforinstallingacarradio.Insuchcases,
theconnectionsttedtothevehiclecanbedirectlypluggedintothecar radioconnectors.Ifyourcarisnotalreadyttedwith theseconnectors,we
strongly advise you to obtain an ISO connector from a specialist shop or from your car dealership. Once you have obtained the connector, you will only
need to connect your loudspeakers and the power supply to the ISO cable following the connection instructions below.
InstALLAtIon
Location
Function
Connector A Connector B
1 Rear Right (+) - Purple
2 Rear Right (-) - Purple with Black Stripe
3 Front Right (+) - Gray
4 Battery 12V(+)/yellow Front Right (-) - Gray with Black Stripe
5 Antenna/Amp control/blue Front Left(+) - White
6 Front Left(-) - White with Black Stripe
7 ACC+/red Rear Left (+) - Green
8 Ground/black Rear Left (-) - Green with Black Stripe
Note: Incorrect wiring or operation will void the warranty of this unit.
The manufacturer cannot be held responsible for any malfunctions
if the connections are not made properly.

SCOTT DRX 2002 Specifications

Power

power supply	12V DC (11V-16V allowable)
music power output	40W x 4
RMS power output	25W x 4

Display

display size	7” (diagonal), 16:9
resolution	480 x 234
view angle	130 ˚ (Horizontal), 105 ˚ (Vertical)

Radio

FM frequency range	87.5 – 108.0MHz
FM IF range	10.7MHz
FM usable sensitivity	8 dBμ

Weight and Dimensions

weight	3 Kg
dimensions	178 x 100 x 164mm
