5. Thread the nger screw clockwise onto the top of the battery. Turn the screw
until it is snug. DO NOT OVER TIGHTEN. DO NOT USE ANY TOOL TO TIGHTEN
THE FINGER SCREW. Over tightening may damage the threads or make battery
changing more difcult. See FIGURE 6.
6. Test the operation of the camera according to the USE OF CAMERA section of this
instruction.
NOTE
THE CAMERA WILL NOT OPERATE IF THE BATTERY IS NOT PROPERLY INSTALLED.
IF THE CAMERA WILL NOT OPERATE OR IF THE BATTERY WILL NOT FIT AS
DESCRIBED, VERIFY THAT THE BATTERY IS PROPERLY ORIENTED AND IS NOT
DAMAGED.

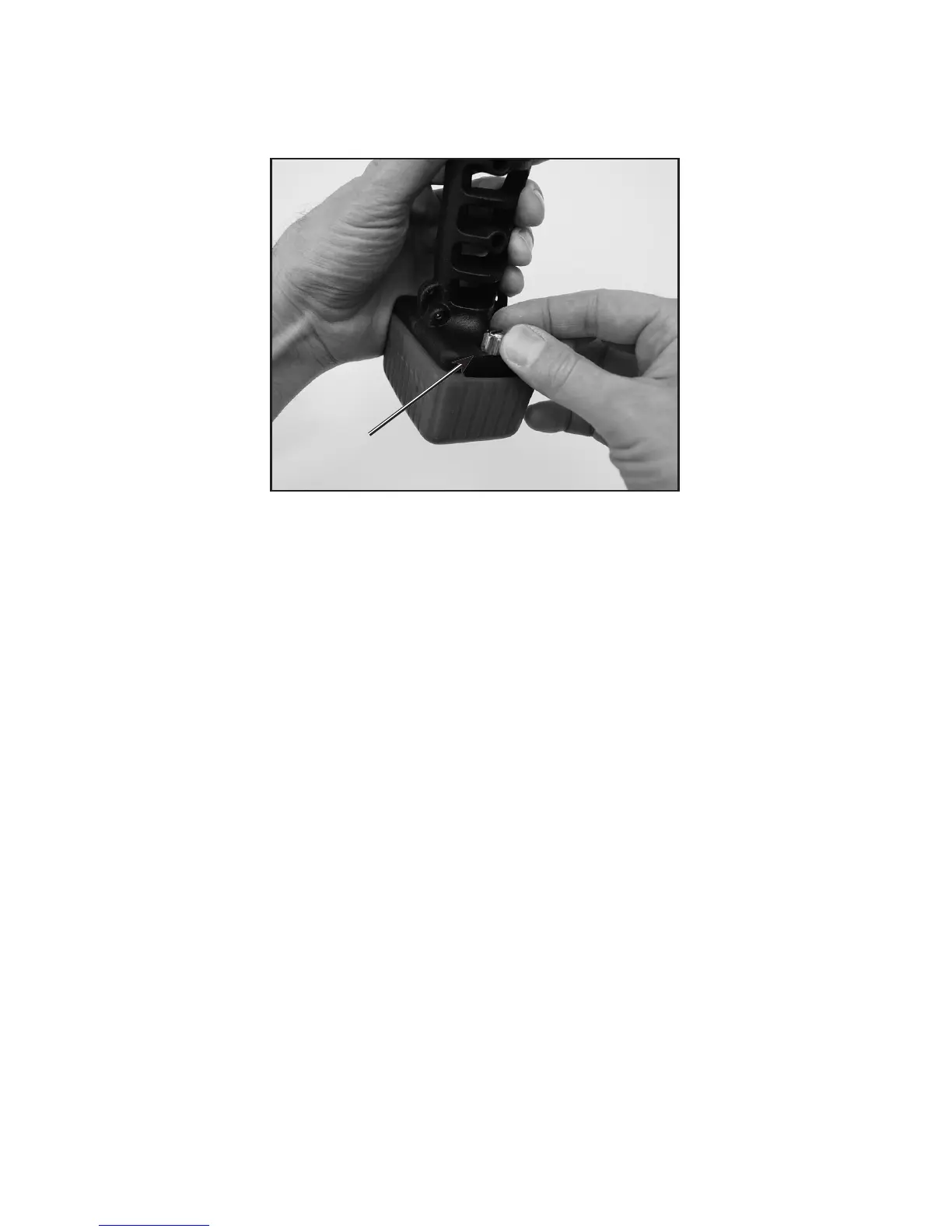

FIGURE 6
FINGER TIGHT
ONLY
