BATTERY INSTALLATION
A single specially designed Rechargeable Battery Pack is used for operation of the
EAGLE ATTACK Thermal Imaging Camera. Install the battery as follows:
1. Loosen the nger screw on the bottom of the camera handle by turning it counter-
clockwise.
2. When the screw is loose, angle the battery away from the handle and disengage
the clip on the battery from the slotted bracket on the handle.
3. Verify that Rechargeable Battery Pack is fully charged. See USE OF THE BATTERY
CHARGER section of this instruction.
4. The Rechargeable Battery Pack will only t into the camera handle one way.
Hook the Clip on the battery into the slotted Bracket on the camera handle and
seat the battery against the handle as shown in FIGURE 5. DO NOT FORCE THE
BATTERY IN. If improperly oriented, the battery will not t onto the camera.

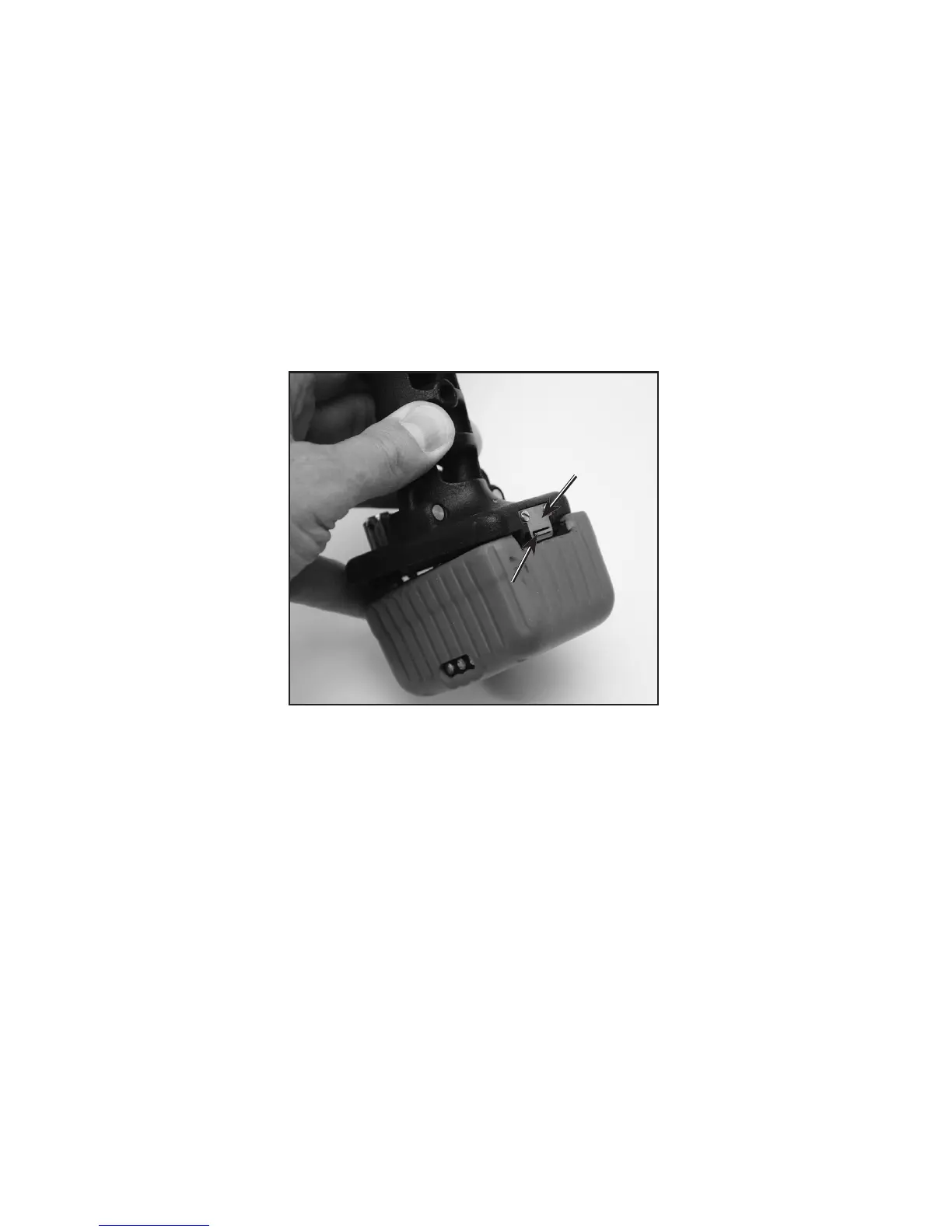

FIGURE 5
SLOTTED
BRACKET ON
CAMERA
HANDLE
CLIP ON
BATTERY
